The fully automatic lab glassware washer is designed for cleaning various laboratory glassware (beakers, volumetric flasks, test tubes, sample vials, etc.) as well as plastic or rubberware and is suitable for laboratories across all industries. In modern laboratories, the cleaning methods and usage of glassware must be effective and reliable without leaving any residues. Machine cleaning ensures consistent cleaning results, reduces cleaning costs, lessens environmental pollution, improves cleaning efficiency, and prevents occupational hazards and potential biological hazards.

Lab Glassware Washer Feature:

Cleaning Performance:
● Residues after cleaning meet analytical-grade cleanliness at the ppb level (Residue ≤ 0.000002% / Undetected), fully satisfying the detection limit requirements of various specific testing methods in different industries.
● Conductivity endpoint determination: Ensuring higher purity standards
Cleaning Capability:

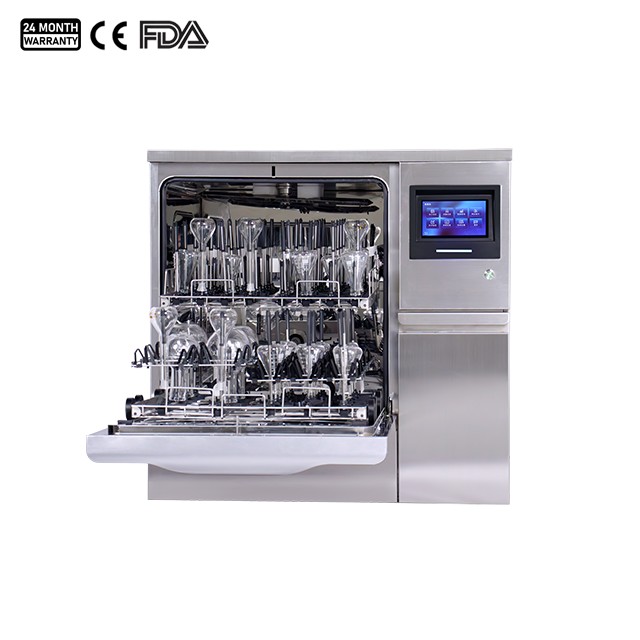

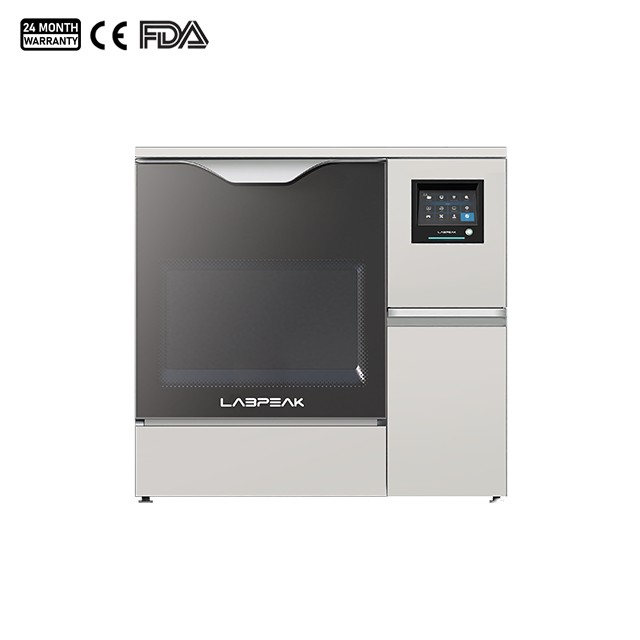

●WDL-P180: Internal chamber volume of 180 L, accommodates 2 basket racks. Capable of cleaning 128×50 mL volumetric flasks/ 300 sample vials/ 196 test tubes per cycle. Embedded Model: Volume under 1 m³

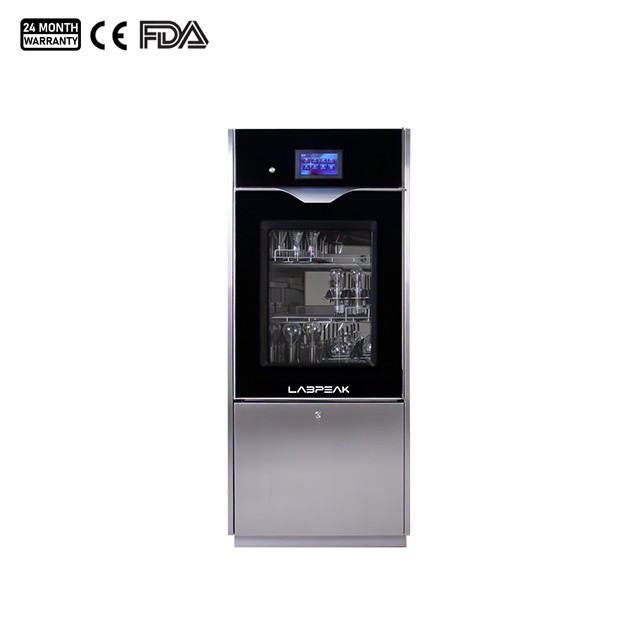

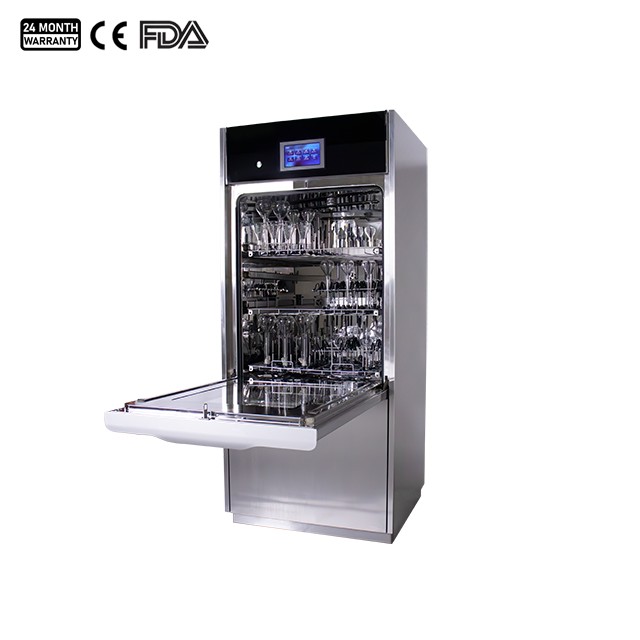

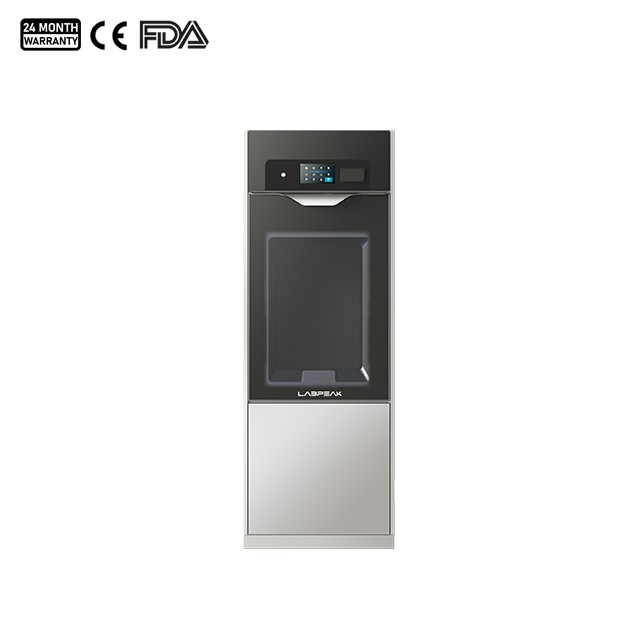

●WDL-P360: Internal chamber volume of 360 L; accommodates up to 4 basket racks. Capable of cleaning 192×100mL volumetric flasks/1,200 sample vials/476 test tubes per cycle.
Audit and Compliance：
End-to-end data is fully retained, supporting multi-level operational access controls and meeting audit trail requirements, thereby facilitating our clients’ compliance audits.

Lab Glassware Washer Specifications:

Model		WDL-P180	WDL-P360
Capacity (L)		180	360
Display		7-inch LCD touch screen
Standard Program		4+30 units
Self-defined Program		200 units
Storage		One hundred thousand pieces of data
Permission Management System		Three levels
Drying	Drying System	Double spray and heat exchange system with air inlet HEPA filter
	Drying Time Range	0–180 min
	Drying Temp Range	RT to 120°C
Water Inlet	Drying Method	Hot air injection via sprinkler (Circulation of hot air is not less than 140 m³/h)
	Quantity	3+1
	Length	Standard: 2 m (Customizable)
Water Pump	Material	PVC
Water Pump	Flow Rate	0–600 L/min	0–900 L/min
Pipeline Pressure Monitoring		Yes
Structure Material	External	304 stainless steel
	Cleaning Chamber	316L
	Door	Freestanding, 1 glazed hinged door
	Caster	No
Cleaning Rack		2 layer	4 layer
Function		Reagent Storage Cabinet, Conductivity Monitoring, Full-Process Data Recording;
		Stable startup, shutdown and continuous operation 24/7 under extreme conditions;
		Printer (optional);
Operating Temperature		-20℃ to 40 ℃, Three-phase five-wire system
Power Supply		220/380 V, 50/60 Hz
Air Heating Consumption (kW)		6	9
Consumption (kW)		7	11
External Size (W×D×H)(mm)		900×710×875	785×765×1800
Shipping Size (W×D×H)(mm)		998×857×1010	920×890×1920
N.W./G.W. (kg)		159/188.5	265/308

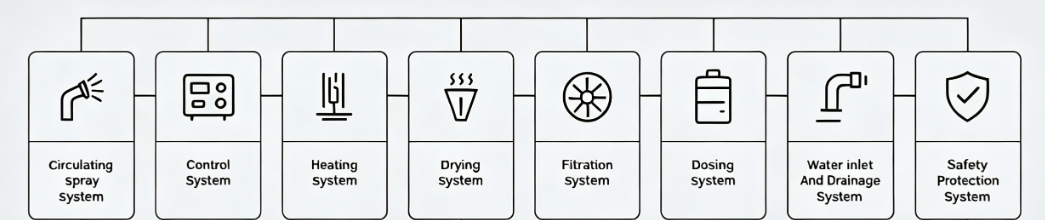

Lab glassware washers consist of 8 major systems:

Control System:

● Microcomputer control system with a 7-inch touchscreen.
● Cleaning steps and parameters can be edited and adjusted as needed.
● 20 preset quick-cleaning programs and over 200 customizable cleaning programs.

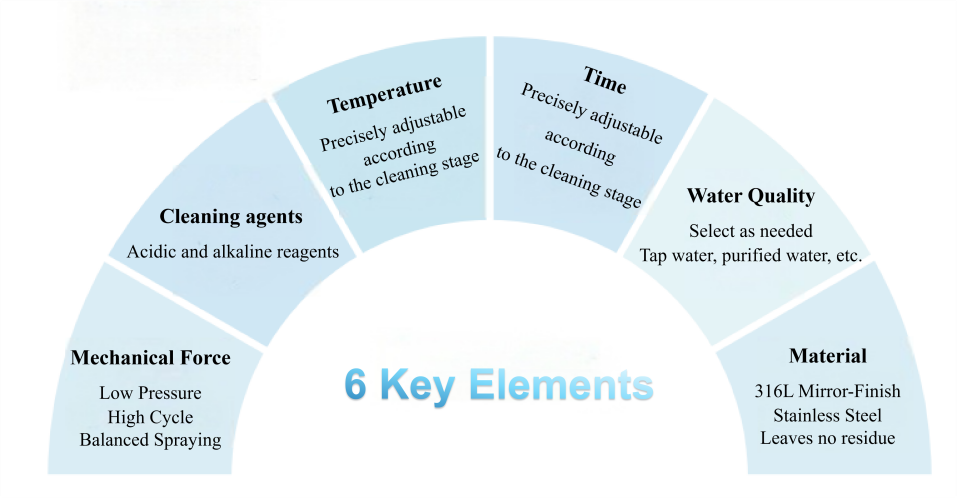

Precise and Effective Cleaning:

6 key cleaning elements can be optimized to suit varying cleaning requirements, enabling the customization of precise cleaning processes.

Heating System:

● Temperature is controllable and adjustable, with 2 built-in PT1000 sensors that cross-calibrate to ensure precise temperature control.
● Maximum temperature 93°C, with an adjustment precision of 0.1°C, enabling efficient disinfection and the decomposition of residues.

Drying System:

● Equipped with an H14-grade HEPA high-efficiency filtration system.
● Drying system allows for adjustable temperature and duration settings, with an airflow capacity reaching 145 m³/h;
● PTC heating components with a thermal efficiency of up to 99% and a continuous service life of up to 6,000 h.

Water Inlet and Drainage System

●3+1 channel water inlet system, greatly improving water inlet efficiency and effectively shortening cleaning time.
● Customizable double drainage system to realize classified discharge of contaminated water and ordinary water.
●With drainage cooling function to achieve low-temperature discharge, preventing pipeline damage and being environmentally friendly.

Filtration System:

4-layer filtration from coarse to fine with a filtration precision of 200 meshes, ensuring clean water quality and protecting cleaning ware and equipment components from damage.

Dosing System:

● Built-in cleaning agent distribution pump, realizing automatic dispensing of cleaning agents through program control.
● Specialized machine-wash cleaning agents are adopted with transparent components, low foam, phosphorus-free and environmentally friendly.

Safety Protection System:

● Real-time monitoring functions for voltage, water pressure, air pressure, water temperature, air temperature, water leakage, electrical leakage, water shortage, phase loss, fluid depletion, abnormal water levels, abnormal condensate levels, detergent consumption, and more.
● Overload, overheating, and dry-burning protection measures, along with comprehensive, full-process fault diagnosis and timely alarm capabilities.
● Anti-scald and electric shock prevention functions and is equipped with steam condensation technology.

Standard Cleaning Accessory:

WDL-P180: LCR-180-01+IUB-180-01+PSR-180-8+S101/1+PSR-180-18+SWB-51
WDL-P360 (2 Racks): LCR-360-01 + IUB-360-01 + SR-360-8 + PSR-360-18/1 + PSR-360-32/1 + SWB-51
WDL-P360 (3 Racks): LCR-360-01 + IUB-360-01 + SR-360-8 + PSR-360-18/1×2 + PSR-360-32/1×2 + SWB-51
If you do not have a pure water system, we recommend equipping an additional external pure water module.

WHY Labpeak

36 Months Limited Warranty
CE & FDA Standards
1-2 Days Handling and 7-30 Days Shipping

Automatic Lab Glassware Washer
