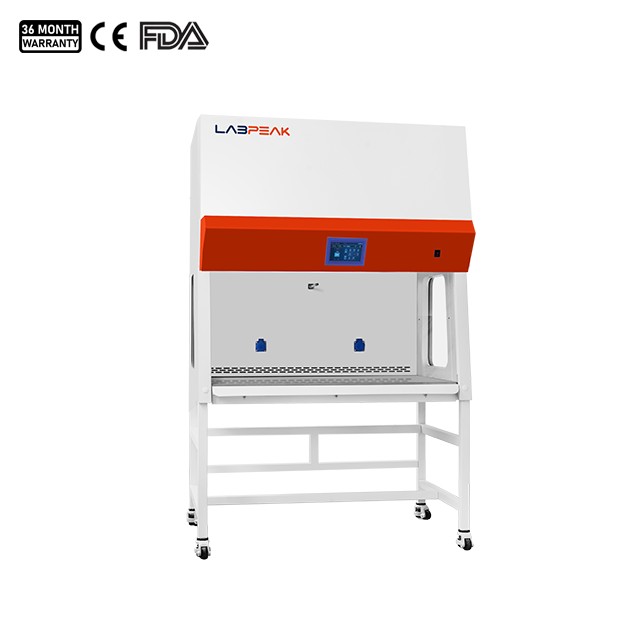

The biosafety cabinet class I with advanced ergonomic design excel in user comfort and functionality.
A Class I biological safety cabinet is designed for use in biosafety and general laboratories. It is typically used for handling low-risk biological materials where product protection is not required. The cabinet provides protection for the operator and the surrounding environment.
| Model | BSC-I-LP800H | BSC-I-LP1100H | BSC-I-LP1300H | BSC-I-LP1500H | BSC-I-LP1800H | |
| External Size (W×D×H)(mm) | 800×760×1880 | 1100×760×1880 | 1300×760×1880 | 1500×760×1880 | 1800×760×1880 | |
| Internal Size (W×D×H)(mm) | 700×630×550 | 1000×630×550 | 1200×630×550 | 1400×630×550 | 1700×630×550 | |
| Work Surface Height | 730 mm | |||||
| Max Opening | 350 mm | |||||
| Control System | Display | 7”LCD touch screen | ||||
| Interlock | Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height) | |||||
| Airflow System | Airflow Velocity | 0.3–0.5m/s, speed adjustable | ||||
| Air Volume | 832 m³/h (490CFM) | 1188 m³/h (699CFM) | 1426 m³/h (839CFM) | 1663 m³/h (979CFM) | 2020 m³/h (1189CFM) | |
| Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable, Filtration efficiency: G3 | ||||
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3 μm | |||||
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | |||||
| Partial air circulation | Perforations at the back wall of the work zone and negative pressure channel which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |||||
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating | ||||
| Work Surface | 304 Stainless Steel | |||||
| Front Window | Automatic Motorized door, tempered glass, Thickness: 5mm | |||||
| Side Window | 5 mm UV resistant tempered glass | |||||
| Electrical System | UV Lamp | 8 W×1 | 30 W×1 | 40 W×1 | ||
| Emission of 253.7 nanometers for best sterilization effect | ||||||
| LED Lamp | 8 W×1 | 10 W×1 | 20 W×1 | |||
| Max.Consumption | 350 W | 360 W | 370 W | |||
| Not include socket loading power consumption | ||||||
| Power Supply | AC 220 V±10%, 50/60 HZ; 110 V±10%, 60 Hz | |||||
| Illumination | ≥600 Lux | |||||
| Sound Emission | ≤64 dB(A) | |||||
| Standard Accessory | 1.Air Velocity Sensor×1; | |||||
| 2.Pre-Filter×1; | ||||||
| 3.HEPA Filter×1; | ||||||
| 4.Waterproof Socket×2; | ||||||
| 5.LED Lamp×1; | ||||||
| 6.UV Lamp×1; 7.Base Stand. | ||||||
| Optional Accessory | 1.Foot Switch; | |||||
| 2.Water Tap; | ||||||
| 3.Gas Tap; | ||||||
| 4.Differential Pressure Sensor; | ||||||
| 5.Manually Adjustable Base Stand; | ||||||
| 6.Upgraded LED Lamp; | ||||||
| 7.IV Bar with Hooks. | ||||||
| G.W.t (kg) | 190 | 220 | 250 | 280 | 330 | |
| Shipping Size (W×D×H)(mm) | 950×1060×1630 | 1250×1060×1630 | 1450×1060×1630 | 1650×1060×1630 | 1950×1060×1630 | |
| Shipping Volume (m³) | 1.7 | 2.2 | 2.5 | 2.9 | 3.4 | |
 |
 |
 |
 |

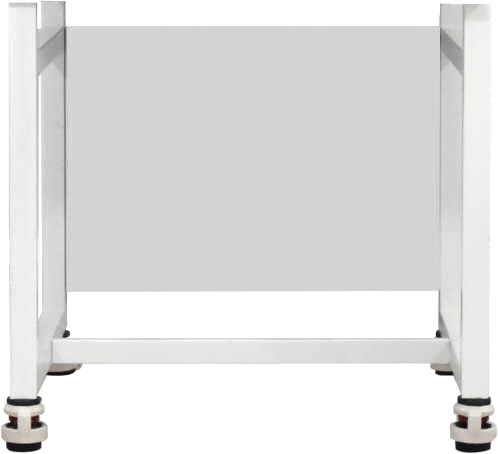

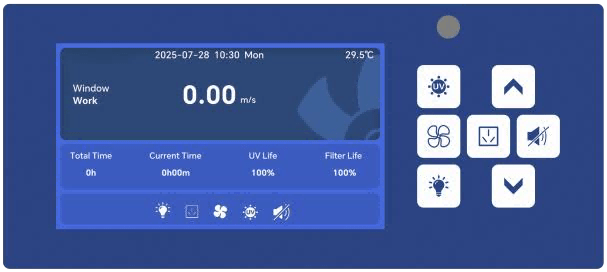

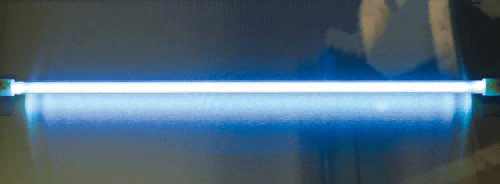

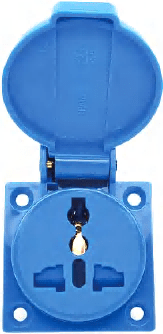

| LCD Display | UV Lamp | Base stand (Optional) | Waterproof Socket (IP54) |
A biological safety cabinet (BSC) serves as a primary engineering safeguard, shielding personnel from biohazardous or infectious agents while also ensuring quality control of the material being handled by filtering both incoming and outgoing air.
What is a class I biosafety cabinet?
A Class I biosafety cabinet is a ventilated enclosure ensuring both personnel and environmental safety. It features an open front with inward airflow for personnel protection and HEPA-filtered exhaust air for environmental protection.
Difference between Class I and Class II safety cabinets?
Biosafety cabinets fall into three classes: I, II, and III. Class I offers protection for the user and surrounding environment, but not for the sample being handled. Class II provides protection for the user, environment, and sample, and is further categorized into four types: A1, A2, B1, and B2.
