The benchtop freeze dryer offers three-level account privilege management for secure, decentralized operation.

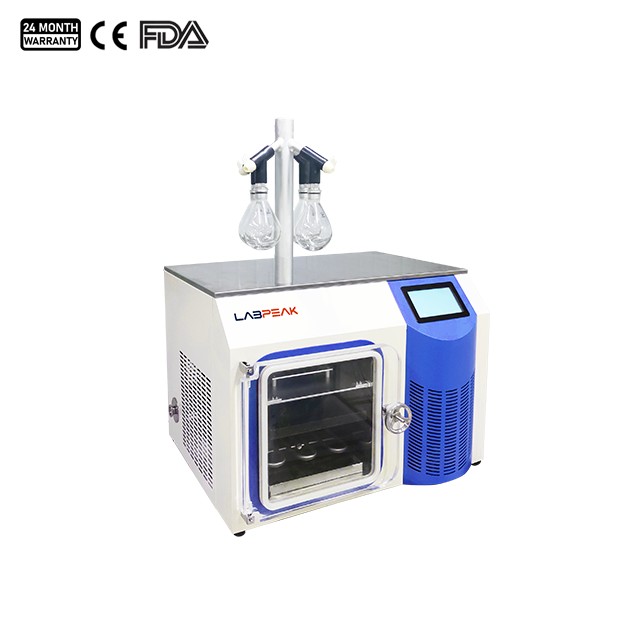

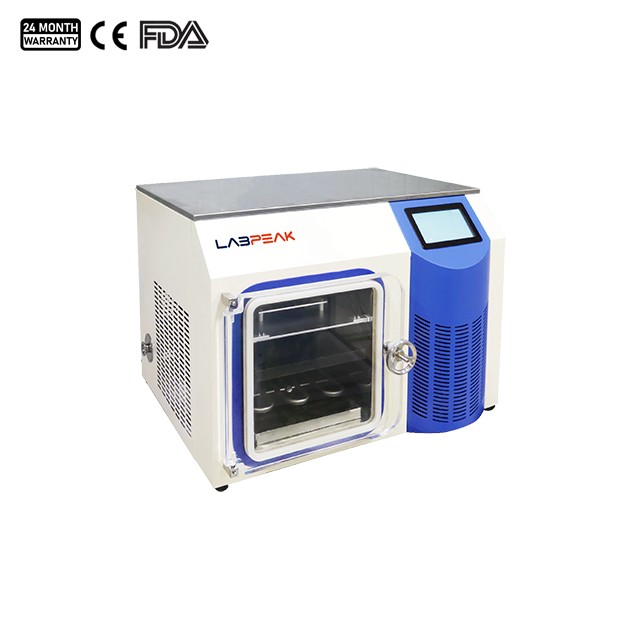

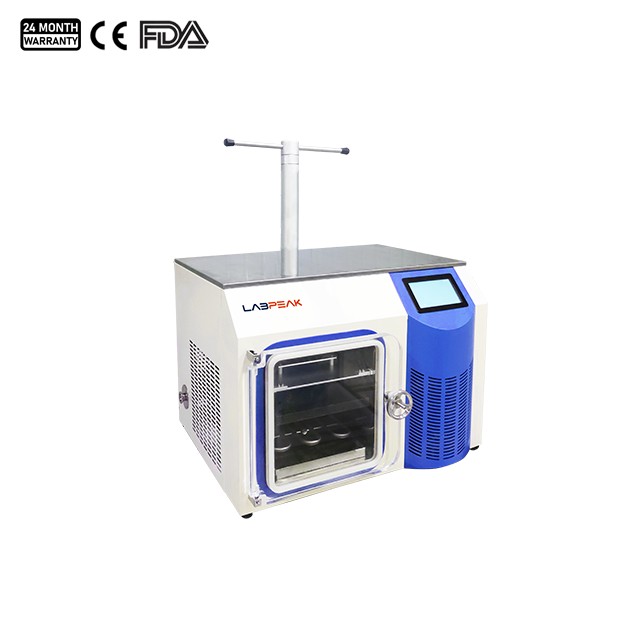

| Model | FDL-P10ES | FDL-P10EP | FDL-P10ET | FDL-P10EPT | FD-20ES | FDL-P20EP | |
| Cold Trap Temperature | -88 ℃ | ||||||
| Shelf Temperature | -60 ℃ to +70 ℃ | ||||||
| Shelf Temperature Accuracy | < ±2 ℃ | ||||||
| Ultimate Vacuum Degree | ≤0.1 Pa (No-load, slightly varies with different vacuum pumps) | ||||||
| Vacuum Display Accuracy | 0.01 Pa | ||||||
| Pumping Speed | ≤ 15 min (Atmospheric pressure to 10 Pa) | ||||||
| Freeze-Drying Area (m²) | 0.1 | 0.2 | |||||
| Maximum Ice Trapping Capacity | 4 kg | ||||||
| Water Trapping Efficiency | 3 kg / 24 h | ||||||
| Capacity | 40 L | ||||||
| Cold Trap Capacity | 11 L | ||||||
| Vial Qty. | Ø22 mm | 216 | 432 | ||||
| Ø16 mm | 400 | 800 | |||||
| Ø12 mm | 726 | 1452 | |||||
| Shelf Dimension (mm) | 270×400 (1 layer) | 270×400 (2 layers) | |||||
| Layer Spacing (mm) | 150 | 120 | 60 | ||||
| External Freeze-Drying Bottles | / | 4 | / | 4 | / | 4 | |
| Overall Size (W×D×H)(mm) | 820×695×600 | 820×695×995 | 820×695×875 | 820×695×1075 | 820×695×600 | 820×695×995 | |
| Shipping Size (W×D×H)(mm) | 940×850×990 | 940×840×1230 | 940×850×990 | 940×840×1230 | |||
| (Freeze Dryer and Pump) | 610×230×310 | 610×230×310 | 610×230×310 | 610×230×310 | |||
| G.W. (kg) | 180 | 210 | 180 | 210 | |||
