- Model : FMH-DL-LP1000; FMH-DL-LP1200
- Max.Opening : 650 mm
- Operation Surface Height : 690 mm
- Airflow Velocity : 0.4-0.6m/s, speed adjustable
- Main Body : Electro-galvanized steel with antimicrobial Powder Coating
- Work Surface : 304 Stainless Steel, Max.loading of worksurface: 70 kg

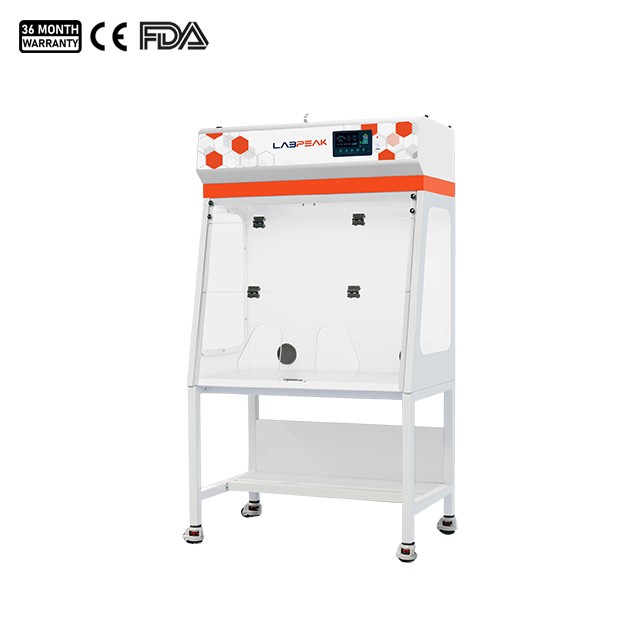

Ductless Fume Hood, TouchScreen
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Ductless Fume Hood Feature:

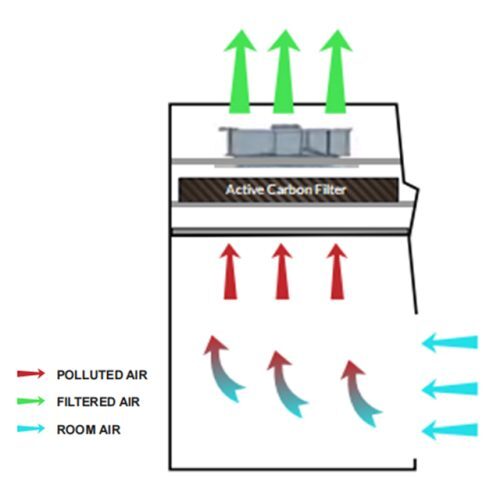

- Active carbon filter included for effective adsorption of harmful gases and particles, ensuring operator and environmental safety.
- 7-inch color LCD touchscreen displaying air velocity, VOC level, temperature, humidity, and filter status.
- Real-time monitoring with alarm system for airflow and filter saturation.
- Low-noise operation using a high-quality DC centrifugal blower.
- Three-sided transparent acrylic window for clear observation.
- Optional LED lighting with Ra98 color rendering and RG0 blue-light protection.
Ductless Fume Hood Specification:
| Model | FMH-DL-LP1000 | FMH-DL-LP1200 | |
| External Size (WxDxH)(mm) | 1000×620×1800 | 1200×620×1800 | |
| Internal Size (WxDxH)(mm) | 980×540×775 | 1180×540×775 | |
| Max.Opening | 650 mm | ||
| Operation Surface Height | 690 mm | ||
| Control System | 7-inch color touch screen,real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc | ||
| Airflow System | Airflow Velocity | 0.4-0.6m/s, speed adjustable | |
| Air filtration System | Filter | 1pcs Pre-filter, Polyester fiber, washable | 2pcs Pre-filter, Polyester fiber, washable |
| 1pcs Active Carbon filter | 2pcs Active Carbon filter | ||
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating | |
| Work Surface | 304 Stainless Steel, Max.loading of worksurface: 70 kg | ||
| Front Window | Manual acrylic window | ||
| Electrical System | LED Lamp | 16 W×2 | |
| Blower | DC Centrifugal blower, adjustable speed, low noise | ||
| Consumption | 60 W | 120 W | |
| Power Supply | 220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
| Sound Emission | ≤50dB(A) | ||
| Standard Accessory | 1. Base Stand; 2. Active Carbon Filter; 3. Pre-Filter; 4. LED Lamp×2 | ||
| Optional Accessory | 1. Base cabinet; 2. HEPA filter; 3. Chemical filter; 4. Upgraded LED Lamp; 5. Solid Physicochemical Board Work Surface | ||
| Net Weight (kg) | 96 | 113 | |
| Gross Weight (kg) | 138 | 160 | |
| Shipping Size (WxDxH)(mm) | 1160×840×1320 | 1360×840×1320 | |
| Shipping Volume (m³) | 1.3 | 1.5 | |
WHY Labpeak
- 36 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
