- Model: FZL-P86V570
- Capacity: 570 L
- Temperature Range: -40 to -86 °C
- Temperature Display Accuracy: 0.1 °C
- Sensor: PT1000

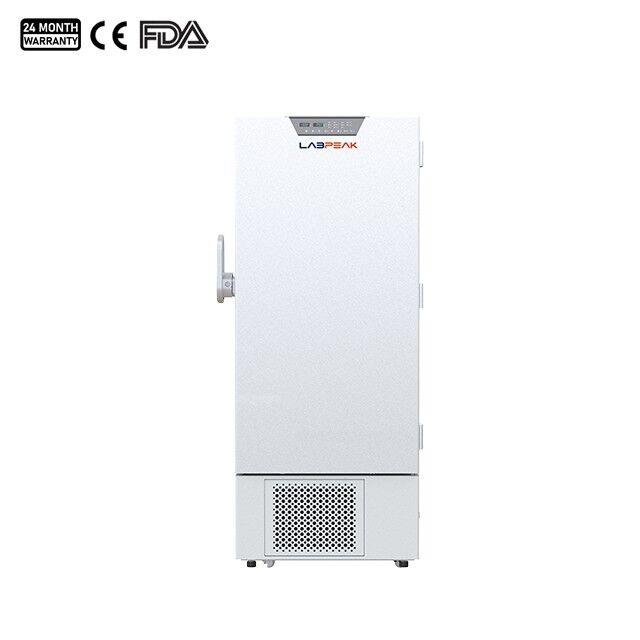

Ultra-Low Temperature Freezer, FZL-PV Series
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Ultra-Low temperature freezer strictly adhering to management guidelines for clinical laboratories and bio-repositories. Designed for the deep cryogenic preservation of biological samples—including viruses, nucleic acids, tissues, cells, blood products, and vaccines. It meets the standardized storage requirements of medical institutions, medical laboratories, bio-repositories and research organizations.
Ultra-Low Temperature Freezer Feature:
- Precise microcomputer temperature control, featuring high-precision 0.1°C settings, ensures stable and controllable internal temperatures, thereby safeguarding sample viability.
- Powered by an eco-friendly hydrocarbon (HC) refrigeration system, the unit is pollution-free and environmentally sound, aligning perfectly with green development initiatives.
- Boasting exceptional thermal insulation, the unit effectively retains cold air, minimizes energy consumption, and maintains a constant internal temperature environment.
- 304 stainless steel interior, antibacterial, corrosion-resistant, and easy to clean, ensuring robust durability and extending the equipment’s service life.
- Comprehensive audible and visual alarm system, paired with a fully sealed backup battery, continues to display temperature and sound alerts even during power outages, providing multi-layered protection for sample safety.
- A wide-voltage design, combined with a power-off memory function, ensures stable equipment operation and offers users greater peace of mind.
- User-friendly design, easy access, and flexible mobility, suitable for a variety of applications.
Ultra-Low Temperature Freezer Specifications:
| Model | FZL-P86V570 |
| Capacity | 570 L |
| Temperature Range | -40 to -86 °C |
| Temperature Display Accuracy | 0.1 °C |
| Sensor | PT1000 |
| Cooling Mode | Direct cooling |
| Cooling Liquid | Green cooling liquids (R290/110 g, R170/86 g) |
| Defrost Mode | Manual defrost |
| Compressor Type/Qty | Fixed-speed Compressor/2 |
| Stainless Steel Shelve | 3 |
| Inner Door | 4 |
| Rack | 16(5×5) |
| Storage Capacity (2 Inches Boxe) | 400 |
| Samples (2 mL) | 40000 |
| Consumption | 650 W |
| Daily Power Consumption | 7.35 W |
| Noise | 39 dB |
| Power Supply | 220/110 V, 50/60 Hz |
| Display | Digital tube display |
| Inside Material | SUS304 |
| Outside Material | Zinc-iron alloy spray coating |
| Alarm | High/low temperature, Power failure, Abnormal voltage, Sensor error, Filter screen check, Thermostat failure, Low battery, Condenser clean, High ambient temperature, Door ajar, 24 h Power failure alarm (For controller) |
| Exterior Size (W×D×H) | 900×955×1987 mm |
| Package Size (W×D×H) | 990×1110×2150 mm |
| Accessory | 4 pcs Castor |
| 2/25 mm Test hole QTY/diameter; | |
| USB port | |
| Data logger | |
| Remote alarm port; | |
| Optional Accessory | RS485 port; |
| CO₂ backup system | |
| LN2 backup system; | |
| N.W./G.W. (kg) | 325/370 |
FAQ
Difference Between Laboratory ULT Freezer and Freezers
-86℃ ULT freezers are a specialized subset of laboratory freezers designed for ultra-low temperature storage of sensitive biological samples, offering significantly lower temperatures, higher stability, and more advanced systems than standard laboratory freezers.
What is the service life?
Is regular maintenance required?
How should samples be properly stored and retrieved?
Does opening the door affect the temperature?
