- Model: LCB-V-LP900E; LCB-V-LP1100E; LCB-V-LP1300E; LCB-V-LP1600E
- Work Surface Height: 750 mm
- Interlock: Front sliding sash interlock with fan and UV lamp
- Life Indicator: HEPA filter and UV life indicators facilitate a timely replacement plan
- Pre-Filter: 1 pcs, Washable Polyester fiber

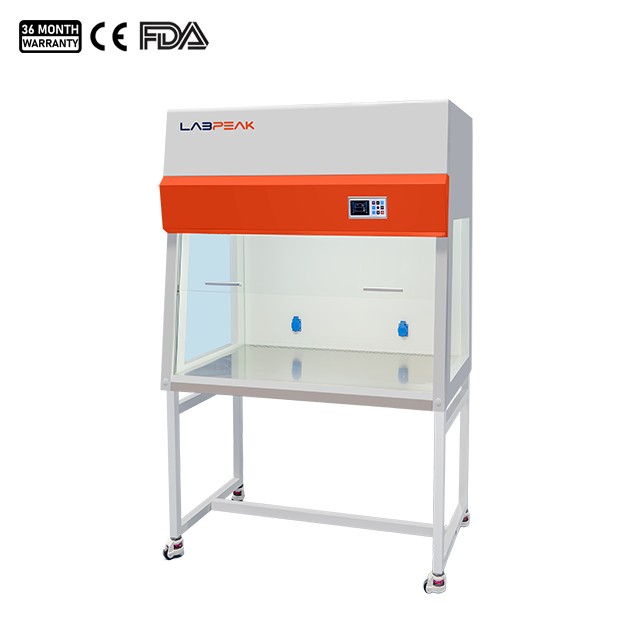

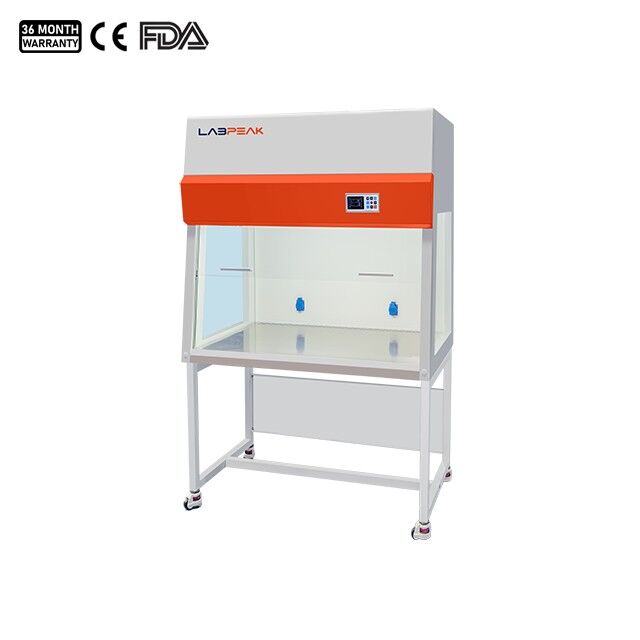

Vertical Laminar Flow Cabinet, Economic Type
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
With a proven structural design, an efficient filtration system, and well-controlled vertical airflow, this laminar flow cabinet supports routine cell culture, sample handling, and precision tasks. It offers reliable performance, high efficiency, and cost effectiveness, ensuring a clean and stable workspace for research and production use.
Economic Vertical Laminar Flow Cabinet Features:
- Centered, angled control panel for easy access.
- Stainless steel surface for quick cleaning.
- Indirect lighting reduces eye strain.
- Microprocessor control with clear LCD status display.
- HEPA and UV life indicators for timely replacement.
- Side glass panels for easy observation.
- Replaceable pre-filter extends HEPA lifespan.
- Built-in temperature sensor for real-time monitoring.
- Waterproof socket for convenient equipment use.
Economic Vertical Laminar Flow Cabinet Specifications:
| Model | LCB-V-LP900E | LCB-V-LP1100E | LCB-V-LP1300E | LCB-V-LP1600E | |
| External Size (W×D×H)(mm) | 900×715×1700 | 1050×715×1700 | 1320×715×1700 | 1625×715×1700 | |
| Internal Size (W×D×H)(mm) | 800×650×570 | 950×650×570 | 1220×650×570 | 1525×650×570 | |
| Work Surface Height | 750 mm | ||||
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function | |||
| Interlock | Front sliding sash interlock with fan and UV lamp | ||||
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | ||||
| Airflow System | Airflow Velocity | 0.2–0.5 m/s, speed adjustable | |||
| Air filtration System | Pre-Filter | 1 pcs, Washable Polyester fiber | |||
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | ||||
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | ||||
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating | |||
| Work Surface | 304 Stainless steel | ||||
| Vibration Amplitude≤3 μm | |||||
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system | ||||
| Electrical System | UV Lamp | 20W×1 | 20W×1 | 30W×1 | 30W×1 |
| With timing function, Interlock with LED lamp, blower, Socket. | |||||
| Emission of 253.7 nanometers for best sterilization effect. | |||||
| LED Lamp | 6.5W×1 | 6.5W×1 | 9.6W×1 | 9.6W×1 | |
| Waterproof Socket | 1 pc | 2 pcs | 2 pcs | 2 pcs | |
| Consumption | 155 W | 155 W | 285 W | 285 W | |
| Not include socket loading power consumption | |||||
| Power Supply | AC 220±10% V, 50 Hz | ||||
| Illumination | ≥900 Lx | ||||
| Sound Emission | ≤65 dB(A) | ||||
| Standard Accessory | 1. Base Stand; | ||||
| 2. LED Lamp; | |||||
| 3. UV Lamp; | |||||
| 4. Waterproof Socket; | |||||
| 5. Foot-master Caster; | |||||
| Optional Accessory | 1. Air Velocity Sensor and New LCD display; | ||||
| 2. Gas Tap; | |||||
| 3. Water Tap; | |||||
| 4. IV bar and hooks; | |||||
| N.W. (kg) | 115 | 130 | 155 | 180 | |
| G.W. (kg) | 150 | 170 | 200 | 230 | |
| Shipping Size (W×D×H)(mm) | 1040×850×1275 | 1190×850×1275 | 1460X850X1275 | 1765×850×1275 | |
| Shipping Volume (m³) | 1.1 | 1.28 | 1.58 | 1.9 | |
Application of Economic Vertical Laminar Flow Cabinet:
- Laminar flow cabinet is essential for creating aseptic workspaces in various environments.
- They are widely used in microbiological research labs for cultivating cultures and processing samples under sterile conditions.
- In pharmaceutical research and manufacturing, they ensure sterility during drug formulation, quality control, and sample handling.
- Laminar flow cabinets are also crucial in clinical trials, electronics assembly, and laboratory sample preparation.
How a Vertical laminar flow cabinet works?
The vertical laminar airflow (Class 100) operates on the principle of downward airflow. Clean air enters the room through HEPA filters installed in the ceiling, then flows downwards in a laminar pattern towards the floor. Finally, the air is exhausted from the room through a grated floor system.
