- Model : STL-PV35H; STL-PV50H; STL-PV75H; STL-PV100H
- Capacity (L): 35, 50, 75, 100
- Consumption (kW) : 2.5, 3, 4.5
- Rated Working Pressure : 0.22 MPa
- Rated WorkingTemperature : 134 ℃
- Sterilization Temperature Setting Range : 105–134 ℃

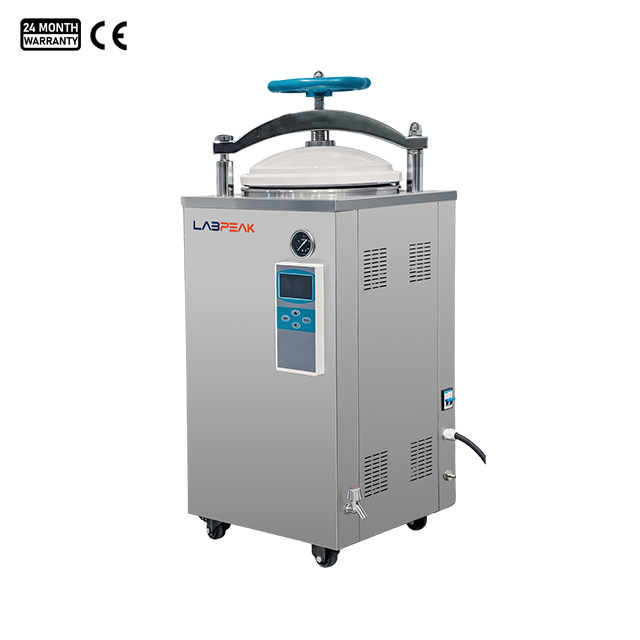

Vertical Pressure Steam Sterilizer, STL-PVH Series
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Vertical Pressure Steam Sterilizer Application:
The STL-PVH series vertical sterilizer utilizes the penetrating power of high-temperature, high-pressure steam to quickly and effectively kill bacteria, viruses, spores, and other microorganisms. This product features an intelligent control system and LCD display, making it easy to operate, stable in operation, and safe and reliable. It is widely used in medical and health, biopharmaceutical, and research institutions to ensure that various medical devices, dressings, laboratory equipment, culture media, and other items reach a sterile state.
Vertical Pressure Steam Sterilizer Feature:
- Fully stainless steel structure.
- Handwheel-type quick-open door structure, door safety lock system.
- Auto discharge the cool air and steam discharge automatically after sterilization. Automatically shut-off with beep reminding after sterilization.
- Equipped with self-locking mechanism, water lacking, water cut-off and overheat protection, automatic current overload cutoff, and automatic overpressure release
- LCD display of working status, touch-type key, easy to operate, safe and reliable.
- Self-inflating type seal ensures sterilization effectiveness, achieve long lifespan and low maintenance.
- Optional drying system, printer, and USB data management functions.
Vertical Pressure Steam Sterilizer Specification:
| Model | STL-PV35H | STL-PV50H | STL-PV75H | STL-PV100H |
| Capacity(L) | 35 | 50 | 75 | 100 |
| Consumption (kW) | 2.5 | 3 | 4.5 | 4.5 |
| Rated Working Pressure | 0.22 MPa | |||
| Rated WorkingTemperature | 134 ℃ | |||
| Sterilization Temperature Setting Range | 105–134 ℃ | |||
| Sterilization Time Setting Range | 0–99min/0–99h 59min | |||
| Power Supply | AC 220/110 V, 50/60 HZ | |||
| Chamber Size (mm) | Φ318×450 | Φ340×550 | Φ400×600 | Φ440×650 |
| External Size (mm) | 470×450×1020 | 520×490×1150 | 550×530×1180 | 580×560×1290 |
| Shipping Size (W×D×H)(mm) | 540×540×1160 | 580×580×1280 | 610×610×1320 | 640×640×1400 |
| N.W/G.W (kg) | 65/84 | 78/97 | 97/115 | 109/135 |
