- Model: ICBL-P220VS; ICBL-P220VSI; ICBL-P220VSP; ICBL-P220VSIP
- Display: LCD display; 7-inch touch screen
- Controller: PID
- Circulation Mode: Forced convection
- Shaking Mode: Cyclotron oscillation
- Capacity (L): 220 L

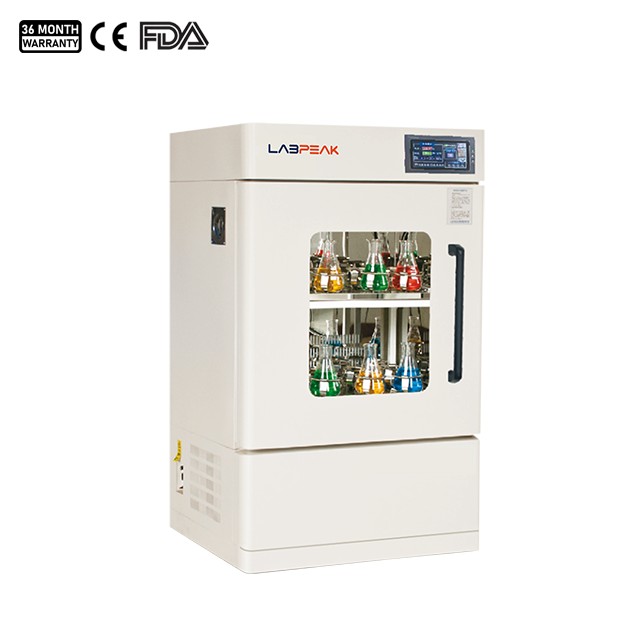

Vertical Single Door Shaking Incubator
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Vertical Single Door Shaking Incubator Feature:
- 7″ touchscreen displays temp/speed curves, history, alarms, and door logs
- Automatic defrost function
- High-precision temperature and speed control
- Parameter memory with protection and lock feature
- Supports continuous or timed operation
- Data export with analysis, charts, and printing
- Soft-start system with optimized drive and airflow design
- High-performance servo motor
- Multi-step programmable speed, temperature, and time
- Smooth acceleration and deceleration control
- Optional CO₂ control (0–20%, ±0.1% at 5%)
- Fast recovery: temperature and CO₂ return to setpoint within 6 minutes
Vertical Single Door Shaking Incubator Specifications:
| Model | ICBL-P220VS | ICBL-P220VSI | ICBL-P220VSP | ICBL-P220VSIP |
| Display | LCD display | 7-inch touch screen | ||
| Controller | PID | |||
| Circulation Mode | Forced convection | |||
| Shaking Mode | Cyclotron oscillation | |||
| Capacity(L) | 220L | |||
| Temperature Range (℃) | RT+5~65℃ | 4~65℃ | RT+5~65°C | 4~65°C |
| Temperature Accuracy (℃) | ±0.1℃ | |||
| Temperature Uniformity (℃) | ±0.5℃(at 37℃) | |||
| Cyclotron Frequency Range (rpm) | 20-350 (rpm)(To do static culture) | |||
| Cyclotron Frequency Sensitivity (rpm) | ±1 | |||
| Orbit Range(mm) | Φ26 | |||
| Refrigerant | / | Environmentally friendly refrigerant | / | Environmentally friendly refrigerant |
| Timer | 0-9999h/min (Any time, continuous duty) | 0-999.9h (Any time, continuous duty) | ||
| Standard Capacity | Clamp flask: 250 mL× 48 | |||
| Max. Capacity | Clamp flask: 100mL×68 or 250mL×50 or 500mL×32 or 1000mL×18 | |||
| Auxiliary Function | Ultra-low speed start. Adjustable start speed. Overspeed auto-protection. Watch dog timer. Parameters storage. Encryption parameters. Electricity incoming recovery. Refrigeration unit overload protection. | |||
| Sound and light alarm when upper and lower over-temperature. Function of lighting (Standard) and UV disinfection (Optional). Automatically stop when opening the door. | ||||
| External and Internal Material | Internal: Stainless steel | |||
| External:Cold rolled steel electrostatic spraying exterior | ||||
| Number of Platform | 2 | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V, 60Hz | |||
| Consumption | 600W | 850W | 600W | 850W |
| Size(W×D×H)(mm) | 700×710×1320 | |||
| Shipping Size (W×D×H)(mm) | 850×830×1480 | |||
| G.W. (kg) | 240 | |||
Vertical Single Door Shaking Incubator Package:
Each shaker incubator undergoes meticulous assembly steps without any interruptions:
- Complete wrapping with protective film.
- Reinforced packaging to prevent collisions.
- Securely housed in fumigation-free plywood wooden crates and pallets, secured with iron binding straps.
FAQs
Q: Are you a trading company or manufacturer?
A: We are the manufacturer of shaker incubators.
Q: How long is your delivery time?
A: The standard delivery time is typically 10-15 days.
Q: How do I choose the right model of shaker incubator?
A: You can select the model based on the maximum capacity, shaking speed, and temperature range required for your samples.
Q: How do you ensure the quality of your shaker incubators?
A: Quality control is a priority for us throughout the manufacturing process. Our factory holds certifications such as SGS and CE to ensure compliance with international quality standards.
Q: What training and after-sales services do you provide?
A: Training: Our technician can provide on-site setup and training for the shaking incubator, with the customer covering travel expenses. Alternatively, customers can send their technicians to our facility for training. We also offer training materials for reference. After-sales service: We offer free technical support via phone, WhatsApp, or email. Additionally, we provide lifelong maintenance after the one-year warranty period.
