The proper use and accurate detection of food additives are key to ensuring food safety. UV-Vis spectrophotometers play a vital role in the quantitative analysis of food additives that exhibit light absorption characteristics. This article discusses the basic principles of UV-Vis spectrophotometers and their applications in food additive testing. It also addresses key technical aspects such as sample preparation, wavelength selection, colorimetric reactions, standard curve development, and quality control.

The Importance of UV-Vis Spectrophotometer in Food Testing

UV-Vis Spectrophotometer has become a crucial analytical technique in the food industry. It is commonly used to detect additives, preservatives, and nutritional components in food.

UV-Vis spectrophotometry is widely used because it can detect and quantitatively analyze a wide range of organic and inorganic compounds that absorb ultraviolet and visible light. For example, a UV-Vis spectrophotometer can detect food colorings, preservatives, contaminants, and essential nutrients in various food and beverage products. It ensures food safety and compliance with relevant regulatory standards, providing a strong guarantee for food quality control and consumer safety.

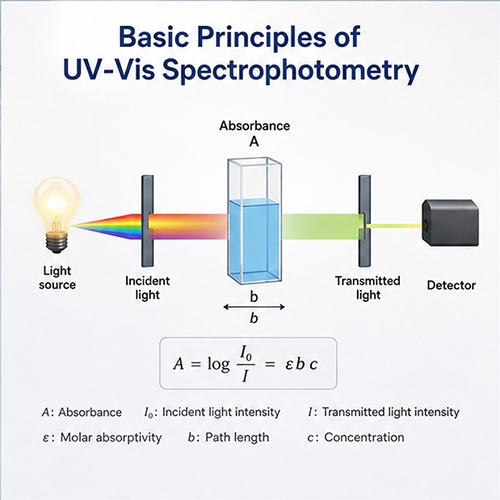

Basic Principles of UV-Vis Spectrophotometry

Essence of Light Absorption: UV-Vis Spectrophotometer is an analytical method that utilizes the selective absorption of specific wavelength bands of light by molecular species within the 190–800 nm wavelength range. When light is shone on the solution being tested, the valence electrons of the molecules undergo energy level transitions and absorb the corresponding energy. Different compounds have characteristic maximum absorption wavelengths (λmax) and spectral peak shapes, which can be used for qualitative identification; meanwhile, the relationship between absorbance and concentration is used for quantitative analysis.

Which Food Additives Can Be Detected by UV-Vis Spectrophotometers?

To determine food additives using UV-Vis spectrophotometer, two conditions must be met:

  1. The additive being tested must possess absorption capabilities in the UV or visible light region. Examples include common compounds containing benzene ring structures or conjugated double bond systems (such as benzoic acid and synthetic dyes).
  2. The measurement process must be selective, capable of effectively eliminating interference from the sample matrix. In practical applications, the additive’s maximum absorption wavelength is typically selected as the detection wavelength to balance sensitivity and accuracy.

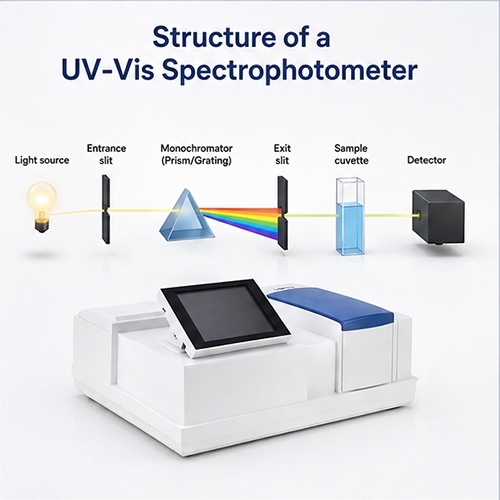

Structure of a UV-Vis Spectrophotometer

The UV-Vis spectrophotometer is the core hardware platform for implementing this method and consists primarily of the following five components:

  1. Light source: Must provide stable, continuous radiation with sufficient output power. Tungsten lamps/halogen-tungsten lamps cover the range of 350–2500 nm (visible region), while deuterium lamps/hydrogen lamps cover the range of 180–460 nm (ultraviolet region).
  2. Monochromator: Consists of an incident and exit slit, a lens system, and a dispersive element (prism or grating). It is used to decompose composite light into high-purity monochromatic light, and its performance directly determines the accuracy of wavelength selection.
  3. Absorption Cell (Cuvette): A container for holding the solution to be tested. Quartz cells are suitable for the UV-visible region, while glass cells are suitable only for the visible region; the optical path length is generally 0.5–10 cm.
  4. Detector: Phototubes or photomultiplier tubes are commonly used; the latter offer higher sensitivity and are suitable for detecting weak radiation. Photodiode array detectors are capable of rapid full-spectrum scanning.
  5. Display and Data Processing System: Supports functions such as full-wavelength scanning, spectral superposition, calibration curve fitting, automatic blank subtraction, and quantitative analysis of results.

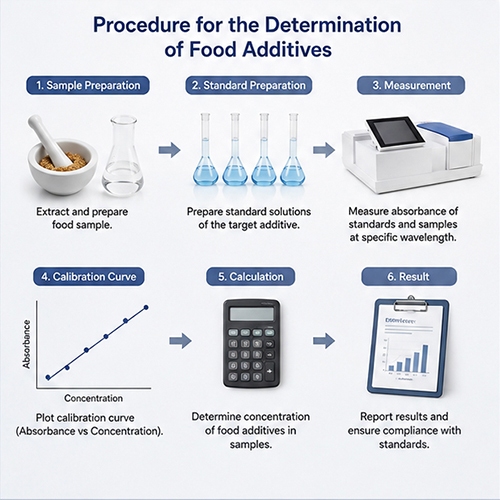

Procedure for the Determination of Food Additives

Sample Collection and Pretreatment

  1. Liquid foods: Samples can be taken directly for analysis after degassing and dilution.
  2. Solid or semi-solid foods: These require processes such as weighing, extraction, and filtration.
  3. Complex matrix samples: Additional purification steps, such as defatting and protein precipitation, are required. Trichloroacetic acid and potassium ferrocyanide-zinc acetate are commonly used to precipitate proteins, or solid-phase extraction (SPE) may be employed to remove fat and protein interference.
  4. Light-sensitive components: All test solutions should be stored away from light to prevent degradation of light-sensitive additives, which could lead to measurement errors.

Wavelength Selection and Standard Curve Preparation

The key to this method lies in selecting the λmax of the target additive for measurement to achieve the highest sensitivity.

Once the wavelength is determined, prepare a series of standard solutions. Measure the absorbance sequentially at the set wavelength, plot a standard curve, and derive the regression equation.

Determine the linear range. This standard curve serves as the mathematical basis for subsequent sample concentration calculations; the standard curve equation generally takes the form A = kc + b.

Colorimetric Reactions

Some food additives exhibit weak intrinsic absorption in the UV/visible region or are prone to interference from the sample matrix; therefore, colorimetric reactions are required to enhance the detection response. Colorimetric reactions typically involve steps such as pH adjustment, heat catalysis, and timed color development. Consequently, reaction conditions (temperature, time, and reagent dosage) must be strictly controlled to prevent errors caused by color discrepancies or incomplete reactions.

Result Calculation and Quality Control

Concentration is calculated by substituting the sample absorbance into the regression equation of the standard curve; the actual content is then determined by combining this with the final volume, dilution factor, and sample mass. Regarding quality control, the accuracy and reliability of the results should be ensured through methods such as spiked recovery experiments (typically requiring 95%–105%), relative standard deviation (RSD ≤ 2%) of duplicate samples, and validation of the matrix interference rate (generally required to be ≤ 5%).

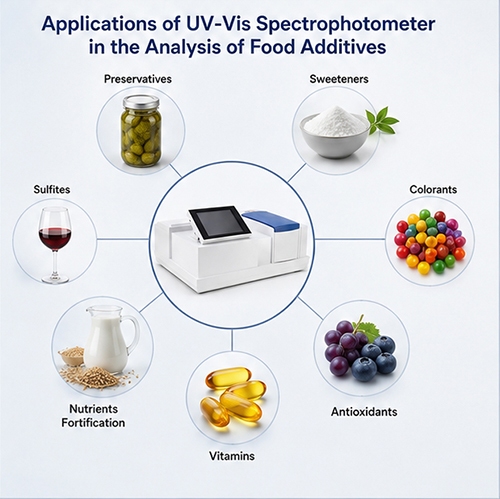

Applications of UV-Vis Spectrophotometer in the Analysis of Food Additives

  1. Quantitative Analysis of Additives and Preservatives
    Food additives and preservatives, such as sodium benzoate and potassium sorbate. These additives exhibit distinct absorption peaks in the UV spectrum and can therefore be measured using a UV-Vis spectrophotometer.
  2. Detection of Food Contaminants
    UV-visible spectrophotometer can detect contaminants such as heavy metals and pesticides. This is particularly important for products requiring strict quality control, such as dairy products, infant formula, and bottled beverages.
  3. Nutrient and Color Analysis
    This method can also quantify nutrients such as vitamins and proteins. Additionally, it can analyze the color stability of products such as fruit juices and sauces. By monitoring these parameters, manufacturers can maintain consistent product quality throughout the food production process.

Determination of Common Food Additives

  1. Preservatives—Benzoic Acid (Sodium) and Sorbic Acid (Potassium)
    Benzoic acid and its sodium salt, as well as sorbic acid and its potassium salt, are the most widely used chemical preservatives. Their molecules contain benzene rings and conjugated double bonds, respectively, and exhibit characteristic absorption in the ultraviolet region.
  2. Synthetic Colorants—Tartrazine, Sunset Yellow, etc.
    Most synthetic colorants (pigments) possess conjugated chromophore systems and exhibit strong absorption in the visible region. Tartrazine is detected at 428 nm, and Sunset Yellow at approximately 482 nm.
  3. Color Preservatives and Bleaching Agents—Nitrites
    Nitrites serve as color preservatives in meat products but are also precursors to potential carcinogens (nitrosamines). Therefore, their residual levels are strictly monitored. Nitrates can be indirectly determined by reducing them to nitrites using a cadmium column.

Sources of Error and Interference Suppression

The accuracy of UV-Vis spectrophotometer is influenced by various factors, primarily including:

  1. Chemical factors: Incomplete colorimetric reactions, improper solution pH, and fluctuations in reaction time and temperature can all lead to deviations in absorbance.
  2. Optical factors: Stray light, differences in optical path length and cleanliness of cuvettes, and wavelength calibration errors can cause systematic errors.
  3. Matrix Interference: Coexisting components in food, such as natural pigments, proteins, and fats, may produce background absorption, which must be suppressed through blank correction, separation and purification, or dual-wavelength/derivative spectroscopy.
  4. Instrument Drift: Light source aging, changes in detector sensitivity, and fluctuations in ambient temperature can cause reading drift; these should be addressed through regular calibration and corrected for using blank correction.

Conclusion

Ultraviolet-visible spectrophotometry is a commonly used method for testing food additives. By measuring the absorbance of a sample at specific wavelengths, the concentration of the additive can be determined. Results should always be validated using appropriate calibration and quality control procedures.
