- Model : SPL-PAA4530
- Wavelength Range : 190-900nm
- Accuracy of the Wavelength : ±0.15nm
- Receptivity of the Wavelength : ≤0.04nm
- Size(W×D×H)(mm) : 730×625×700

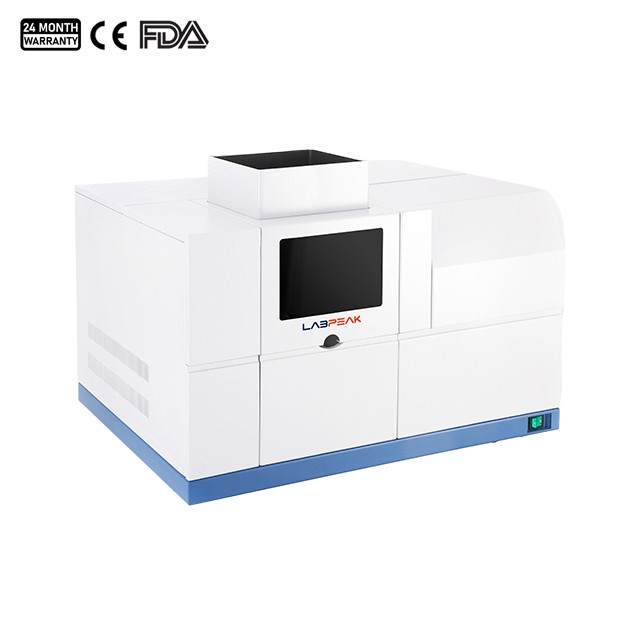

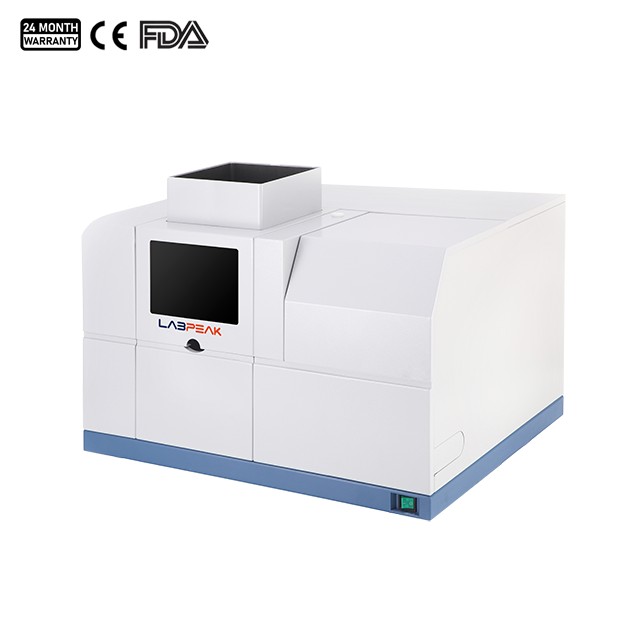

Atomic Absorption Spectrophotometer
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Atomic Absorption Spectrophotometer Feature:
- Fully automated system with complete PC control.
- Floating optical platform enhances stability and vibration resistance.
- Burner height adjusts automatically for optimal performance.
- Supports preheating of eight lamps with auto selection.
- Automatic peak detection and wavelength scanning.
- Comprehensive safety system with alarms and protection functions.
- Self-absorption background correction with deuterium lamp adjustment.
- Advanced data processing capabilities.
Atomic Absorption Spectrophotometer Specifications:
| Model | SPL-PAA4530 |
| Wavelength Range | 190-900nm |
| Spectral Bandwidth | 0.1/0.2/0.4/1.0/2.0 nm |
| Accuracy of the Wavelength | ±0.15nm |
| Receptivity of the Wavelength | ≤0.04nm |
| Base Line Stability | ≤0.002A/30min (Cu) |
| Characteristic Viscosity | 0.02μg/ml/1% (Cu) |
| Checking Limit | 0.004μg/ml (Cu) |
| Preciseness | 0.005 |
| Grating | 1800 lines/mm |
| Inflamer | All-metal titanium burner |
| Atomizer | Effective glass atomizer |
| Lamp Stand | 8 |
| D2 Background Correction Ability | When the background is 1A, the background ability should be deducted not less than 50 times, self absorption background deduction method |
| Power Source | 220V±22V AC |
| Shipping Size(W×D×H)(mm) | 860×705×755(Main instrument) |
| 1170×645×900(Accessories) | |
| G.W. (kg) | 105 (Main instrument); 100 (Accessories) |
| Flame System | |
| Acetylene Air Burner | 100mm |
| Lgnition Dynamic Baseline Drift | ≤0.006A/30min |
| (Cu) Characteristic Viscosity | ≤0.025μg/ml/1% |
| Related Standard Deviation of the Accuracy | ≤0.5% (Cu, absorbance>0.8A) (detection limit Cu≤0.008μg/ml) |
| Safety System | Can automatically cut off the gas when the pressure is not enough the power is off flame out and unconformity of the burner |
| Graphite Furnace | |
| The Highest Temperature | 3000℃ |
| The Largest Temperature Rising Speed | ≥2000℃/s |
| Characteristic Quantity | Cd≤0.5×10-12g Cu≤0.5×10-11g |
| Accuracy | Cu≤3% Cd≤3% |
| Size (mm) and Weight | 730×625×700; 79.3kg |
| Safety System | Over current protection |
| Low air pressure alarm/protection | |
| Low cooling water flow alarm/protection | |
| Power Source and Power | 220V±22V AC 7000W |
Atomic Absorption Spectrophotometer Packing:
This spectrophotometer is packed in a sturdy wooden case with foam lining, shock and impact resistant. Cooperate with reputable logistics companies to provide full tracking. Free repair or replacement for transport damage to ensure safe delivery.
