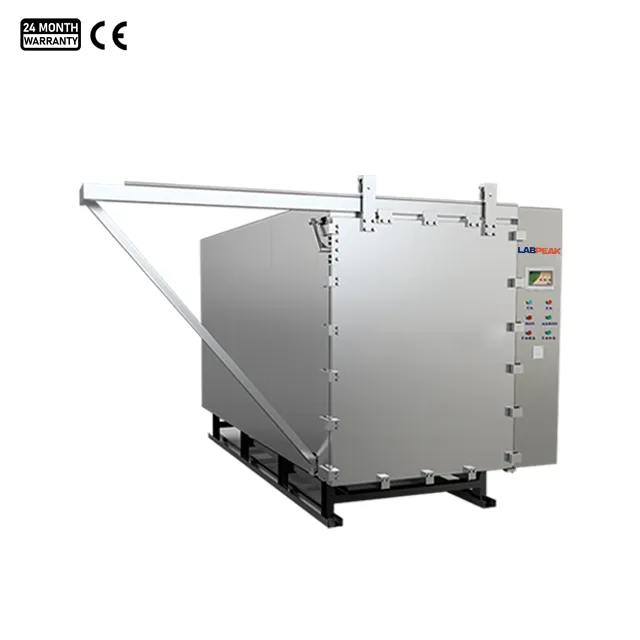

Automatic Ethylene Oxide Sterilizer

Model : STL-PEO80; STL-PEO120; STL-PEO220; STL-PEO330; STL-PEO120I; STL-PEO220I;
Capacity : 21L/67L/103L/196L/294L/126L/192L
Sterilizing Temp. : 36-55℃
Product Form : Manual door vertical
Heating Method : Electric heating

Automatic Ethylene Oxide Sterilizer Feature:

Full-automatic control system is operated by one key and automatically completes the whole process.
The display shows real-time temperature, pressure, sterilization time and so on.
Built-in sensors automatically monitor and adjust the temperature, humidity and pressure in the chamber.
5052 aluminum sealing door with pressure resistance up to 200Kpa ensures no gas leakage.
The filtration precision of the residual gas treatment equipment is ≥0.2 μm, and the filtration rate is not less than 99.5%.

Automatic Ethylene Oxide Sterilizer Specifications:

Model	STL-PEO80	STL-PEO120	STL-PEO220	STL-PEO330	STL-PEO120I	STL-PEO220I
Capacity	67 L	103 L	196 L	294L	126L	192L
Sterilizing Temp.	36-55℃
Product Form	Manual door vertical
Heating method	Electric heating
Display	5’’ LCD Touch Screen				7’’ LCD Touch Screen
Controller	PLC
Sterilizing Time	Adjustable 0-99 hour
Sterilizer Pressure	-60kpa
Sterilization Method	Low temperature, 100% Pure EO gas sterilization
Safety Protection	Temperature and Pressure protection
Tray	2 stainless net steel
Printer	Built-in Thermal mini-printer
USB Port	Yes
Internal Material	SS304 Stainless Steel				5052 Aluminium, has better thermal conductivity than stainless steel
External Material	Carbon steel
Vacuum System	High-performance, low-noise, oil-free vacuum pump
Humidity System	Use saturated steam to humidify the sterilization chamber, and the air humidity is more uniform
Timing System	EO gas diffusion time and residual EO aeration timing settable
Pre-set	Standard Sterilization Mode and Residual Washing
Power Supply	220V, 50Hz
Consumption	2.6KW	3.0KW	3.3KW	3.6KW	3.0KW	3.6KW
Internal Size (mm)	585x275x422	585x375x472	705x505x552	760x545x712	700x450x400	820x510x460
External Size (mm)	795x615x1140	795x615x1140	968x800x1240	968x800x1400	976x790x1715	976x790x1715
Net Weight	124kg	147kg	207kg	227kg	227kg	247kg
Package Size (mm)	970x770x1310	940x750x1310	1120x920x1400	1020x930x1530	1130x920x1860	1130x920x1860
Gross Weight	150kg	177kg	237kg	277kg	274kg	297kg
