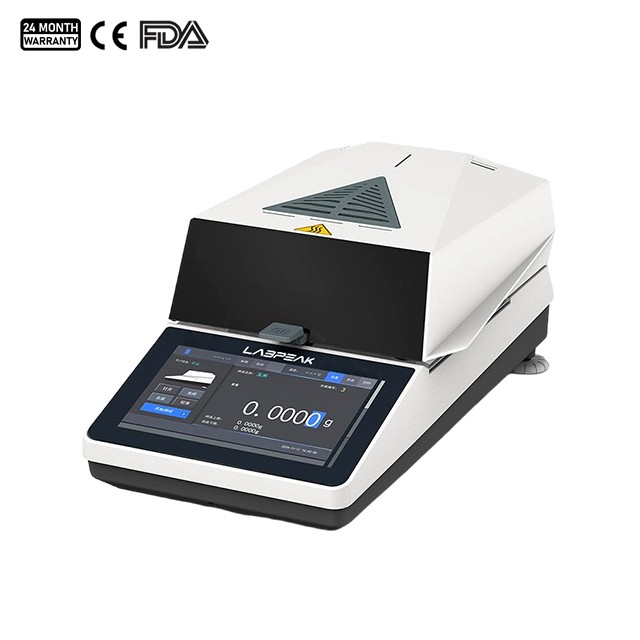

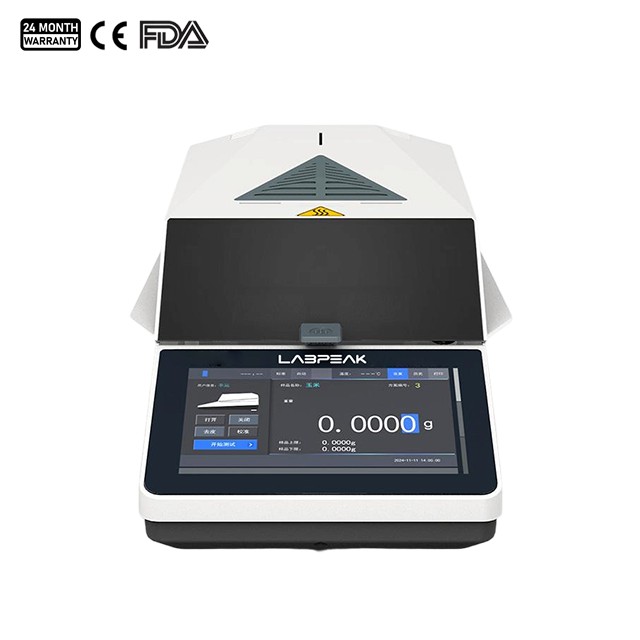

Automatic Halogen Moisture Analyzer

Automatic Halogen Moisture Analyzer is designed for high-precision, smart, and compliance-driven moisture analysis applications. Leveraging high-precision sensors from HBM and an intelligent interactive system. We provide efficient, stable, and traceable moisture analysis solutions for specialized applications such as laboratory R&D, production quality control, and import/export inspection.

Halogen Moisture Analyzer Feature:

1. High-precision HBM sensor, featuring minimum weighing capacities of 0.004 g and 0.001 g respectively. It enables the precise analysis of trace samples.
2. Eliminate sample preheating and waiting times, and avoid additional temperature calibration, significantly boosting laboratory efficiency.
3. Intelligent calibration management supports the configuration of internal automatic calibration cycles, ensuring long-term measurement accuracy and stability.
4. Customized data input with personalized information. Supports hierarchical permission management to safeguard data security and ensure process compliance, enabling precise traceability and brand-oriented management.
5. Data format fully complies with GLP/GMP laboratory standards, satisfying the stringent requirements for data integrity and traceability in industries such as pharmaceuticals and food.
6. Automatic door features a dual-motor drive system, ensuring convenient operation and reliable protection.
7. Ultra-quiet cooling fans that, while ensuring highly efficient heat dissipation, create a quiet and comfortable working environment.
8. NIFI/APP data association (optional)

Halogen Moisture Analyzer Specification:

What is the principle of halogen moisture balance?

The halogen drying method is based on the principle of thermogravimetric analysis. It determines the moisture content by directly measuring the weight loss of the sample under intense halogen light.

1. First, weigh the sample.
2. Halogen lamp rapidly heats the sample, causing the moisture to evaporate.
3. The moisture analyzer continuously measures the mass loss during the drying process.
4. Instrument calculates the moisture content based on the mass loss.

Difference between halogen and infrared moisture analyzer?

The key difference lies in the heating method and performance:

Halogen Moisture Analyzer:

1. Heating source: Halogen lamp
2. Heating speed: Very fast, reaches set temperature quickly
3. Temperature control: More precise and uniform
4. Result time: Shorter
5. Application: Suitable for routine and high-efficiency testing

Infrared Moisture Analyzer:

1. Heating source: Infrared emitter (ceramic/heating element)
2. Heating speed: Slower than halogen
3. Temperature control: Less uniform
4. Result time: Longer
5. Application: Suitable for basic or less time-sensitive analysis
