Benchtop Freeze Dryer Feature:

7 inches colorful touch panel can display the product sample’s temperature, condenser temperature and vacuum etc in digital and curve.
Touch panel with the design conforms to ergonomics and operate more comfortably.
Compact bench-top design with a small footprint.
USB data export for convenient user information management
Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing.

Reliability:

High performance compressor, cascade system, high cooling efficiency and fast cooling speed.
Condenser and operation panel are made by stainless steel.
Drying chamber is transparent which is visual and safe.

Benchtop Freeze Dryer Specification:

Model		FDL-P10S	FDL-P10P	FDL-P10T	FDL-P10PT

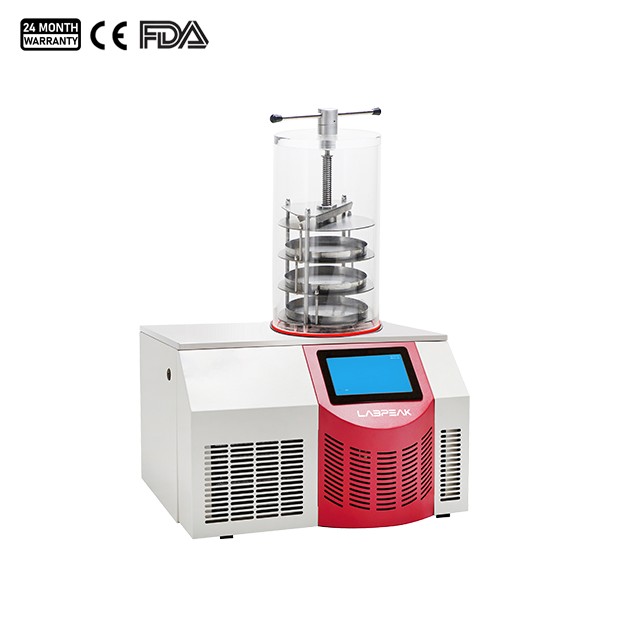

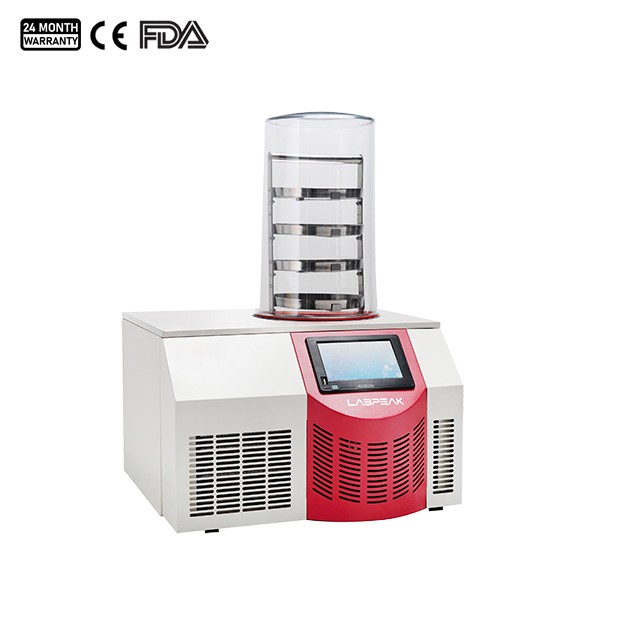

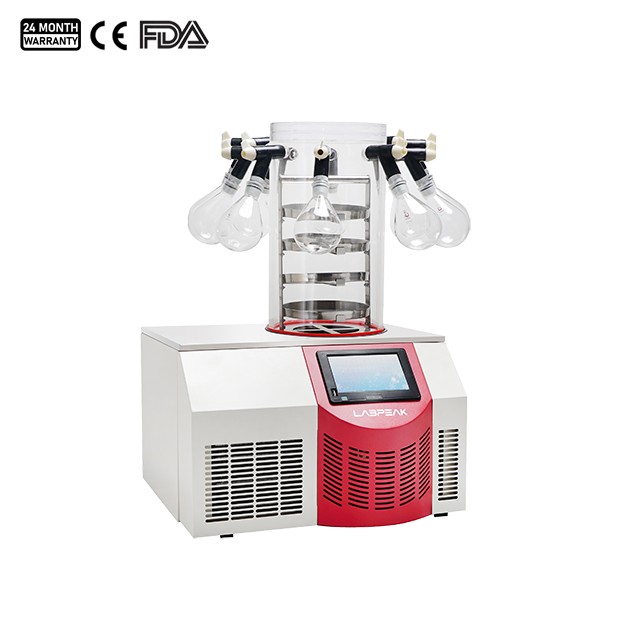

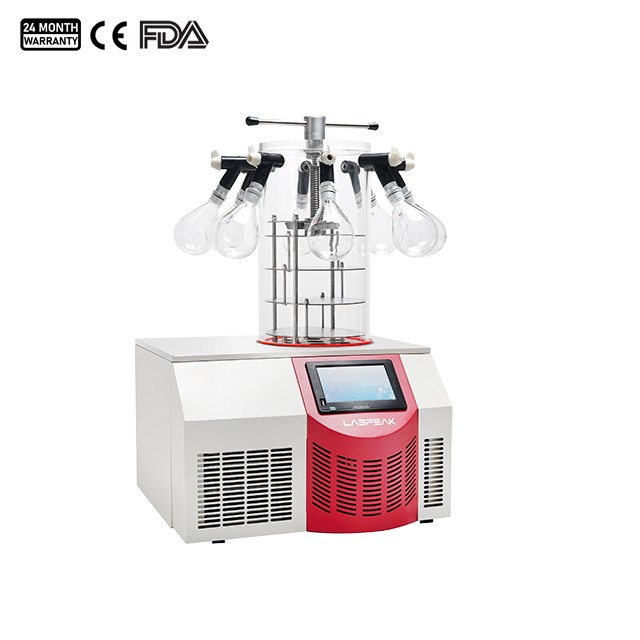

Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area (m2)		0.12		0.09
Tray (Qty)		4/6 (optional) pcs		3pcs
Tray Size (ΦxH)(mm)		Φ200×20		Φ200×20
Height Between Trays (mm)		76/50		70(average)
Condenser Temperature (℃)		-60	-60	-60	-60
Condenser Capacity (L)		6.5	6.5	6.5	6.5
Condenser Size (D x H) (mm)		Φ215×190	Φ215×190	Φ215×190	Φ215×190
Vacuum Degree (No-loading) (Pa)		≤5	≤5	≤5	≤5
Ice Condensing Capacity (kg/24h)		3	3	3	3
Loading Capacity/Shelf (mL)		300	300	300	300
Total Loading Capacity (mL)		1200	1200	900	900
Drying Chamber Size (Standard)		Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
Total Qty. of Vial Φ22		260		195
Total Qty. of Vial Φ16		480		360
Total Qty. of Vial Φ12		920		690
Refrigerant Type		CFC-free
Standard Accessories		Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover (for all modes)
Standard Accessories		Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs (only for model 1P/PT)
Optional Function & Accessories		Electric defrost function, nitrogen gas filling valve, oil mist filter (for all models)
Optional Function & Accessories		800mL wide-mouth flask (only for model 1P/PT)
Consumption		0.85kW
Electricity		AC220V, 50Hz(standard), other electricity type can be customized
External Size (WxDxH)(mm)		600x540x374/820		600x540x374/880
Shipping Size (WxDxH)(mm)	Main Body	670x700x560
	Drying Chamber	410x410x640
	Vacuum Pump	220x580x370
Gross Weight		110kg

Stopper chamber	Standard stopper with 8 port manifolds	Standard chamber with 8 manifolds
Standard chamber	Stainless steel with 8 port manifolds	Valve and freeze drying bottle
Lsolation valve	24 EA drying shelf	Stainless steel drying chamber
