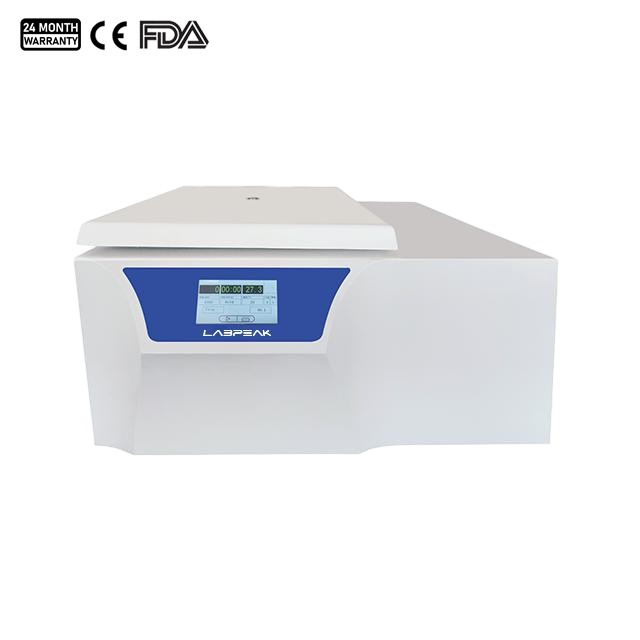

Low Speed Refrigerated Centrifuge Feature:

5-inch HD touchscreen with clear, intuitive operation.
Automatic rotor recognition enhances operational safety.
Multi-stage acceleration and deceleration for improved separation performance.
Stores up to 15 user-defined programs.
Comprehensive safety protection including overspeed, lid lock, and imbalance detection.
Quick switching between speed and RCF for flexible use.

Benchtop Low Speed Refrigerated Centrifuge Specification:

Model	CFGL-P5LR
Max.Speed	6000rpm
Max.RCF	4390×g
Max.Capacity	4×500mL
Motor	AC frequency conversion motor
Speed Accuracy	±30r/min
Time Range	1min~99 min59sec
Continuous centrifuge	Hold
Temperature range	-20℃~+40℃
Temperature accuracy	±1.0℃
Power supply	AC220±22V 50/60Hz 16A
Noise	< 60dB(A)
External Size (W×D×H)(mm)	743×720×410
Shipping Size (W×D×H)(mm)	825×810×570
N.W/G.W	110kg/122kg

Rotors for CFGL-P5LR:

No.	Rotor type	Capacity	Max.Speed	Max.RCF	Dimension of Tube (mm)
NO.1	Swing rotor	4x2x100ml	4000rpm	2810×g	Φ37.5×123
		4x100ml)	4000rpm	2810×g	Φ37.5×123
		4x2x50ml	4000rpm	2810×g	Φ29×107
		4x50ml	4000rpm	2810×g	Φ29×107
		4x8x10/15ml	4000rpm	2810×g	Φ17×118
		4x6x10/15ml			Φ17×118
		4x4x10/15ml			Φ17×118
NO.2		4x250ml	4200rpm	3500xg	Φ62×110
NO.3		4x500ml	4000rpm	3040×g	Φ80×137
NO.4	Microplate Rotor	2×2×96 well	4000rpm	2000×g	Microplate
NO.5	Swing rotor	4×12×7/5ml	4000rpm	2800×g	Φ13×110
NO.6	Swing rotor	4×18×7/5ml	4000rpm	2800×g	Φ13×110
NO.7	Swing rotor	4×24×7/5ml	4000rpm	2800×g	Φ13×110
NO.8	Angel rotor	12×10ml	6000rpm	4390×g	Φ16×83
