The biological safety cabinet with advanced ergonomic design excel in user comfort and functionality. Now the affordable biosafety cabinet class II for sale at cost price.

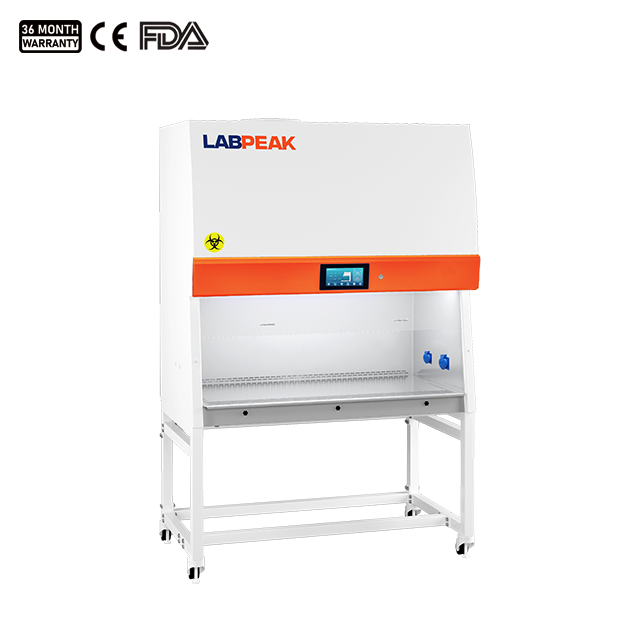

The class II A2 biological safety cabinet is a containment device utilized in biological safety laboratories to prevent the escape of harmful or unknown biological aerosols during operation. It is specifically designed for microbiological research involving non-volatile or non-toxic chemicals and radionuclides.
| Model | BSC-IIA2-LP1100 | BSC-IIA2-LP1300 | BSC-IIA2-LP1400 | BSC-IIA2-LP1500 | BSC-IIA2-LP1800 | |
| External Size (W×D×H)(mm) | 1050×780×2130 | 1300×780×2130 | 1400×780×2130 | 1500×780×2130 | 1800×780×2130 | |
| Internal Size (W×D×H)(mm) | 950×626×600 | 1200×626×600 | 1300×626×600 | 1400×626×600 | 1700×626×600 | |
| Tested Opening | Safety height 200mm (8”) | |||||
| Max.Opening | 400mm | |||||
| Work Surface Height | 800mm | |||||
| Control System | Display | 7” LCD touch screen | ||||
| Alarm | Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height | |||||

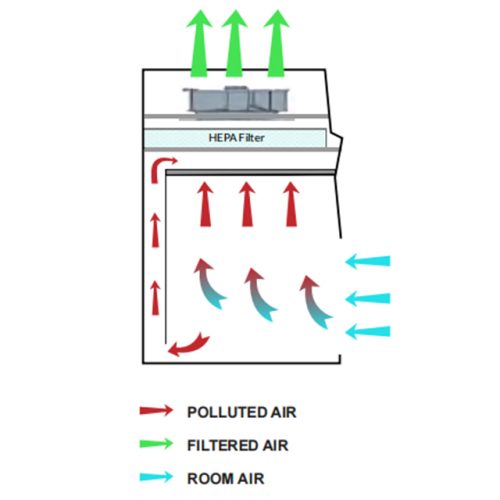

| Airflow System | Airflow Mode | 70% air recirculation, 30% air exhaust | ||||
| Downflow Velocity | 0.35m/s±0.025m/s | |||||
| Inflow Velocity | 0.52m/s±0.025m/s | |||||
| Inflow Air Volume | 355 m³/h (209CFM) | 450 m³/h (286CFM) | 486 m³/h (286CFM) | 524 m³/h (309CFM) | 636 m³/h (375CFM) | |
| Downflow Air Volume | 718 m³/h (423CFM) | 945 m³/h (579CFM) | 983 m³/h (579CFM) | 1058 m³/h (623CFM) | 1285 m³/h (757CFM) | |
| Exhaust Air Volume | 355 m³/h (209CFM) | 450 m³/h (309CFM) | 486 m³/h (309CFM) | 524 m³/h (309CFM) | 636 m³/h (375CFM) | |
| Air filtration System | ULPA Filter | 2pcs ULPA filter, ≥99.9995% efficiency at 0.1~0.3 μm, filter life indicator | ||||
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | |||||
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating | ||||
| Work Surface | 304 stainless steel | |||||
| Front Window | Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV. | |||||
| Electrical System | UV Lamp | 20W×1 | 30W×1 | 30W×1 | 30W×1 | 40W×1 |
| Emission of 253.7 nanometers for most efficient decontamination,UV life indicator, UV timer. | ||||||
| LED Lamp | 16W×2 | 16W×2 | 24W×2 | 24W×2 | 60W×1+40W×1 | |
| Max.Consumption | 750W (Not include socket loading power consumption) | |||||
| Fan power | 650W | |||||
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | |||||
| Illumination | ≥1000Lu | |||||
| Sound Emission | ≤65dB(A) | ≤67dB(A) | ||||
| Standard Accessory | 1. Base Stand; | |||||
| 2. Air Velocity Sensor; | ||||||
| 3. ULPA Filter; | ||||||
| 4. LCD Touch Screen; | ||||||
| 5. LED Lamp×2; | ||||||
| 6. UV Lamp×1; | ||||||
| 7. Waterprof Socket×2; | ||||||
| 8. Motorized Front Window; | ||||||
| 9. Footmaster Caster; | ||||||
| 10. Foot Switch; | ||||||
| 11. Electric Air Valve Control; | ||||||
| 12. RS485 interface; | ||||||
| 13. Magnetic file folder. | ||||||
| Optional Accessory | 1. LED Lights With Adjustable Brightness | |||||
| 2. Gas Tap; | ||||||
| 3. Water Tap; | ||||||
| 4. IV Bar With Hooks; | ||||||
| 5. Manual Adjustable Base Stand; | ||||||
| 6. Arm rest; | ||||||
| 7. Side windows. | ||||||
| Net Weight (kg) | 224 | 251 | 263 | 290 | 370 | |
| Gross Weight (kg) | 266.5 | 301 | 313 | 380 | 495 | |
| Shipping Size (W×DxH)(mm) | 1100×1080×1700 | 1450×1120×1710 | 1550×1120×1710 | 1650×1120×1710 | 1950×1120×1710 | |
| Shipping Volume (m³) | 2.3 | 2.8 | 3 | 3.2 | 3.7 | |
 |
 |
 |
 |

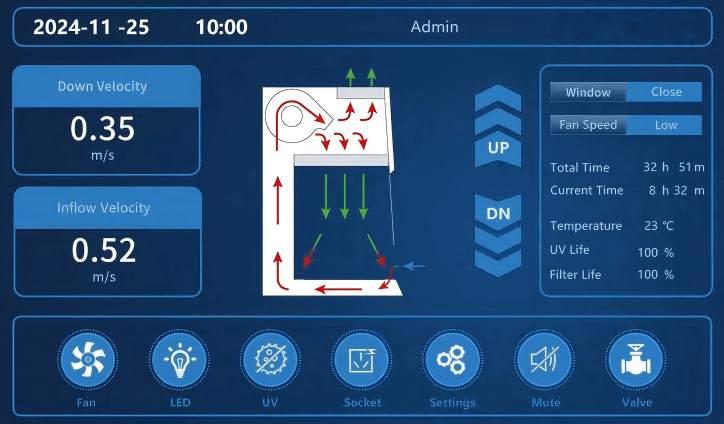

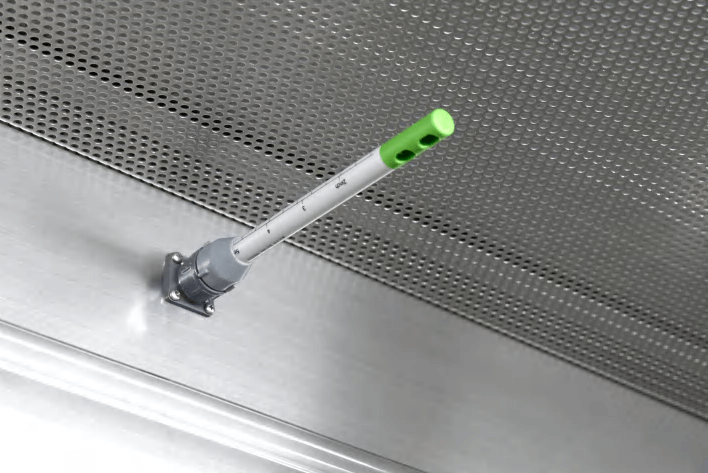

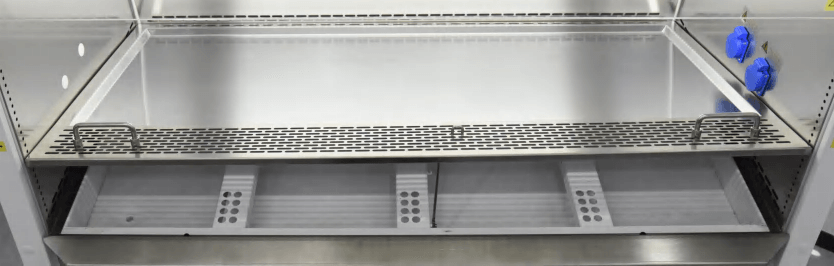

| 7” LCD Touch Screen | Air Velocity Sensor | Perforations on all four sides | User friendly design |
 |
 |
||

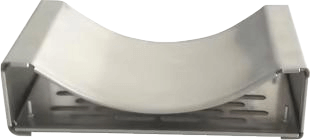

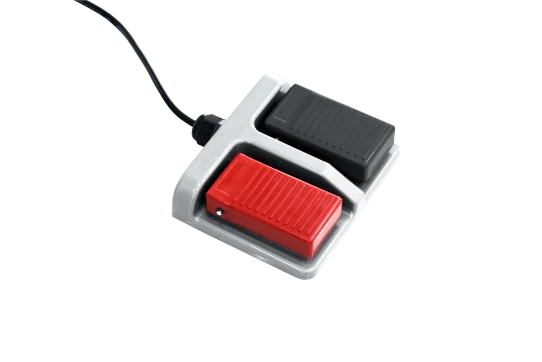

| Foot switch | Arm Rest (Optional) | ||
A biological safety cabinet (BSC) serves as a primary engineering safeguard, shielding personnel from biohazardous or infectious agents while also ensuring quality control of the material being handled by filtering both incoming and outgoing air.
What is Class II A2 biosafety cabinet?
Biosafety cabinets Class II A2 are currently the predominant choice in biosafety cabinets and have supplanted Type A1 cabinets. Type A2 cabinets are required to maintain a minimum average inflow velocity of 100 feet per minute (fpm) through the sash opening.
Difference between class II type A1, A2, and B1, B2 cabinets?
Class II Type A1 and A2 cabinets offer personnel and environmental protection, with Type A2 providing higher levels of protection. Type B1 and B2 cabinets provide additional protection for working with hazardous materials, with Type B2 offering the highest level of protection. The main differences lie in their airflow patterns, exhaust mechanisms, and suitability for different types of hazardous materials.
