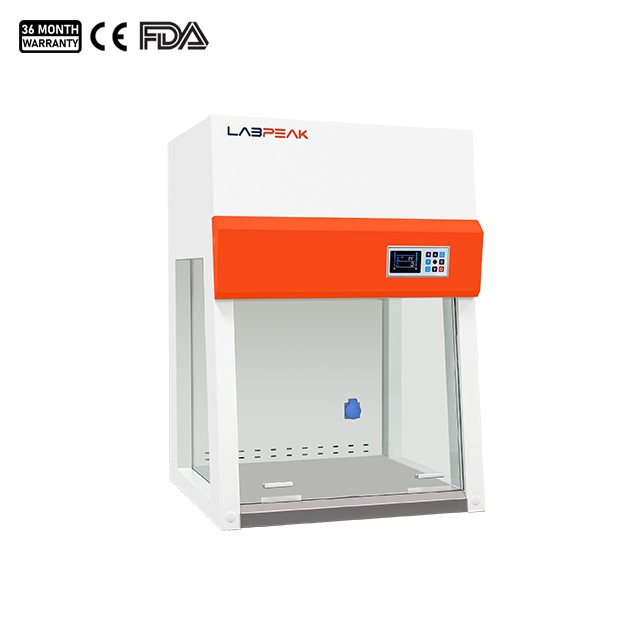

The biosafety cabinet class I with advanced ergonomic design excel in user comfort and functionality.
This biological safety cabinet class I features advanced design and technology to perform everyday applications safely and efficiently. The proprietary airflow design provides superior protection, superior ergonomics for a safe and comfortable environment, and superior energy efficiency for operational cost savings.
| Model | BSC-I-LP800 | |
| External Size (W×D×H) | 710×680×1050 mm (Without Base Stand) | |
| 710×680×1680 mm (With Base Stand) | ||
| Internal Size (W×D×H) | 610×590×625 mm | |
| Work Surface Height | 750 mm | |
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
| Interlock | Front sliding sash interlock with fan and UV lamp | |
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | |
| Airflow System | Airflow Velocity | 0.2–0.5 m/s, Speed adjustable |
| Air filtration System | HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3 μm |
| Cleanliness Grade | ISO Class 5 (formerly Class 100) | |
| Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
| Work Surface | 304 Stainless steel, an angled front, rounded work surface front edge | |
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | |
| Side window | 5 mm UV resistant tempered glass | |
| Electrical System | UV Lamp | 8 W×1 |
| With timing function from 0 to 999 min | ||
| Interlock with front sliding sash. | ||
| Emission of 253.7 nanometers for best sterilization effect. | ||
| LED Lamp | 8W×1 | |
| Consumption | 160W (Not include socket loading power consumption) | |
| Power Supply | AC 220±10% V, 50/60 Hz; 110±10% V, 60 Hz | |
| Illumination | ≥500 Lux | |
| Sound Emission | ≤62 dB(A) | |
| Standard Accessory | 1. LED Lamp; 2. UV Lamp; 3. Waterproof Socket×1pcs; 4. Air Velocity Sensor | |
| Optional Accessory | 1. Base stand; 2. Water Tap; 3. Gas Tap | |
| Net Weight | 80 kg (Without base stand), 130 kg (With base stand) | |
| Gross Weight | 115 kg (Without base stand), 165 kg (With base stand) | |
| Shipping Size (W×D×H) | 920×855×1190 mm | |
| Shipping Volume | 0.94 m³ | |
 |
 |
 |
 |

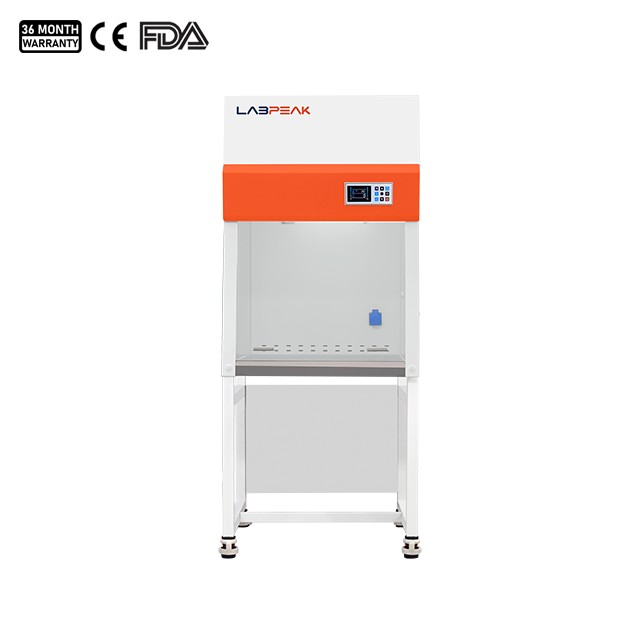

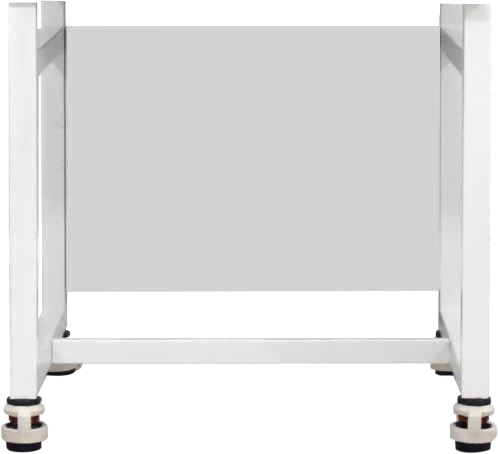

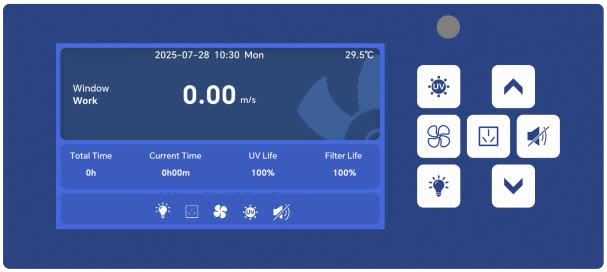

| LCD Display | UV Lamp | Base stand (Optional) | Waterproof Socket (IP54) |
A biological safety cabinet (BSC) serves as a primary engineering safeguard, shielding personnel from biohazardous or infectious agents while also ensuring quality control of the material being handled by filtering both incoming and outgoing air.
What is a class I biosafety cabinet?
A Class I biosafety cabinet is a ventilated enclosure ensuring both personnel and environmental safety. It features an open front with inward airflow for personnel protection and HEPA-filtered exhaust air for environmental protection.
Difference between Class I and Class II safety cabinets?
Biosafety cabinets fall into three classes: I, II, and III. Class I offers protection for the user and surrounding environment, but not for the sample being handled. Class II provides protection for the user, environment, and sample, and is further categorized into four types: A1, A2, B1, and B2.
