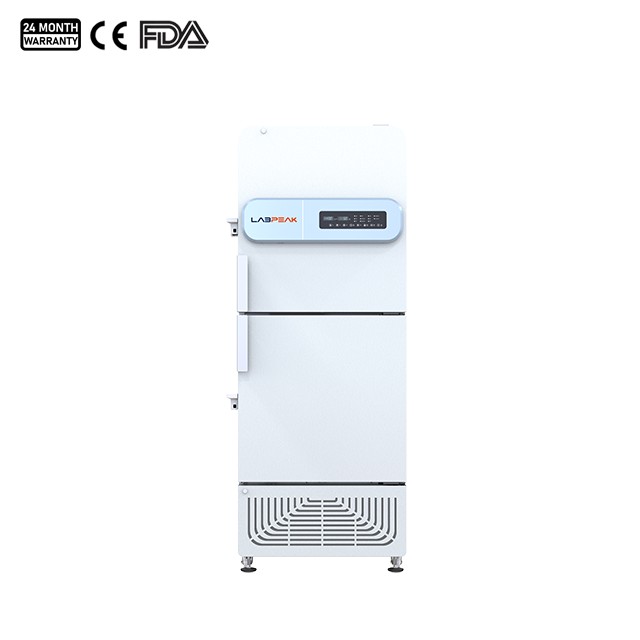

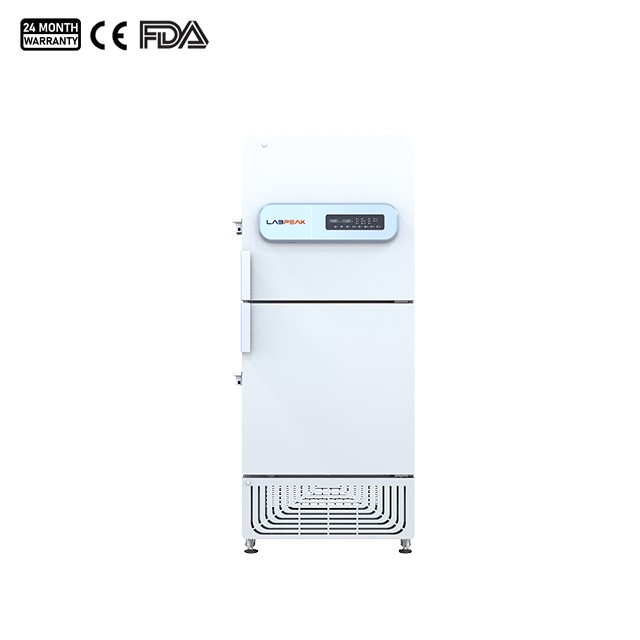

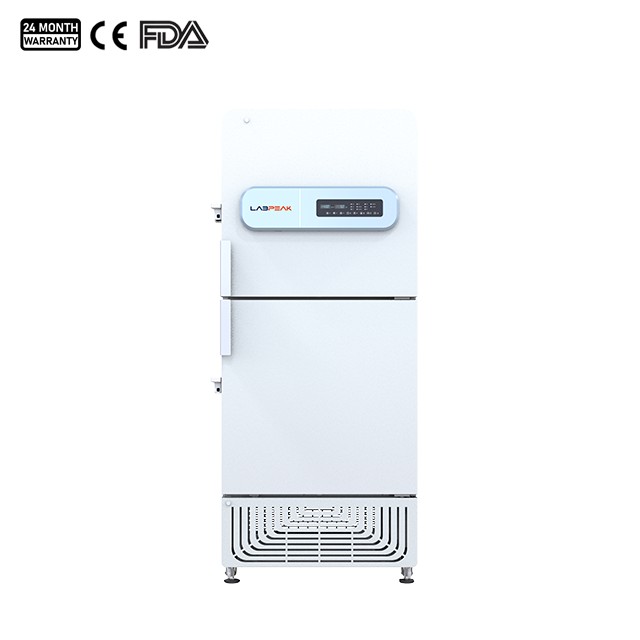

- Model : RFZL-P40V310; RFZL-P40V450; RFZL-P40V620;
- Cabinet: Refrigerator; Freezer
- Temperature Range: 2 to 8 °C, -20 to -40 °C
- Sensor: NTC
- Cooling Mode: Forced Air Cooling, Direct Cooling
Combined Refrigerator and Freezer
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
A combined refrigerator and freezer ensures the safe storage of pharmaceuticals, vaccines, and reagents, effectively safeguarding their activity and stability. Additionally, it is suitable for applications such as low-temperature material testing and the preservation of food testing samples, making it widely adaptable for use in various medical and research settings—including hospitals, pharmacies, and scientific research institutions.
Combined Refrigerator and Freezer Feature:
- Dual-chamber, dual-door design operates independently without mutual interference, satisfying diverse temperature storage requirements.
- A microcomputer-based temperature control system paired with a digital display offers a resolution of 0.1°C
- Dual variable-frequency compressors adjust their operating frequency on demand, ensuring stable temperature control and energy efficiency.
- The refrigerator is equipped with an ambient circulating air-cooling system, providing excellent temperature uniformity. The freezer is equipped with double-layer heat preservation, preventing cold air leakage during access and saving more energy.
- Stainless steel interior liner offers exceptional corrosion resistance and is easy to clean.
- Dual-locking mechanism, combining a built-in security lock with a dedicated padlock port, alongside multiple alarm modes and a reserved interface for remote alarm systems, ensuring all-around security for stored contents.
- Multiple compressor protection mechanisms, a power-failure memory function, and a backup battery work in tandem to guarantee continuous equipment operation.
- Easily portable and stable in position, with two standard test ports for convenient temperature monitoring.
- Built-in data storage module that can store up to 10 years of temperature data, with a USB port for data export.
Combined Refrigerator and Freezer Specifications:
| Model | RFZL-P40V310 | RFZL-P40V450 | RFZL-P40V620 | |||
| Cabinet | Refrigertor | Freezer | Refrigertor | Freezer | Refrigertor | Freezer |
| Capacity (L) | 325 | 11.5 | 465 | 16.4 | 645 | 22.8 |
| Temperature Range | 2 to 8 °C | -20 to -40 °C | 2 to 8 °C | -20 to -40 °C | 2 to 8 °C | -20 to -40 °C |
| Sensor | NTC | |||||
| Cooling Mode | Forced Air Cooling | Direct Cooling | Forced Air Cooling | Direct Cooling | Forced Air Cooling | Direct Cooling |
| Cooling Liquid | R600a/58 g | R290/65g | R600a/58 g | R290/65g | R600a/58 g | R290/78g |
| Defrost Mode | Auto | Manual | Auto | Manual | Auto | Manual |
| Compressor Qty | 2 | |||||
| Stainless Steel Shelve | Powder-Coated shelf/3+Basket drawer/1 | SUS304 stainless steel shelves/1 | Powder-Coated shelf/3+Basket drawer/1 | SUS304 stainless steel shelves/1 | Powder-Coated shelf/3+Basket drawer/1 | SUS304 stainless steel shelves/1 |
| Inner Door | no | Optional | ||||
| Consumption | 240 W | |||||
| Daily Power Consumption (W) | 2.04 | 2.49 | 2.54 | |||
| Noise (dB) | 41 | |||||
| Power Supply | 220/110 V, 50/60 Hz | |||||
| Display | LED | |||||
| Inside Material | Stainless steel | |||||
| Outside Material | Power coated steel | |||||
| Alarm | High/low temperature, Power failure, Abnormal voltage, Sensor error, Thermostat failure, Low battery, High ambient temperature, Door ajar, 24 h Power failure alarm (For controller) | |||||
| Interior Size (W×D×H)(mm) | 586×520×654 | 500×485×535 | 706×566×654 | 620×505×633 | 706×776×654 | 620×715×633 |
| Exterior Size (W×D×H)(mm) | 724×720×1818 | 845×750×1939 | 845×960×1939 | |||
| Package Size (W×D×H)(mm) | 800×830×1980 | 920×880×2090 | 920×1090×2090 | |||
| Accessory | 4 pcs Castor; | |||||
| 2/25mm Test hole QTY/diameter; | ||||||
| USB port; | ||||||
| Data logger; | ||||||
| Remote alarm port; | ||||||
| Optional Accessory | RS485 port | |||||
| N.W./G.W. (kg) | 134/156 | 172/195 | 196/224 | |||
FAQ
Difference Between Laboratory ULT Freezer and Freezers
-86℃ ULT freezers are a specialized subset of laboratory freezers designed for ultra-low temperature storage of sensitive biological samples, offering significantly lower temperatures, higher stability, and more advanced systems than standard laboratory freezers.
What is the service life?
Is regular maintenance required?
How should samples be properly stored and retrieved?
Does opening the door affect the temperature?
