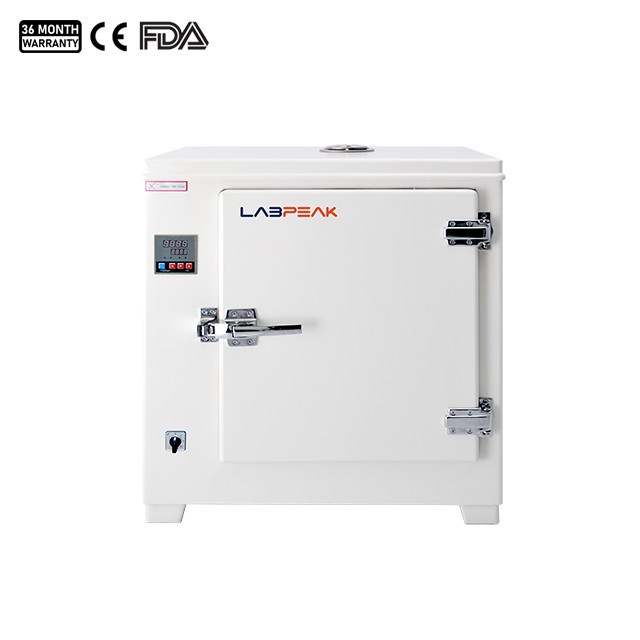

Constant Temperature Drying Oven N Series

Model: TDOL-PN45D; TDOL-PN45; TDOL-PN70D; TDOL-PN70; TDOL-PN140D; TDOL-PN140; TDOL-PN220D; TDOL-PN270;
Capacity : 42 / 70 / 135 / 137 / 224 270
Circulation Mode : Natural convection
Temperature Range: 50~200 ℃
Timer : 0~9999 min

Warning

/www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php

341

Drying Oven Feature:

Outer Shell Material: Made of powder-coated cold-rolled steel sheet for durability and strength
Inner Chamber Material: High-quality SUS stainless steel, corrosion-resistant and easy to clean
Top Vent: Smooth operation for easy ventilation adjustment
Temperature Control System: LED digital display with PID control ensures stable and precise temperature; supports 0–9999-minute timer or continuous operation
Power-Off Memory: Features parameter storage; automatically resumes operation when power is restored
Interior Design: Rounded corners minimize dirt buildup and facilitate easier cleaning
Shelf System: Pull-out shelves with adjustable spacing to accommodate items of various sizes

Drying Oven Specifications:

Model		TDOL-PN45D	TDOL-PN45	TDOL-PN70D TDOL-PN70	TDOL-PN140D TDOL-PN140	TDOL-PN220D TDOL-PN270
Capacity(L)		42	42	70	135/137	224/270
Internal circulation method		Natural convection
Size(WxDxH)	Internal (mm)	350×348×350	350×350×350	450×348×450 400×390×450	550×448×550 500×500×550	600×498×750 600×600×750
Size(WxDxH)	External (mm)	620×40×650	635×615×552	680×653×631	830×665×772	930×765×972
Temperature	Range	50~200 ℃
	Fluctuation	±1 ℃
	Resolution	0.1 ℃
	Uniformity	≤ Max operating temperature ±3.5%
Security alarm		Over temperature alarm, temperature probe damage alarm
Timer		0~9999 min
Shelves (Standard)		2	2	2	3	3
Safety Device		Over temperature alarm, temperature probe damage alarm
Electricity	Voltage/Frequency	220/110 V, 50/60 HZ
Electricity	Consumption (W)	1200	850	1600/1000	2000	3000
G.W. (kg)		54	54	72/72	95/86	136/125
Shipping Size (W×DxH) (mm)		710×570×780	710×570×780	810×670×860 810×670×860	920×740×970 920×750×700	1020×870×1180 1020×850×1110
Type		TDO-ND: Glass inner door, outer door without observation window;
Type		TDO-N: Without glass inner door, outer door observation window.
Optional		TDO-N: LCD screen temperature controller, LCD screen temperature controller+ micro dot matrix printer or RS485 communication serial port.
