| External Size (W×D×H)(mm) |
1087×760×2100 |
1380×760×2100 |
1880×760×2100 |
| Internal Size (W×D×H)(mm) |
910×600×630 |
1220×600×630 |
1700×600×630 |
| Tested Opening |
Safety height 200 mm (8″) |
| Max Opening |
440 mm |
| Work Surface Height |
800 mm |
| Control System |
Display |

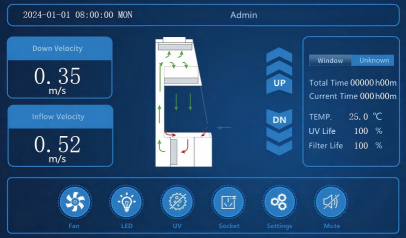

7 inch LCD Touch Screen, Microprocessor; |
| Humidity and temperature can be displayed on the control panel. |
| Alarm |
Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm |
| Airflow System |
Downflow Velocity |
0.33m/s±0.025m/s |
| Inflow Velocity |
0.53m/s±0.025m/s |
| Exhaust Air Volume |
347 m³/h |
465 m³/h |
648 m³/h |
| Air filtration System |
Supply Filter |
ULPA filter, efficiency>99.9995% for particle size at 0.1–0.3 μm |
| Exhaust Filter |
ULPA filter: first exhaust filter: 0.1–0.3 μm efficiency 99.9995%; |
| HEPA filter: secondary exhaust filter: 0.3 μm efficiency 99.995% |
| Cabinet Construction |
Main Body |
Cold-rolled steel with anti-bacteria powder coating |
| Work Surface |
304 stainless steel |
| Front Window |
Motorized, tempered glass ≥6 mm, anti-UV |
| Electrical System |

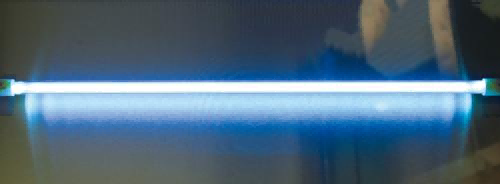

UV Lamp |
20W×1 |
30W×1 |
40W×1 |
| Emission of 253.7 nanometers for most efficient decontamination UV life indicator, UV timer |
| LED Lamp |
12W×2 |
16W×2 |
16W×2 |
| Waterproof Socket |
Two, total load of two sockets: ≤500W |
| Consumption |
700 W |
900 W |
1300 W |
| Not include socket loading power consumption |
| Power Supply |
AC 220±10% V, 50/60 HZ; 110±10% V, 60 Hz |
| Illumination |
≥1000 Lux |
| Sound Emission |
≤67 dB |
| Standard Accessory |
1. Base Stand |
| 2. Drain Valve; |
| 3. Waterproof Sockets×2; |
| 4. LED Lamp×2; |
| 5. UV Lamp×1; |
| 6. Water Tap×1; |
| 7. Gas Tap×1; |
| 8. Footmaster Caster; |
| 9. Air Velocity Sensor |
| Gross Weight (kg) |
320 |
371 |
470 |
| Shipping Size (W×D×H)(mm) |
1240×910×2280 |
1540×910×2280 |
2060×910×2310 |
| Shipping Volume (m³) |
2.6 |
3.2 |
4.4 |
