- Model : DOIL-P50E; DOIL-P80E; DOIL-P150E; DOIL-P250E
- Incubator: RT +5°C -80°C;
- Drying oven: 80-200°C
- Fluctuation: ±0.5 ℃
- Uniformity Incubator: ≤ ±1 ℃;
- Internal Circulation Method: Forced convection

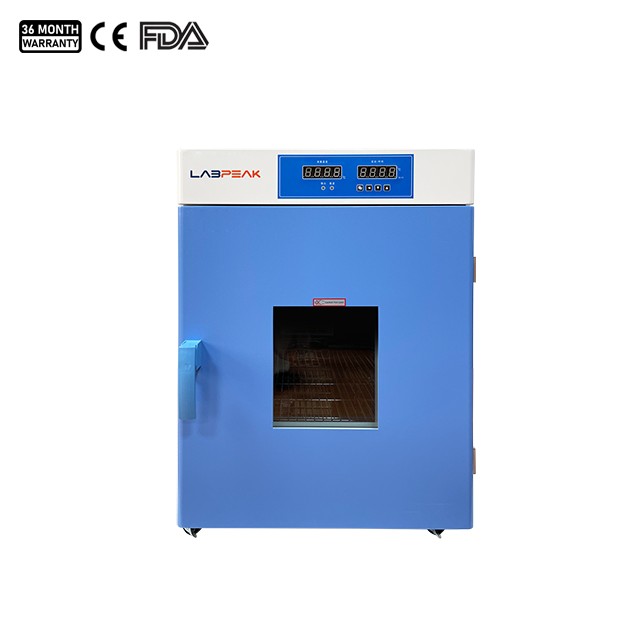

Drying Oven/Incubator (Dual-use)
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Drying Oven/Incubator Feature:
- Exterior: Powder-coated cold-rolled steel for strength and corrosion resistance
- Interior: SUS stainless steel with rounded corners for easy cleaning
- Airflow system: Rear air inlet and outlet with adjustable air volume
- Door design: No inner glass door; outer door features a viewing window
- Heating control: Automatically adjusts power according to set temperature
- Control system: LED digital display with PID temperature controller
- Shelving: Pull-out adjustable shelves for flexible loading
Drying Oven/Incubator Specifications:
| Model | DOIL-P50E | DOIL-P80E | DOIL-P150E | DOIL-P250E | |
| Capacity(L) | 50 | 80 | 150 | 250 | |
| Temperature Range | Incubator:RT +5° C -80° C; | ||||
| Drying oven: 80-200° C | |||||
| Size (W×D×H) | Internal(mm) | 357×356×419 | 420×416×499 | 498×500×600 | 598×582×713 |
| E×ternal(mm) | 540×615×750 | 604×674×830 | 680×771×935 | 782×855×1045 | |
| Temperature | Fluctuation | ±0.5 ℃ | |||
| Uniformity | Incubator: ≤ ±1 ℃; | ||||
| Drying oven: ≤ ±2.5% of the maximum working temperature | |||||
| Internal Circulation Method | forced convection | ||||
| Security Alarm | Over temperature alarm, temperature probe damage alarm | ||||
| Number of Shelf (pcs) | 2 | ||||
| Timer(min) | 0-9999 | ||||
| Safety Device | Leakage protector/Over- temperature alarm | ||||
| Electricity | Voltage/Frequency | 220/110 V, 50/60 Hz | |||
| Power (W) | 700 | 1200 | 1500 | 2000 | |
| G.W.(kg) | 56 | 71 | 92 | 116 | |
| Shipping Size (W×D×H)(mm) | 600×720×900 | 670×740×990 | 740×840×1080 | 860×940×1210 | |
| Optional | Independent external temperature protection device. | ||||
Applications of Drying Oven:
- Can be used to quickly dry a variety of samples to the desired level, e.g. chemical reagents, biological samples, etc.
- Used for culturing microorganisms, cells and tissues, providing a constant temperature and humidity environment to promote their growth and reproduction.
- Widely used in laboratories in biology, chemistry, medicine and other fields
WHY Labpeak
- 36 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
FAQ
What is a drying oven in a laboratory?
A drying oven in a laboratory is a piece of equipment designed to remove moisture from samples or materials by subjecting them to controlled heat.
What is the basic principle of drying oven?
The basic principle of a drying oven is to use controlled heat to remove moisture from samples or materials placed inside the oven. By increasing the temperature within the oven chamber, the water molecules in the samples gain energy, causing them to evaporate and escape into the surrounding air. This process continues until the moisture content of the samples reaches the desired level, effectively drying them. The oven’s ventilation system helps to remove the moist air and maintain a dry environment within the chamber.
