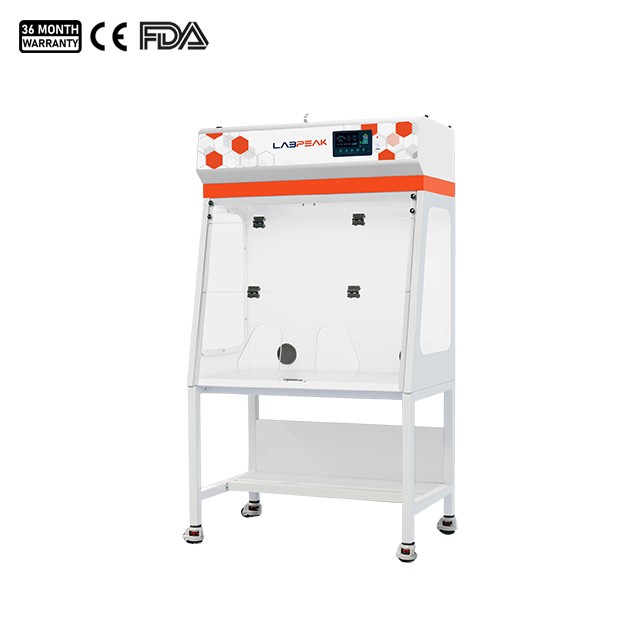

Ductless Fume Hood, TouchScreen

Ductless Fume Hood Feature:

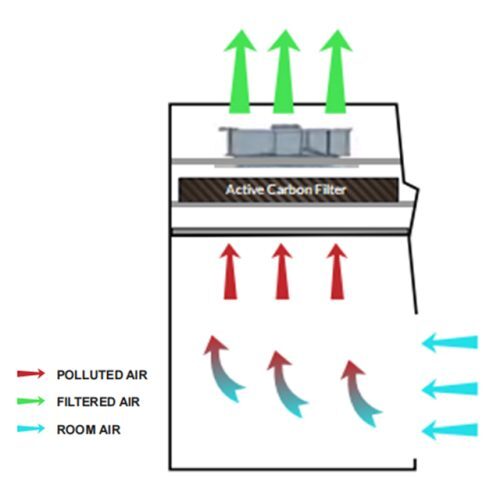

Active carbon filter included for effective adsorption of harmful gases and particles, ensuring operator and environmental safety.
7-inch color LCD touchscreen displaying air velocity, VOC level, temperature, humidity, and filter status.
Real-time monitoring with alarm system for airflow and filter saturation.
Low-noise operation using a high-quality DC centrifugal blower.
Three-sided transparent acrylic window for clear observation.
Optional LED lighting with Ra98 color rendering and RG0 blue-light protection.

Ductless Fume Hood Specification:

Model		FMH-DL-LP1000	FMH-DL-LP1200
External Size (WxDxH)(mm)		1000×620×1800	1200×620×1800
Internal Size (WxDxH)(mm)		980×540×775	1180×540×775
Max.Opening		650 mm
Operation Surface Height		690 mm
Control System		7-inch color touch screen,real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc
Airflow System	Airflow Velocity	0.4-0.6m/s, speed adjustable
Air filtration System	Filter	1pcs Pre-filter, Polyester fiber, washable	2pcs Pre-filter, Polyester fiber, washable
Air filtration System	Filter	1pcs Active Carbon filter	2pcs Active Carbon filter
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 Stainless Steel, Max.loading of worksurface: 70 kg
	Front Window	Manual acrylic window
Electrical System	LED Lamp	16 W×2
	Blower	DC Centrifugal blower, adjustable speed, low noise
	Consumption	60 W	120 W
	Power Supply	220V±10%, 50/60Hz; 110V±10%, 60Hz
Sound Emission		≤50dB(A)
Standard Accessory		1. Base Stand; 2. Active Carbon Filter; 3. Pre-Filter; 4. LED Lamp×2
Optional Accessory		1. Base cabinet; 2. HEPA filter; 3. Chemical filter; 4. Upgraded LED Lamp; 5. Solid Physicochemical Board Work Surface
Net Weight (kg)		96	113
Gross Weight (kg)		138	160
Shipping Size (WxDxH)(mm)		1160×840×1320	1360×840×1320
Shipping Volume (m³)		1.3	1.5
