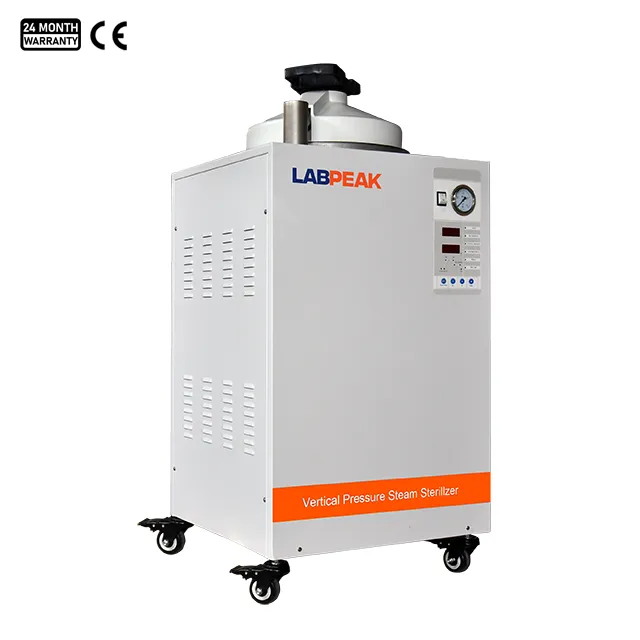

Economical Vertical Pressure Steam Sterilizer

Vertical Pressure Steam Sterilizer Feature:

Overheat protection: Auto-shutoff with alerts when overheated.
Anti-burning protection: Stops heating when water is low, with alerts.
Interlock safety: Prevents operation if the door isn’t closed or chamber is pressurized.
Steam pressure valve: Activates when pressure exceeds safe levels.
PID-controlled sterilization with LED display.
Positive pulsing ensures efficient air removal.
Auto air discharge prevents liquid boil-overs and explosions.
Power-off memory for continued operation after power is restored.

Vertical Pressure Steam Sterilizer Specifications:

Model	STL-PV50E	STL-PV80E	STL-PV100E	STL-PV120E	STL-PV150E
Capacity	50L	80L	100L	120L	150L
External Size (WxDxH)(mm)	476x616x990	546x688x1030	566x708x1295	620x760x1190	680x820x1180
Chamber Size (ØxH)(mm)	Ø316×667	Ø386×695	Ø400×800	Ø450×760	Ø500×780
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Dissolution Temperature	40~100℃
Warming Temperature	40~60℃
Temp.Accuracy	0.1℃
Designed Pressure	0.3Mpa
Max.Sterilization Pressure	0.23Mpa
Sterilization Time Range	0~99min
Temp. Controller	PID control by microprocessor
Display	LED display
Drying Function	YES
Drying Time	15min
Sterilization Program	●High temperature instrument program
	●Low temperature instrument program
	●Culture medium sterilization warming program
	●Culture medium dissolution warming program
Water Injection Method	Manual
Power Consumption	3KW	4.5KW	5.4KW	5.4KW	9.3KW
Power Supply	220V 50Hz	220V 50Hz	220V 50Hz	380V 50Hz	380V 50Hz
Standard SS Basket	2pcs	2pcs	2pcs	2pcs	2pcs
Net Weight	55kg	65kg	80kg	165kg	185kg
Gross Weight	90kg	100kg	120kg	205kg	225kg
Shipping Size (WxDxH)(mm)	730x700x1250	800x770x1300	800x770x1480	950x900x1280	950x900x1440
