- Model : BAL-PHM110; BAL-PHM105; BAL-PHM102; BAL-PHM1104;
- Max. Capacity: 110 g
- Readability (g): 0.01; 0.005; 0.002; 0.001
- Sensor: PT100 and HBM sensor
- Pan Size: Φ90 mm
- Heating Source: Halogen Lamp×1; Infrared lamp×1

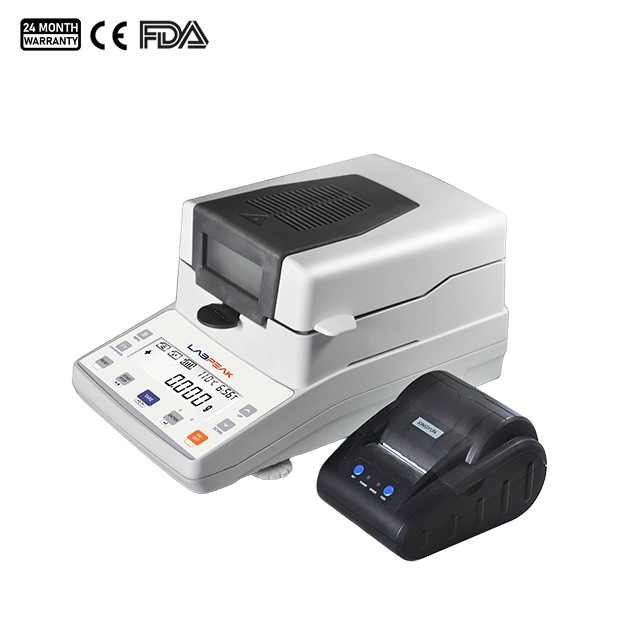

Halogen Moisture Analyzer PHM Series
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Classic halogen moisture analyzer for the rapid and precise determination of material moisture content. With stable and reliable performance, user-friendly operation, and high cost-effectiveness, it has become the preferred solution for routine moisture testing across various industries. meeting rapid quality control needs in a wide range of settings, including laboratories, production facilities, and storage sites. Widely deployed in laboratories, production facilities, and storage sites to address rapid quality control needs
Halogen Moisture Analyzer Feature:
- Annular halogen lamp/infrared lamp, combined with a multi-layer stainless steel heating chamber, the system ensures uniform heating and rapid drying of samples.
- Precision temperature control module ensures stable and reliable drying condition.
- Aluminum shell and stainless steel chamber, resistant to interference and corrosion, suitable for long-term operation in diverse environments
- Wide-viewing-angle LCD high-definition backlit display, simultaneously displaying key data. Such as moisture content percentage and drying residue percentage, providing clear and intuitive readings
- Customizable temperature and time settings.
- Capable of storing multiple drying programs and equipped with a standard RS232 interface, facilitating data recording and traceability.
Optional accessories such as aluminum box, printer, grinder are available to meet sample preparation and mobile testing needs
Halogen Moisture Analyzer Specification:
| Model | BAL-PHM110 | BAL-PHM105 | BAL-PHM102 | BAL-PHM1104 |
| Max. Capacity | 110 g | |||
| Readability (g) | 0.01 | 0.005 | 0.002 | 0.001 |
| Drying Temperature | 40–199 ℃ (1 ℃ temperature increments) | 40–160 ℃ (1 ℃ temperature increments) | ||
| Display | Backlit LCD | High Definition Backlit LCD | ||
| Sensor | PT100 and HBM sensor | |||
| Pan Size | Φ90 mm | |||
| Heating Source | Halogen Lamp×1 | Infrared lamp×1 | ||
| Moisture Readability | 0.20% | 0.10% | 0.04% | 0.01% |
| Dry Readability | 0.20% | 0.10% | 0.04% | 0.01% |
| Time Setting | 1 min 40 s–99 min (10 s Steps) | |||
| Memory Storage | 15 groups | |||
| History Record | – | – | – | 5 groups |
| Ambient Temperature | 5–35 ℃ | 15–30 ℃ | ||
| Heater Power Supply | 220/110±15%V, 50/60 Hz; 400 W | 110 V, 50/60 HZ | ||
| Balance Power Supply | Input: 220/110 V, 50/60 Hz; Output: 9V | 110 V, 50/60 HZ | ||
| Calibration | External Calibration | |||
| Interface | RS232 (Standard) | |||
| Optional Accessory | Aluminum box/Printer | |||
| External Size(W×D×H) | 280×250×180 mm | |||
| Package Size(W×D×H) | 490×350×340 mm | |||
| N.W./ G.W. | 6/7.5 kg | |||
What is the principle of halogen moisture balance?
The halogen drying method is based on the principle of thermogravimetric analysis. It determines the moisture content by directly measuring the weight loss of the sample under intense halogen light.
- First, weigh the sample.
- Halogen lamp rapidly heats the sample, causing the moisture to evaporate.
- The moisture analyzer continuously measures the mass loss during the drying process.
- Instrument calculates the moisture content based on the mass loss.
Difference between halogen and infrared moisture analyzer?
The key difference lies in the heating method and performance:
Halogen Moisture Analyzer:
- Heating source: Halogen lamp
- Heating speed: Very fast, reaches set temperature quickly
- Temperature control: More precise and uniform
- Result time: Shorter
- Application: Suitable for routine and high-efficiency testing
Infrared Moisture Analyzer:
- Heating source: Infrared emitter (ceramic/heating element)
- Heating speed: Slower than halogen
- Temperature control: Less uniform
- Result time: Longer
- Application: Suitable for basic or less time-sensitive analysis
