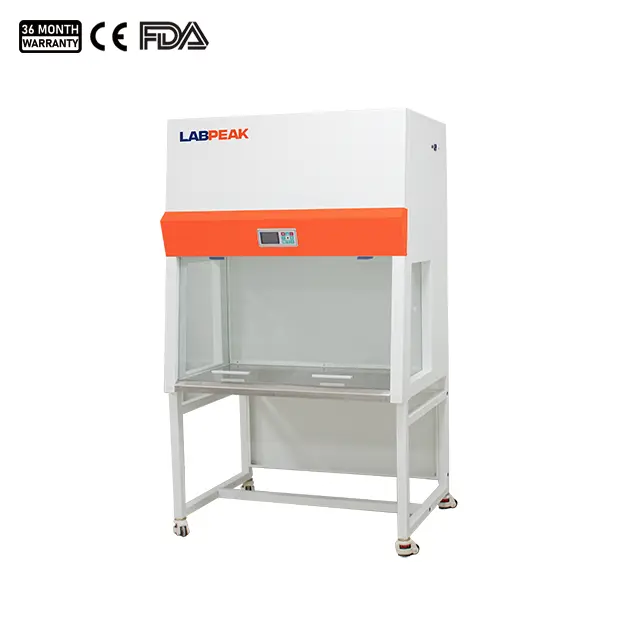

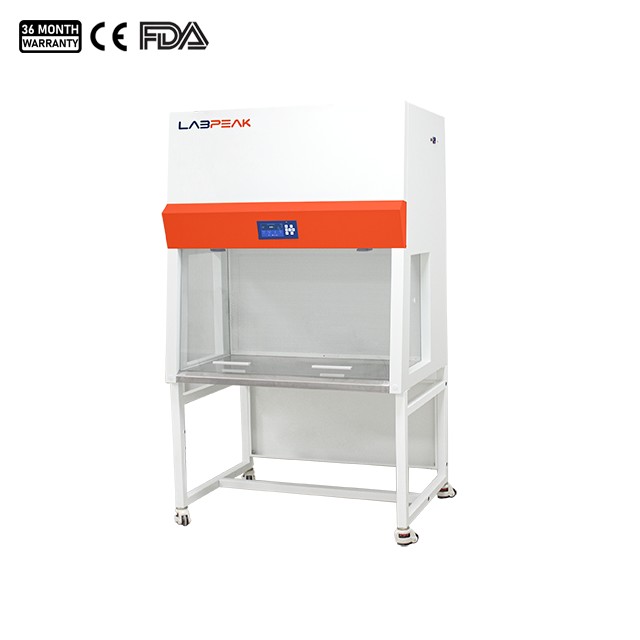

Horizontal Laminar Flow Cabinet

For applications that are not hazardous to operator but require clean work area, choose LCB-H-LP series vertical laminar flow cabinet.

  • Model : LCB-H-LP1100; LCB-H-LP1300; LCB-H-LP1600; LCB-H-LP1900
  • Work Surface Height : 750mm
  • Airflow Velocity : 0.2~0.5 m/s, speed adjustable
  • HEPA Filter Efficiency : 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm

Share the product


Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Category:

The horizontal laminar flow cabinet creates a sterile work environment by directing purified air in a horizontal, unidirectional flow across the work zone, exiting uniformly across the entire open front of the cabinet. This popular product is widely used in laboratories, pharmaceutical manufacturing, and other industries. It is preferred by large laboratories and now available as the best budget option for sale at an affordable price.

Horizontal Laminar Flow Cabinet Features:

  1. Centrally positioned, angled control panel for easy access and viewing.
  2. Brushed stainless steel work surface for easy cleaning.
  3. Indirect lighting design reduces eye strain while maintaining brightness.
  4. Microprocessor controller with LCD displays system status, filter, and UV life.

Horizontal Laminar Flow Cabinet Specifications:

Model LCB-H-LP1100 LCB-H-LP1300 LCB-H-LP1600 LCB-H-LP1900
Model LCB-H1100 LCB-H1300 LCB-H1600 LCB-H1900
External Size (WxDxH)(mm) 1050x805x1950 1320x805x1950 1625x805x1950 1930x805x1950
Internal Size (WxDxH)(mm) 950x490x574 1220x490x574 1525x490x574 1830x490x574
Work Surface Height 750mm
Control System Display Microprocessor controller with LCD display, display the operating status of each function
Interlock Front sliding sash interlock with fan and UV lamp
Life Indicator HEPA filter and UV life indicators facilitate a timely replacement plan
Airflow System Airflow Velocity 0.2~0.5 m/s, speed adjustable
Air filtration System Pre-Filter 1pcs, Polyester fiber,washable
HEPA Filter 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Cleanliness Grade ISO Class 5 (formerly Class 100)
Cabinet Construction Main Body Electro-Galvanized steel with antimicrobial powder coating
Work Surface 304 Stainless steel
Front Window Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
Side window 5 mm UV resistant tempered glass
Electrical System UV Lamp 20W×1 30W×1 30W×1 18W×2
With timing function from 0 to 999 minutes, Interlock with front sliding sash.
Emission of 253.7 nanometers for best sterilization effect.
LED Lamp 6.5W×1 9.6W×1 9.6W×1 6.5W×2
Consumption 160W 170W 300W 310W
Not include socket loading power consumption
Power Supply AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination ≥900Lux
Sound Emission ≤65dB(A)
Standard Accessory 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2; 5. Air Velocity Sensor.
Optional Accessory 1.Gas Tap; 2. IV Bar with Hooks
Gross Weight (kg) 220 260 300 340
Shipping Size (W×D×H)(mm) 1190x1010x1425 1460x1010x1425 1765x1010x1425 2070x1010x1425
Shipping Volume (m³) 1.7 2.3 2.55 3

Advantages of Horizontal Laminar Flow Cabinet:

  1. The front sliding sash is interlocked with the fan and UV lamp for enhanced safety.
  2. UV sterilization includes a timing function for the UV lamp.
  3. Both the front sash and side windows are constructed from UV-resistant tempered glass.
  4. Independent capacitors are installed for the host and sockets to prevent current overload.
  5. A memory function ensures data retention in case of power failure.
  6. HEPA filter and UV life indicators ensure timely replacements.
  7. Two side glass windows for easy experiment observation.
  8. Pre-filter for extending HEPA filter’s lifetime.
  9. Temperature sensor displays real-time temperature.
  10. Waterproof socket for small instrument convenience.

Application of Horizontal Laminar Flow Cabinet:

  1. Laminar flow cabinets create sterile workspaces for contamination-free operations.
  2. Commonly used in microbiology labs for culture handling and sample preparation.
  3. In pharmaceuticals, they maintain sterility during drug formulation and testing.
  4. Also applied in clinical research, electronics assembly, and laboratory processing.

Horizontal Laminar Flow Cabinet Detail and Packing:

LCD Display UV Lamp Waterproof Socket (IP54)



HEPA Filter Gas Tap (Optional)



Clear display makes it easy to monitor the device’s operating status and parameter settings

We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.

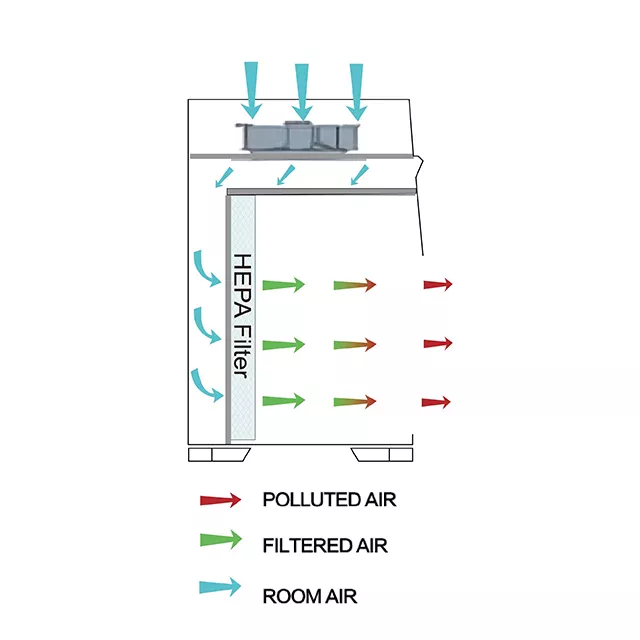

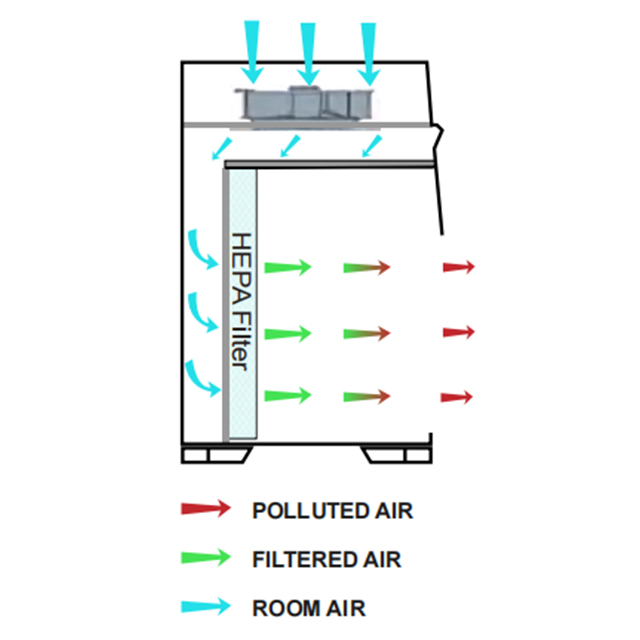

How a horizontal laminar flow cabinet works?

The vertical laminar airflow (Class 100) operates on the principle of downward airflow. Clean air enters the room through HEPA filters installed in the ceiling, then flows downwards in a laminar pattern towards the floor. Finally, the air is exhausted from the room through a grated floor system.

WHY Labpeak

  1. 36 Months Limited Warranty
  2. Help meet FDA, CE quality assurance guidelines
  3. 1-2 Days Handling and 7-30 Days Shipping
