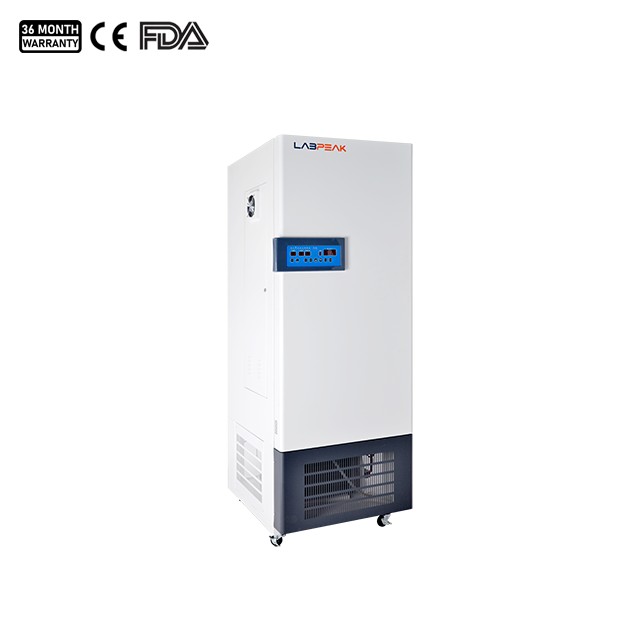

Lighting Incubator

Model: ICBL-P150LY; ICBL-P250LY; ICBL-P350LY; ICBL-P400LY; ICBL-P500LY
Capacity (L): 150; 250; 300; 400; 500
Circulation Mode: Forced convection
Range: With lighting: 10~50°C; without lighting: 5~50°C
Fluctuation: ±0.5 °C

Share the product

Warning

/www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php

341

Lighting Incubator Feature:

Interior: SUS304 stainless steel with rounded edges for effortless cleaning
Airflow: Fan-driven circulation improves temperature consistency
Control: Microprocessor PID system ensures precise temperature regulation
Memory: Retains settings and restarts automatically after power recovery
Mobility: Fitted with casters for convenient relocation
Cooling: Energy-efficient compressor with eco-friendly, fluorine-free refrigerant

Lighting Incubator Specifications:

Model		ICBL-P150LY	ICBL-P250LY	ICBL-P350LY	ICBL-P400LY	ICBL-P500LY
Capacity (L)		150	250	300	400	500
Circulation Mode		Forced convection
Size (WxDxH)	Internal (mm)	420×408×928	470×449×1178	490×464×1278	560×600×1198	660×650×1198
Size (WxDxH)	External (mm)	621×752×1575	672×792×1825	691×807×1925	764×932×1860	864×982×1860
Temperature	Range	With lighting: 10~50°C; without lighting: 5~50°C
	Fluctuation	±0.5 °C
	Resolution	0.1 °C
	Uniformity	±2 °C
Light Source/Lighting Method		LED, 6500K color temperature / 2 sides
Timer		0~99 hours
Material	Internal	SUS304 Stainless steel
Material	External	Cold rolled steel electrostatic spraying exterior
Shelves		3pcs, per shelf loading is 15kg
Refrigerant		R134A (CFC free)
Consumption (W)		1000	1500	2000	2500	3000
Working Environment Temperature		10~30°C
Power Supply		AC 110/220V, 50/60Hz
N.W./G.W. (kg)		139	176	188	218	286
Shipping Size (W×D×H) (mm)		690×870×1720	750×950×1960	760×940×2080	850×1050×2020	960×1090×2020
Safety Device		Over temperature alarm, temp probe damage alarm
Optional		Independent external temperature protection device; RS485 communication serial port; RS485 to USB adapter interface; micro thermal printer or dot matrix printer.

Applications of Lighting Incubator:

Flexible adjustable shelves with a minimum spacing of 30mm to meet different needs.
High quality brushed stainless steel inner liner, anti-corrosion and durable.
Built-in observation window for easy observation and more convenient operation.
Advanced temperature control system to ensure the stability of the temperature inside the box.

Lighting Incubator Packing:

Our lighting incubators come in sturdy packaging to ensure that the equipment is safe and undamaged during transport. Packaging materials are carefully selected to be shock, dust and moisture resistant to ensure that the equipment arrives in perfect condition.
