- Model: CFGL-PDF21HR
- Max speed: 21000r/min
- Max RCF: 48900×g
- Max capacity: 6×500ml
- Temp. Range: -20℃~40℃

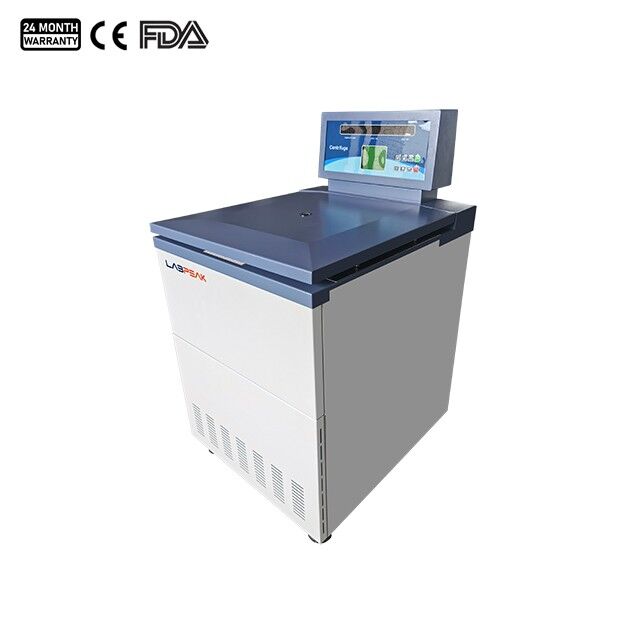

Floor-standing High Speed Refrigerated Centrifuge CFGL-PDF21HR
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
This series of high-speed refrigerated centrifuges features advanced intelligent control and is primarily used for the separation and collection of bacteria, cell debris, whole cells, large organelles, sulfate precipitates, and immune complexes.
High Speed Refrigerated Centrifuge Feature:
- Driving: Powered by a brushless AC variable-frequency motor, equipped with a soft braking system to protect samples from disturbance.
- Speed Control: Reaches maximum speed in approximately 14 seconds, with a deceleration time of about 15 seconds from full speed.
- Display: Operated via a microprocessor with a touch keypad, featuring both LED and LCD digital displays. The most recent program is saved automatically, and RCF can be set directly.
- Cooling: Utilizes a fully CFC-free compressor with a control valve for environmental protection. It offers low vibration, rapid cooling, and quiet operation.
- Rotor: Includes standby cooling to maintain the rotor at the desired temperature. Rotors can be autoclaved at 121°C for 20 minutes.
- Body Structure: Constructed with a high-quality steel exterior and a stainless steel chamber.
- Safety Protection: Equipped with a rotor identification system and multiple safety features, including lid locking during operation, as well as protection against overspeed, overtemperature, and imbalance.
- Control: Provides 10 levels of acceleration and deceleration, supports storage and recall of up to 40 programs, and includes both continuous and short-time operation modes for flexible centrifugation.
High Speed Refrigerated Centrifuge Specifications:
| Model | CFGL-PDF21HR |
| Max speed | 21000r/min |
| Max RCF | 48900×g |
| Max capacity | 6×500ml |
| Speed accuracy | ±20r/min |
| Time setting | 0~99h 59min 59s |
| Temp. Range | -20℃~40℃ |
| Temp. Accuracy | ±1℃ |
| Noise | ≤65dBA |
| Power supply | AC 220V 50Hz 15A |
| Sizes(W×D×H)(mm) | 710×820×1200 |
| Packing Size (W×D×H)(mm) | 960×840×1400 |
| N.W./G.W. (kg) | 255/290 |
Matched Rotors:
| Rotor Type | Max Speed | Max Volume | Max RCF |
|---|---|---|---|
| Angle rotor | 21000r/min | 16×10ml | 48900×g |
| Angle rotor | 20000r/min | 6×50ml | 43000×g |
| Angle rotor | 15000r/min | 8×50ml | 27870×g |
| Angle rotor | 12000r/min | 8×100ml | 19830×g |
| Angle rotor | 12000r/min | 4×250ml | 19960×g |
| Angle rotor | 8000r/min | 6×500ml | 12580×g |
| Angle rotor | 10000r/min | 6×300ml | 18500×g |
Application of High Speed Refrigerated Centrifuge:
- Molecular biology: Extraction and purification of nucleic acids (DNA and RNA).
- Cell biology: Isolation of organelles, viruses and bacteria.
- Biochemistry: For protein precipitation and purification.
- Clinical medicine: Separation of blood components such as plasma and serum.
- Drug discovery: For drug screening and metabolite analysis.
- Environmental Science: analysis of microorganisms and particulate matter in water and soil samples.
- Food Science: Detection and separation of trace components and contaminants in food.
High Speed Refrigerated Centrifuge Packing:
The high speed refrigerated centrifuge is professionally packed to ensure safety during transport and packaged with a sturdy foam liner and a durable outer box. The outside of each package is marked with anti-tilt and fragile markings to remind transporters to handle it with care. Co-operate with reputable logistics companies to ensure safe and timely delivery of the equipment to customers and provide full tracking service to ensure the equipment is in good condition.
