- Model: SPL-PDUVL7
- Wavelength Range: 190-1100nm
- Wavelength Accuracy: ±0.5nm
- Wavelength Repeatability: ≤0.2nm
- Size(W×D×H)(mm): 565x395x240

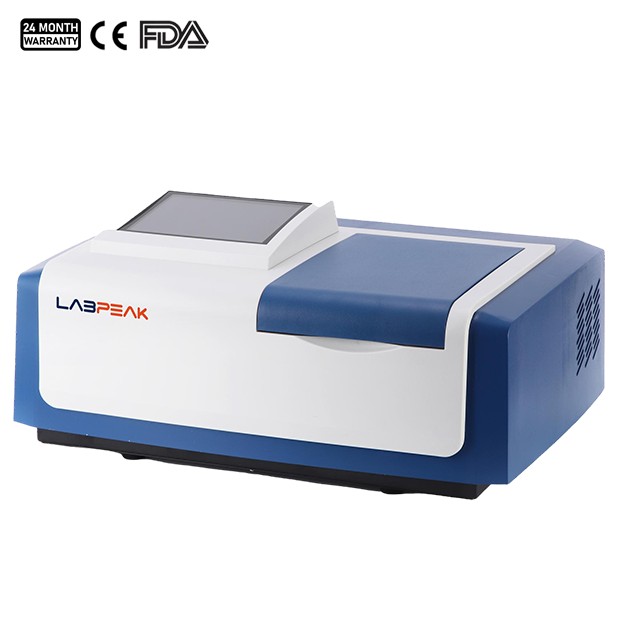

Touch Screen UV-Vis Spectrophotometer
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
The SPL-PDUVL7 is a high-precision, easy-to-operate UV-Vis spectrophotometer designed for diverse sample analysis. It adopts a dual-lamp system and a Czerny-Turner monochromator, forming a compact and stable optical structure for efficient performance. The instrument delivers excellent spectral quality, with low stray light, high wavelength accuracy, and reliable photometric repeatability.
UV Vis Spectrophotometer Feature:
- Dual-beam optical design ensures stable and accurate measurements.
- SP-DUVL7 delivers high precision with strong cost performance.
- 8-inch color touchscreen with advanced, user-friendly interface.
- Reliable performance for both qualitative and quantitative analysis.
- Integrated power protection system for safe and stable operation.
- Large memory capacity stores results with automatic data correction.
- Supports external printer for convenient result output.
- USB connectivity enables seamless PC integration.
UV Vis Spectrophotometer Specifications:
| Model | SPL-PDUVL7 |
| Photometry | Double Beam |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160mm |
| Grating | 1200 lines/mm |
| Detector | Silicon Photocell |
| Spectrum Bandwidth | 1.8nm |
| Wavelength Setting | 8-inch color touch-screen |
| Wavelength Range | 190-1100nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Scanning Speed | Fast-Medium-Slow |
| Stray Light | ≤0.03%T (at 220nm NaI, 360nm NaNo2) |
| Photometric Range | 0.0-200.0%T |
| -0.301-4.000A | |
| 0.000-9999C | |
| Photometric Accuracy | ±0.3%T |
| ±0.002Abs (0-0.5A) | |
| ±0.004 Abs (0.5-1A) | |
| Photometric Repeatability | ≤0.15%T |
| 0.001 Abs (0-0.5A) | |
| 0.002 Abs (0.5-1A) | |
| Baseline | ≤±0.002A (200-1090nm) |
| Noise | 100%(T) noise ≤0.15%(T), 0%(T) noise ≤0.1%(T) |
| Drifting | ≤0.0009 Abs/30min (250nm and 500nm after 2h warm up) |
| Power | AC220V±22V 50Hz±1Hz, 200W |
| Size(W×D×H)(mm) | 565x395x240 |
| Shipping Size(W×D×H)(mm) | 710×590×505 |
| N.W./G.W. (kg) | 17/36 |
UV-Vis Spectrophotometer Packing:
This UV-Vis spectrophotometer is packed in a sturdy wooden case with foam lining, shock and impact resistant. Cooperate with reputable logistics companies to provide full tracking. Free repair or replacement for transport damage to ensure safe delivery.
WHY Labpeak
- 24 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
FAQ
Difference between a UV spectrophotometer and a VIS spectrophotometer?
A UV spectrophotometer measures absorbance of light in the ultraviolet range (typically 200-400 nm), while a VIS spectrophotometer measures absorbance of light in the visible range (typically 400-700 nm). The key difference lies in the wavelength range of light they analyze.
What is the principle of UV-vis spectrophotometer?
Using a light source to illuminate a sample with light spanning the UV to visible wavelength range (usually 190 to 900 nm), ultraviolet visible (UV-Vis) spectrophotometers are utilized. The light that the sample absorbs, transmits, or reflects at each wavelength is then measured by the instruments.
Applications of UV-visible spectroscopy?
It has some specific applications include measuring the concentration of substances such as protein, DNA or RNA, bacterial cell formation, and enzymatic reactions.
