- Model: UFZL-P86V420E; FZL-P86V570E; FZL-P86V850E
- Capacity (L): 420; 570; 850
- Temperature Range: -40 to -86 °C
- Temperature Display Accuracy: 0.1 °C
- Cooling Mode: Direct cooling

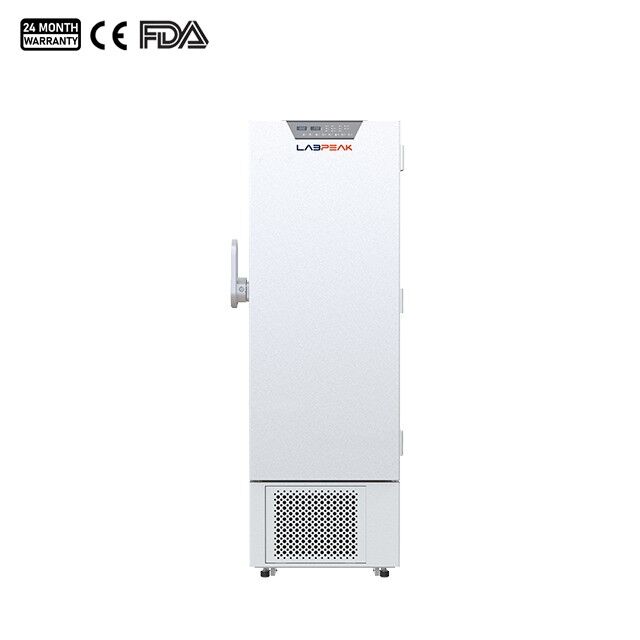

Ultra-Low Temperature Freezer
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Ultra-low temperature freezers strictly adhering to management guidelines for clinical laboratories and bio-repositories. Designed for the deep cryogenic preservation of biological samples—including viruses, nucleic acids, tissues, cells, blood products, and vaccines. It meets the standardized storage requirements of medical institutions, medical laboratories, bio-repositories and research organizations.
-86℃ ULT Freezer Feature:
- A microcomputer-based intelligent control system ensures precise temperature regulation. Combined with a wide-voltage design and power-off memory/backup battery functionality.
- Internationally renowned variable-frequency compressor, paired with an eco-friendly hydrocarbon (HC) refrigeration system that is entirely free of CFC pollution. Highly efficient and energy-saving, with quiet and sustainable operation, reducing long-term operating costs.
- Inner door adopts stainless steel + galvanized steel sheet + foam laver design. Significantly minimizes cold loss, thereby conserving energy and preventing condensation on the exterior walls.
- Interior liner and inner door structure constructed from 304 stainless steel, featuring antimicrobial, corrosion-resistant, and easy-to-clean properties. Meets high-standard hygiene requirements and effectively prevents cross-contamination of samples.
- Supports dual-user, dual-lock management (featuring both a built-in door lock and a padlock port). Combined with a pneumatic pressure equalization port on the door and a test port on the cabinet body, balances operational convenience with sample security, fully complying with regulations for the storage of medical and biological samples.
- Features an integrated, comprehensive intelligent alarm system with dual audio-visual alerts. Equipped with universal casters featuring brakes, ensuring both effortless mobility and secure positioning, easily adapt to various spatial layouts.
- Certified under ISO 9001, 13485, 14001, and 45001 international standards, empowering scientific research and clinical practice through superior quality.
Ultra-Low Temperature Freezer Specifications:

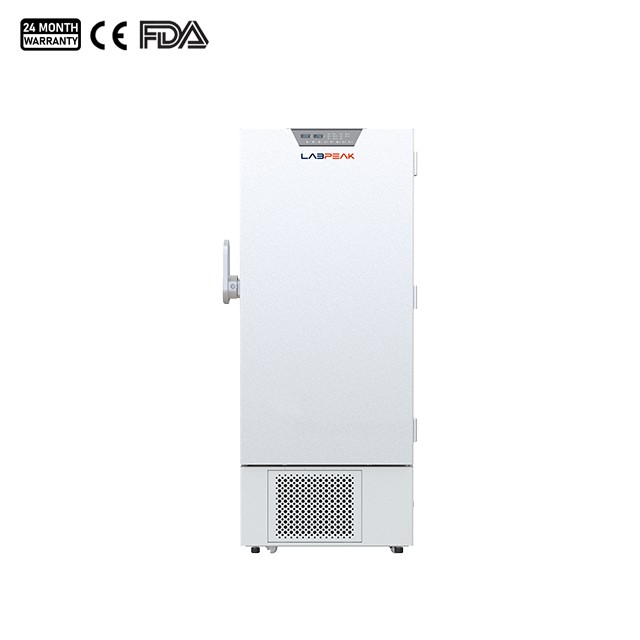

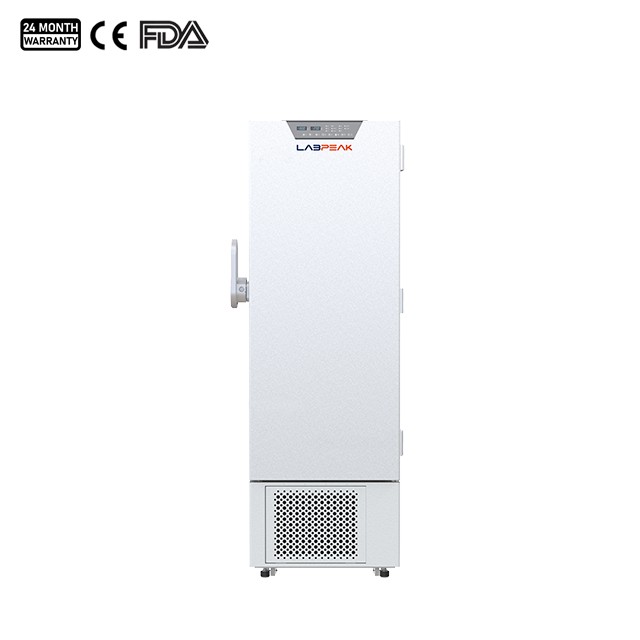

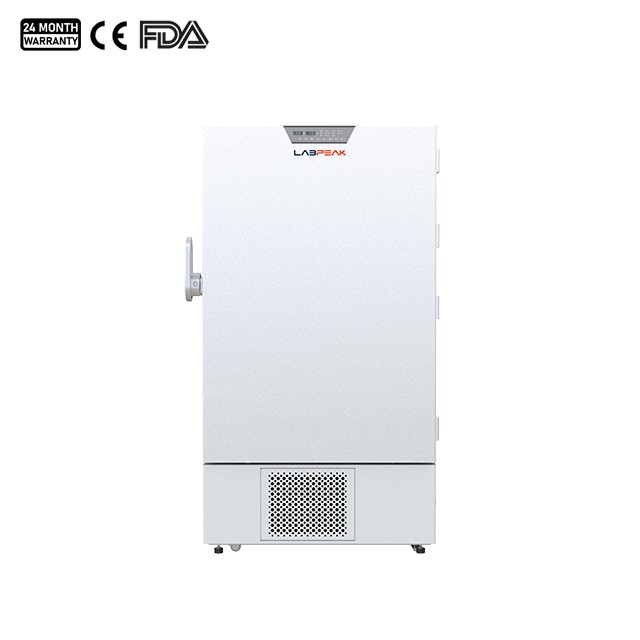

| Model | UFZL-P86V420E | FZL-P86V570E | FZL-P86V850E |
| Capacity (L) | 420 | 570 | 850 |
| Temperature Range | -40 to -86 °C | ||
| Temperature Display Accuracy | 0.1 °C | ||
| Sensor | PT1000 | ||
| Cooling Mode | Direct cooling | ||
| Cooling Liquid | Green cooling liquids (R290/100 g, R170/78 g) | Green cooling liquids (R290/110 g, R170/86 g) | Green cooling liquids (R290/120 g, R170/100 g) |
| Defrost Mode | Manual defrost | ||
| Compressor Qty | 2 | ||
| Stainless Steel Shelve | 3 | ||
| Inner Door | 4 | ||
| Rack | 12(5×5) | 16(5×5) | 24(5×5) |
| Storage Capacity (2 Inches Boxe) | 300 | 400 | 600 |
| Samples (2 mL) | 30000 | 40000 | 60000 |
| Consumption (W) | 650 | 650 | 700 |
| Daily Power Consumption (W) | 7.85 | 7.35 | 8.15 |
| Noise (dB) | 39 | 39 | 42 |
| Power Supply | AC 220/110 V, 50/60 Hz | ||
| Display | Digital tube display | ||
| Inside Material | SUS304 | ||
| Outside Material | Zinc-iron alloy spray coating | ||
| Alarm | High/low temperature, Power failure, Abnormal voltage, Sensor error, Filter screen check, Thermostat failure, Low battery, Condenser clean, High ambient temperature, Door ajar, 24 h Power failure alarm (For controller) | ||
| Exterior Size (W×D×H)(mm) | 750×955×1987 | 900×955×1987 | 1172×955×1987 |
| Package Size (W×D×H)(mm) | 832×1110×2150 | 990×1110×2150 | 1254×1110×2150 |
| Accessory | 4 pcs Castor; | ||
| 2/25mm Test hole QTY/diameter; | |||
| USB port; | |||
| Data logger; | |||
| Remote alarm port; | |||
| Optional Accessory | RS485 por; | ||
| CO2 back up system; | |||
| LN2 back up system; | |||
| N.W./G.W. (kg) | 292/332 | 325/370 | 380/436 |
FAQ
Difference Between Laboratory ULT Freezer and Freezers
-86℃ ULT freezers are a specialized subset of laboratory freezers designed for ultra-low temperature storage of sensitive biological samples, offering significantly lower temperatures, higher stability, and more advanced systems than standard laboratory freezers.
What is the service life?
Is regular maintenance required?
How should samples be properly stored and retrieved?
Does opening the door affect the temperature?
