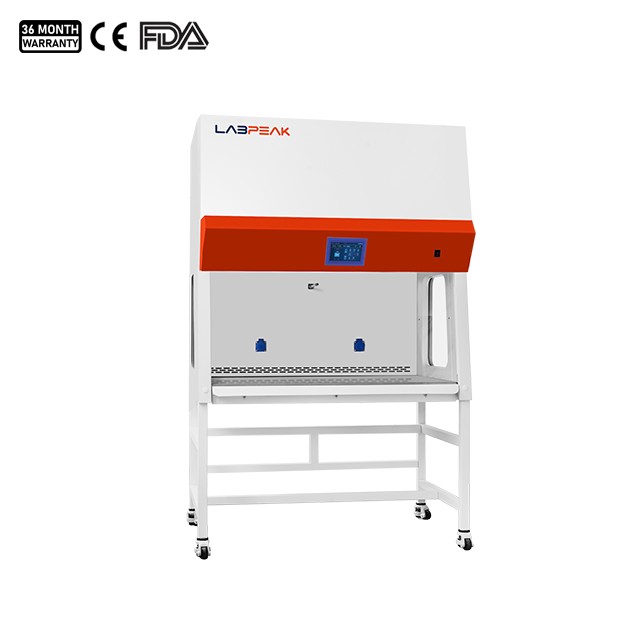

Vertical Laminar Flow Cabinet, Touch Screen

Vertical Laminar Flow Cabinet, Touch Screen

The LCB-V1300I vertical laminar flow cabinet is a highly efficient product designed to protect equipment and other contents of the work area from particulate matter.

  • Model : LCB-V-LP800I; LCB-V-LP1100I; LCB-V-LP1300I; LCB-V-LP1500I; LCB-V-LP1800I
  • Max Opening 300 mm
  • Work Surface Height 730 mm
  • Airflow Velocity 0.3-0.5m/s, speed adjustable

Share the product


Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
分类：

Vertical Laminar Flow Cabinet Feature:

Microcomputer control:

  1. Touchscreen control with LCD human–machine interface.
  2. Real-time display of front window and system operating status.
  3. Shows date, time, temperature, HEPA filter life, and UV lamp life.
  4. Programmable UV sterilization with timing function.
  5. Safety status display with audio-visual alarms and operation logs.
  6. Three-level user access for function and parameter management.
  7. Power-failure memory restores previous settings automatically.

Humanised design:

  1. Removable stainless steel work surface for easy cleaning and disinfection.
  2. Transparent side windows for clear multi-angle observation.
  3. 10° inclined front window design improves ergonomic comfort.
  4. Base stand with leveling casters for easy movement and secure positioning.
  5. Low-noise, energy-efficient AC blower with thermal protection.
  6. Antibacterial coating inhibits microbial growth on cabinet surfaces.
  7. Built-in air velocity sensor for real-time monitoring and control.
  8. Dual-filter system with pre-filter extending HEPA filter lifespan.

Safety design:

  1. lower with overheat and overload protection.
  2. UV lamp safety button protection.
  3. Motorized tempered glass front window with dual limit protection.
  4. Front window descent delay with sound alert to prevent pinching.
  5. Audio-visual alarms for abnormal airflow, filter failure, UV fault, and unsafe window height.
  6. Interlock system between UV lamp, blower, LED light, and front window.

Vertical Laminar Flow Cabinet Specification:

Model LCB-V-LP800I LCB-V-LP1100I LCB-V-LP1300I LCB-V-LP1500I LCB-V-LP1800I
External Size (W×D×H)(mm) 800×750×1870 1100×750×1870 1300×750×1870 1500×750×1870 1800×750×1870
Internal Size (W×D×H)(mm) 700×660×560 1000×660×560 1200×660×560 1400×660×560 1700×660×560
Max Opening 300 mm
Work Surface Height 730 mm
Control System Display LCD touch screen
Alarm Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height)
Airflow System Airflow Velocity 0.3-0.5m/s, speed adjustable
Air Volume 794 m³/h (467CFM) 1134 m³/h (667CFM) 1361 m³/h (801CFM) 1588 m³/h (934CFM) 1928 m³/h (1135CFM)
Air filtration System Pre-Filter 1pcs, Polyester fiber,washable, Filtration efficiency: G3
HEPA Filter 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Cleanliness Grade ISO Class 5 (formerly Class 100)
Partial air circulation Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Cabinet Construction Main Body Electro-Galvanized steel with antimicrobial powder coating
Work Surface 304 Stainless Steel
Front Window Automatic Motorized door, tempered glass, Thickness: 5mm
Side window 5 mm UV resistant tempered glass
Electrical System UV Lamp 8W×1 (Emission of 253.7 nanometers for best sterilization effect) 30W×1 (Emission of 253.7 nanometers for best sterilization effect) 40W×1 (Emission of 253.7 nanometers for best sterilization effect)
LED Lamp 8 W×1 10 W×1 20 W×1
Max.Consumption 350 W 360 W (Not include socket loading power consumption) 370 W
Power Supply AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination >580 Lux
Sound Emission <64 dB(A)
Standard Accessory 1.Air Velocity Sensor×1; 2.Pre-Filter×1; 3.HEPA Filter×1; 4.Waterproof Socket×2; 5.LED Lamp×1; 6.UV Lamp×1; 7.Base Stand.
Optional Accessory 1.Foot Switch; 2.Gas Tap; 3.Differential Pressure Sensor; 4.ULPA Filter; 5.Manually Adjustable Base Stand; 6.Upgraded LED Lamp
Gross Weight (kg) 190 220 250 280 300
Shipping Size (W×D×H)(mm) 950×1050×1620 1250×1050×1620 1450×1050×1620 1650×1050×1620 1950×1050×1620
Shipping Volume (m³) 1.7 2.2 2.4 2.9 3.4

Vertical Laminar Flow Cabinet Accessories:

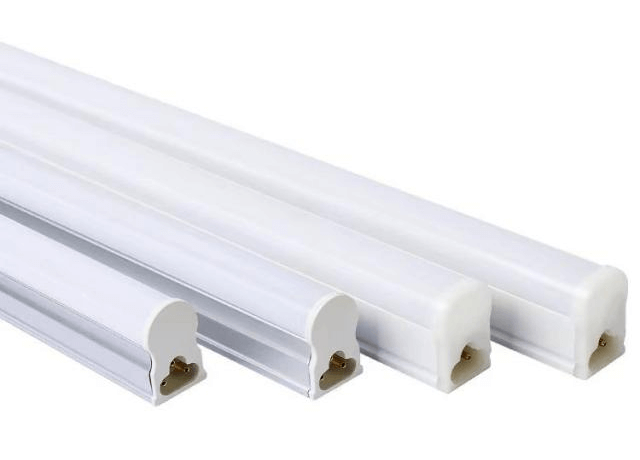

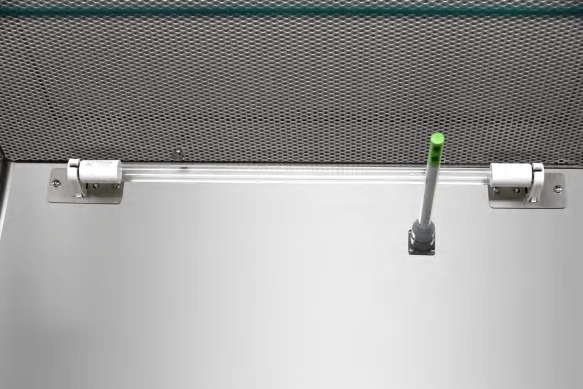

7” LCD Touch Screen Air Velocity Sensor (Standard) Waterproof Socket (IP54) Optional Upgrade LED Lamp

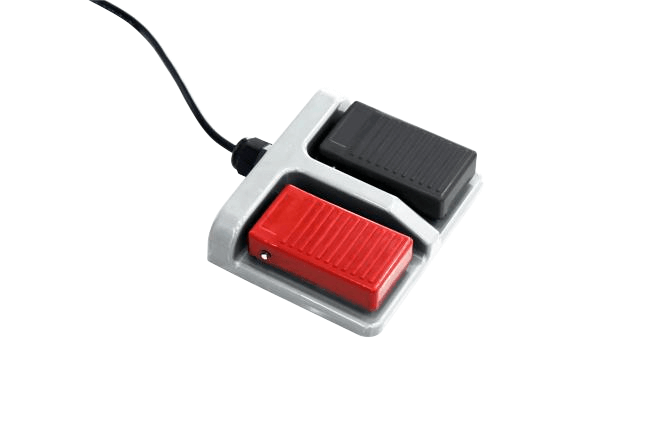

Foot Switch (Optional) RG0 Without Blue Light Ra98 High Color Rendering Index Anti-Glare Eye Protection

WHY Labpeak

  1. 36 Months Limited Warranty
  2. CE & FDA Standards
  3. 1-2 Days Handling and 7-30 Days Shipping
