- Model : STL-PV35L; STL-PV50L; STL-PV75L; STL-PV100L; STL-PV120L; STL-PV150L
- Capacity (L): 35, 50, 75, 100, 120, 150
- Consumption (kW) : 2.5, 3, 4.5, 6
- Rated Working Pressure : 0.22 MPa
- Rated WorkingTemperature : 134 ℃
- Sterilization Temperature Setting Range : 105–134 ℃

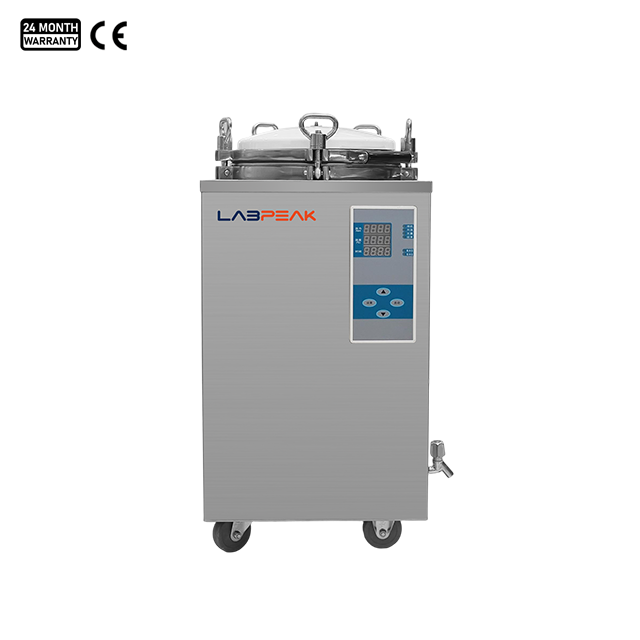

Vertical Pressure Steam Sterilizer, STL-PVL Series
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Vertical Pressure Steam Sterilizer Application:
The STL-PVL Series sterilizer consists of a heating system, a microcomputer control system, an overheat and over pressure protection system. This reliable, energy-efficient and durable sterilizer offers cost-effective solutions for sterilizing surgical instruments, dressings, instruments and culture media in medical, health and research institutions.
Vertical Pressure Steam Sterilizer Feature:
- Bolt type
- Fully stainless steel structure.
- LED display of working status, touch type key.
- Auto discharge the cool air, and steam discharging automaticallyafter sterilization.
- Automatically shut-off with beep reminding after sterilization
- Easy to operate, safe and reliable.
Vertical Pressure Steam Sterilizer Specification:
| Model | STL-PV35L | STL-PV50L | STL-PV75L | STL-PV100L | STL-PV120L | STL-PV150L |
| Capacity (L) | 35 | 50 | 75 | 100 | 120 | 150 |
| Consumption (kW) | 2.5 | 3 | 4.5 | 4.5 | 6 | 6 |
| Power Supply | AC 220/110 V, 50/60 HZ | |||||
| Max Temperature | 138 ℃ | |||||
| Rated Working Pressure | 0.22 MPa | |||||
| Rated WorkingTemperature | 134 ℃ | |||||
| Sterilization Temperature Setting Range | 105–134 ℃ | |||||
| Sterilization Time Setting Range | 0–99 min/ 0–99h 59min | |||||
| Chamber Size (mm) | Φ318×450 | Φ340×550 | Φ400×600 | Φ440×650 | Φ480×660 | Φ510×740 |
| External Size (mm) | 470×450×840 | 520×500×970 | 550×530×990 | 580×560×1060 | 630x610x1130 | 660x640x1130 |
| Shipping Size (W×D×H)(mm) | 540×540×1000 | 580×580×1130 | 610×610×1160 | 640×640×1220 | 690×690×1290 | 730×730×1290 |
| N.W/G.W (kg) | 47/64 | 56/77 | 70/90 | 76/98 | 103/125 | 111/138 |
