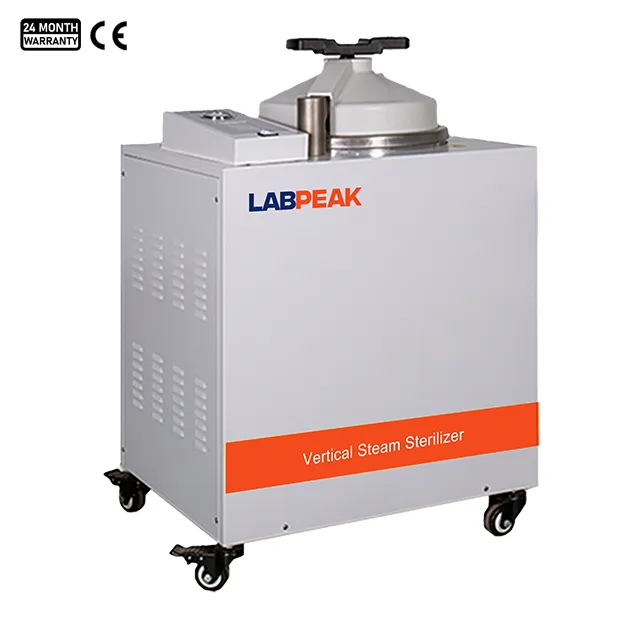

Vertical Pulse Vacuum Autoclave

Vertical Pulse Vacuum Autoclave Feature:

Overheat protection: Auto-shutoff with audible/visual alerts when overheated.
Anti-burning protection: Stops heating with alerts when water is low.
Interlock safety: Prevents operation if door isn’t closed or chamber is pressurized.
Steam pressure valve: Activates if pressure exceeds the limit.
Full automatic cycle (pre-vacuum, sterilization, drying) easily set via LCD touch screen.

Vertical Pressure Steam Sterilizer Specifications:

Model	STL-PV50PV	STL-PV80PV	STL-PV100PV	STL-PV120PV	STL-PV150PV
Capacity	50L	80L	100L	120L	150L
External Size (WxDxH)(mm)	580x636x990	636x710x1030	630x710x1295	700x780x1190	780x850x1180
Chamber Size (ØxH)(mm)	Ø316×667	Ø386×695	Ø386×860	Ø450×760	Ø500×780
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max. Working Temperature	136 ℃
Dissolution Temperature	40~100℃
Warming Temperature	40~60℃
Temp.Accuracy	0.1℃
Temp. Uniformity	≤±0.5℃
Designed Pressure	0.3Mpa
Max.Sterilization Pressure	0.23Mpa
Ultimate Vacuum	-0.096MPa
Pressure Resoluiton	0.1KPa
Sterilization Time Range	0~99min
Temp. Controller	PID control by microprocessor
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	●Medical instrument program
	●Luminal instruments
	●Dressings/Fabric program
	●Rubber program
	●Liquid program
	●BD Test program
	●Vacuum Test progrm
	Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber, liquids plus 4 user-customized programs BD Test and vacuum test.
Water Injection Method	Built-in water tank
Power Consumption	3KW	4.5KW	5.4KW	7.2KW	9.3KW
Power Supply	220V 50Hz	220V 50Hz	220V 50Hz	380V 50Hz	380V 50Hz
Standard SS Basket	2pcs	2pcs	2pcs	2pcs	2pcs
Optional Accessories	Printer,USB port
Net Weight	85kg	95kg	112kg	180kg	210kg
Gross Weight	120kg	130kg	152kg	220kg	250kg
Shipping Size (WxDxH)(mm)	830x840x1250	880x910x1300	880x910x1550	1030x1050x1300	1030x1050x1450
