- Model : STL-PV50V; STL-PV75V; STL-PV100V
- Capacity (L): 50, 75, 100
- Consumption (kW) 4.8, 5, 5.1
- Rated Working Pressure : 0.22 MPa
- Rated WorkingTemperature : 134 ℃
- Sterilization Temperature Setting Range : 105–134 ℃

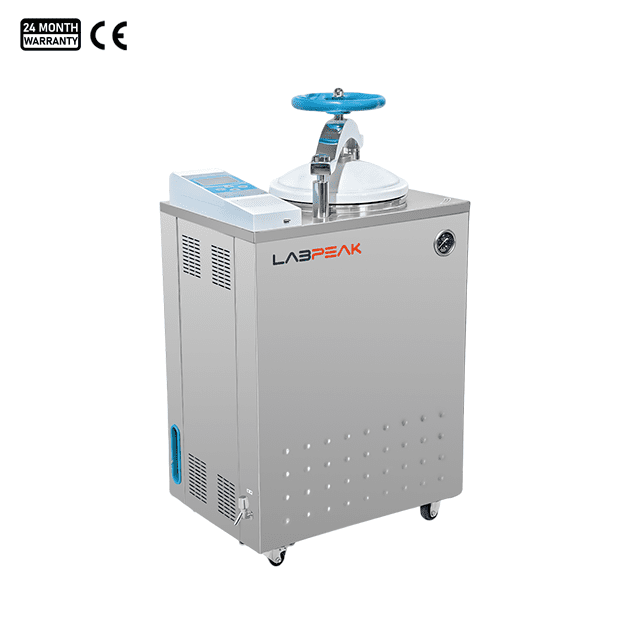

Vertical Pulse Vacuum Pressure Steam Sterilizer
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Vertical Pulse Vacuum Pressure Steam Sterilizer Application:
STL-PVV Series utilizes saturated steam as the sterilization medium. Under pulsed vacuum conditions, through multiple vacuuming and steam injection processes, the steam fully penetrates every corner of the items, achieving a highly efficient sterilization effect. It equipped with an intelligent control system, LCD display and unique internal steam-water circulation system that prevents aerosol generation and maintains a clean, dry environment. STL-PVV Series serves as a professional sterilization device and an ideal choice for modern medical institutions and laboratories.
Vertical Pulse Vacuum Pressure Steam Sterilizer Feature:
- Microcomputer-controlled digital display of working statuses, touch-type key.
- It dynamically shows the temperature, pressure, time, vacuum rate and the cycle status.
- With a fully automatic route of the water inlet, pulse vacuum, heating, sterilizing, draining, exhausting, and vacuum drying.
- Three times pulse vacuum, the vacuum rate would reach -0.081 MPa after that, which ensures the complete extracting of inner air from the dressing and A,B-type hollowed appliance.
- With 4 fixed programs for the appliance, medical dressing, rubber, and fluid, the user also could set the program as they need randomly.
- Multiple-pulse vacuum drying after sterilizing, which ensures an effective sterilizing result.
- Equipped with a 0.22µm bacteria filter, it ensures the air that enters the inner vacuumed chamber is sterile, avoiding the second time contamination.
- Handwheel type for quick opening the door. Self-inflating type seal.
- Adopted with an immersed heating tube with high heating efficiency.
- Steam-water inner circulation system: no steam discharge, and the environment for the sterilizing will be clean and dry.
- Automatically shut off with a beep reminder after sterilization.
- Fully high-quality stainless, equipped with double stainless steel baskets.
Vertical Pulse Vacuum Pressure Steam Sterilizer Specification:
| Model | STL-PV50V | STL-PV75V | STL-PV100V |
| Capacity (L) | 50 | 75 | 100 |
| Consumption (kW) | 4.8 | 5 | 5.1 |
| Power Supply | AC 220/110 V, 50/60 HZ | ||
| Rated Working Pressure | 0.22 MPa | ||
| Rated Working Temperature | 134 ℃ | ||
| Sterilization Temperature Setting Range | 105–134 ℃ | ||
| Sterilization Time Setting Range | 0–99 min/0–99h 59min | ||
| Chamber Size (mm) | Φ340×550 | Φ400×600 | Φ440×650 |
| External Size (mm) | 660×460×1160 | 700×520×1250 | 820×560×1270 |
| Shipping Size (W×D×H)(mm) | 740×550×1270 | 780×600×1410 | 950×680×1430 |
| N.W/G.W (kg) | 114/137 | 142/168 | 168/190 |
