The rotor is one of the most critical components of any centrifuge. While the centrifuge provides the driving force, the rotor directly determines how samples are held, accelerated, and separated. Selecting the appropriate rotor not only improves separation efficiency but also helps protect sample integrity, reduce processing time, and enhance laboratory safety.

Different laboratory applications require different rotor designs. Understanding the characteristics of each rotor type allows researchers to choose the best solution for their workflows and achieve consistent, high-quality results.

Why Centrifuge Rotor Selection is Important

The performance of a centrifuge depends on more than its maximum speed. Rotor design influences centrifugal force distribution, sample capacity, sedimentation efficiency, and overall experiment quality.

A properly selected rotor can help laboratories:

Improve separation accuracy and repeatability
Protect sensitive biological samples
Increase sample throughput
Shorten processing time
Reduce maintenance requirements
Extend centrifuge service life

Whether working with blood samples, cell cultures, nucleic acids, proteins, or industrial samples, choosing the right rotor is essential for reliable performance.

Classification of Centrifuge Rotors

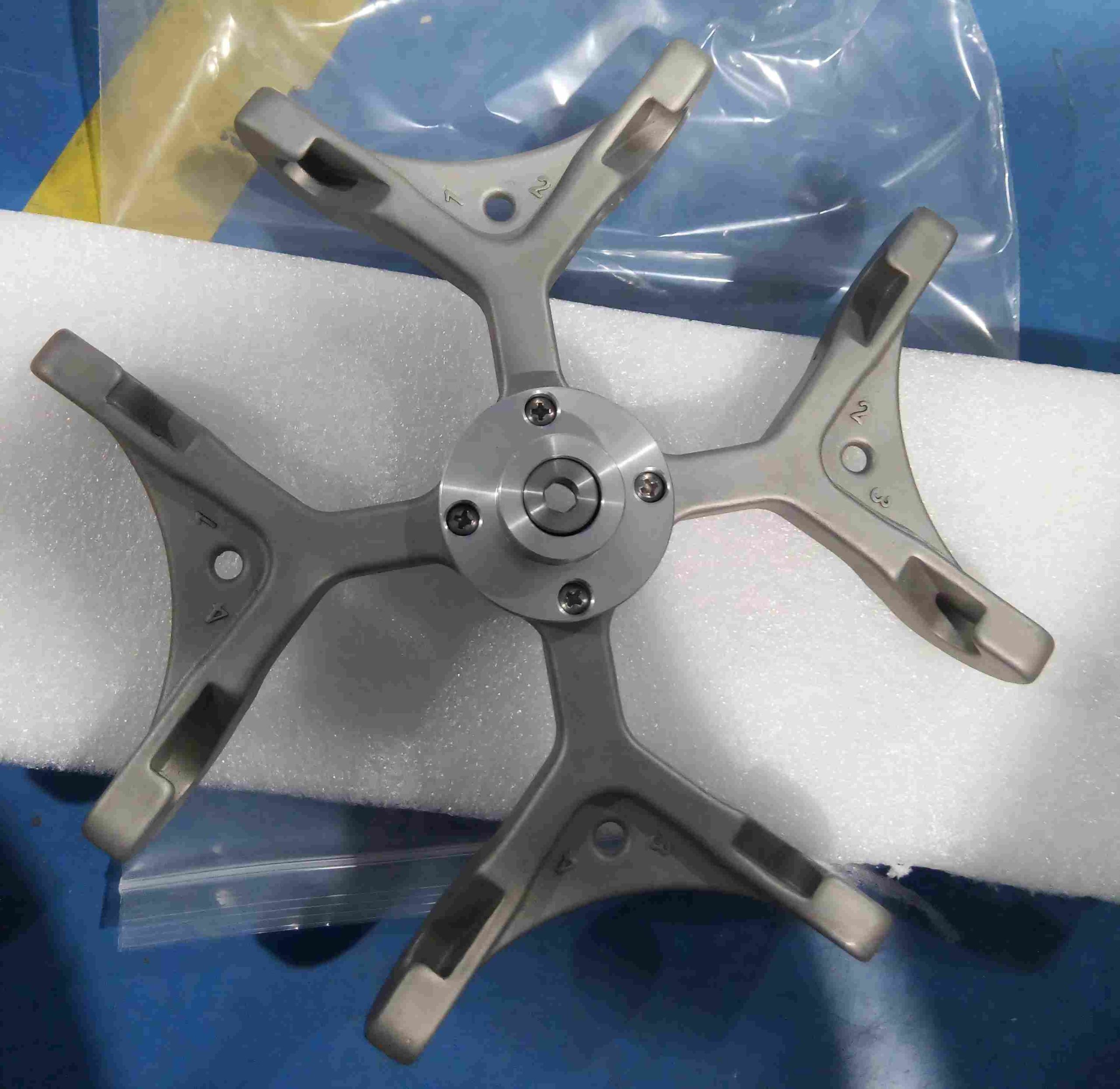

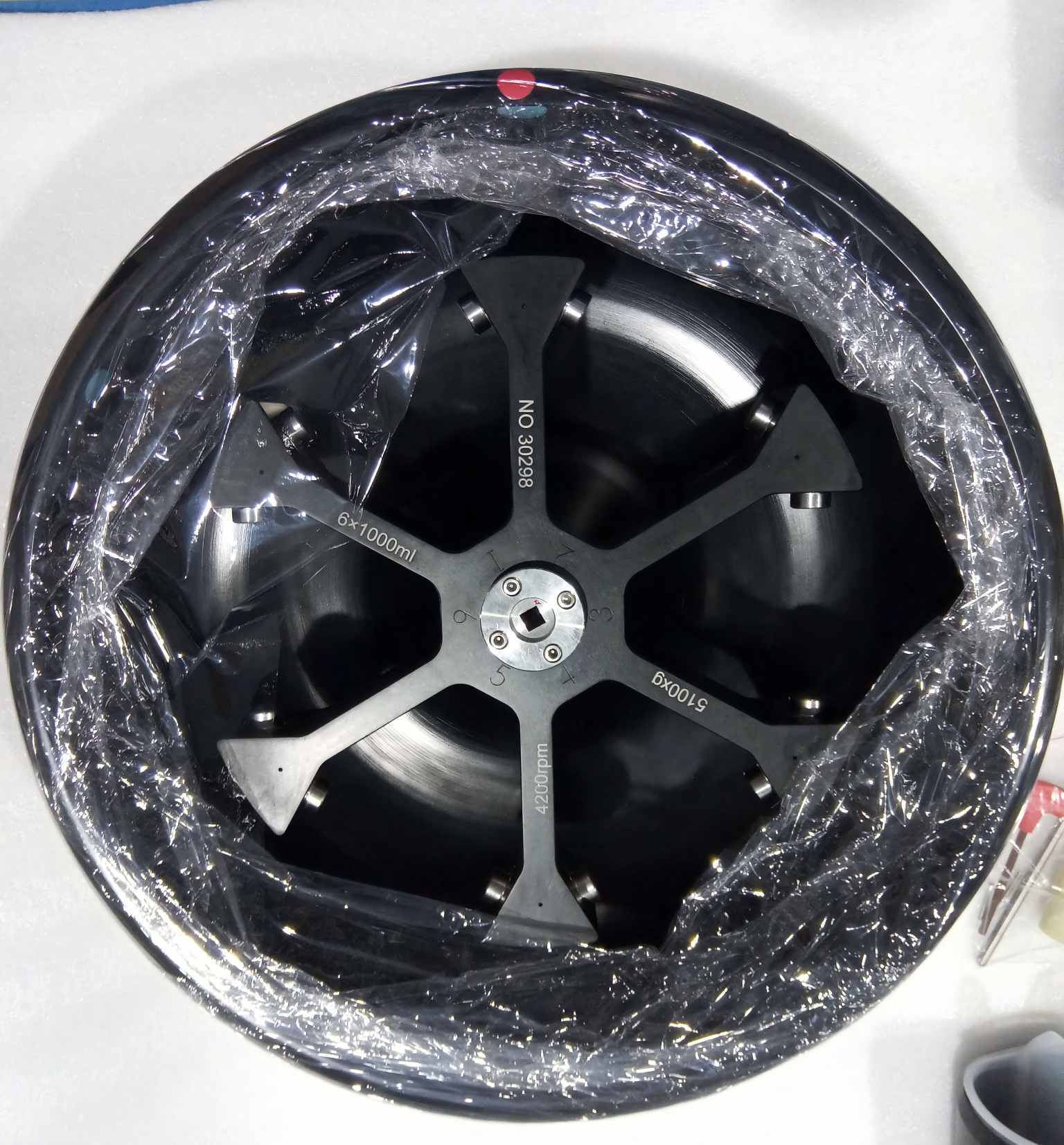

Swing-Out Rotors

Swing-out rotors hold sample containers in buckets that hang vertically when stationary and swing into a horizontal position during centrifugation.

This configuration provides excellent layer separation, making it particularly suitable for applications where distinct sample fractions are required.

Advantages:

Clear and uniform layer separation
Excellent recovery of plasma, serum, and other liquid phases
Compatible with various tube sizes, bottles, and microplates
Reduced disturbance of separated layers during sample collection
Easy observation and pipetting after centrifugation

Swing-out rotors are commonly used in clinical laboratories, blood processing, environmental testing, and routine sample preparation.

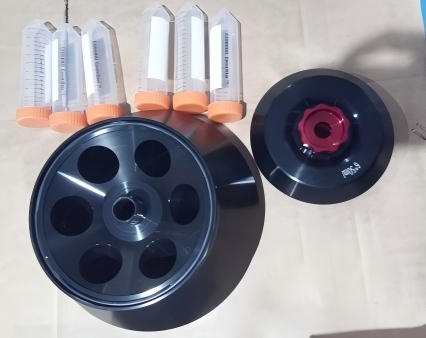

Fixed-Angle Rotors

Fixed-angle rotors hold tubes at a constant angle throughout centrifugation. Their design allows samples to travel a shorter distance before sedimentation, resulting in faster separation and higher centrifugal forces.

Advantages:

Higher maximum rotational speeds
Greater centrifugal force for rapid sedimentation
Shorter processing times
Stable operation during high-speed centrifugation
Simple structure with reduced maintenance requirements

Fixed-angle rotors are widely used for DNA and RNA extraction, protein purification, cell harvesting, microbiology, and molecular biology research.

Composite Fiber Rotors

Modern composite fiber rotors provide an alternative to traditional metal designs. Manufactured from advanced composite materials, these rotors combine lightweight construction with excellent mechanical strength and corrosion resistance.

Advantages:

Lightweight design for easier handling
Faster acceleration and deceleration
Reduced energy consumption
High resistance to corrosion and chemical exposure
Excellent fatigue resistance during repeated operation
Improved thermal insulation for temperature-sensitive samples
Long service life with lower maintenance costs

These advantages make composite fiber rotors an excellent choice for laboratories performing frequent or high-speed centrifugation.

Continuous Flow Rotors

Continuous flow rotors are designed for processing large volumes of liquid without stopping between batches. Instead of loading and unloading individual tubes, samples continuously flow through the rotor during operation.

Advantages:

High sample throughput
Continuous operation for improved efficiency
Suitable for large-scale sample clarification and cell harvesting
Consistent processing of large liquid volumes

Continuous flow systems are commonly used in biotechnology, vaccine production, fermentation, and industrial laboratory applications.

Zonal Rotors

Zonal rotors are designed for density gradient centrifugation, enabling highly accurate separation of particles according to their density.

During operation, samples migrate through a prepared density gradient until they reach their equilibrium position, allowing precise isolation of biological components.

Advantages:

High-resolution density gradient separation
Excellent reproducibility
Ideal for purification of viruses, organelles, proteins, and macromolecules
Suitable for both analytical and preparative applications

These rotors are frequently used in life science research, molecular biology, virology, and advanced biochemical studies.

Factors to Consider When Selecting a Rotor

Choosing the most appropriate rotor depends on several laboratory requirements, including:

Sample type and density
Tube or bottle size
Required centrifugal force
Maximum operating speed
Sample volume
Temperature control requirements
Frequency of use
Laboratory workflow

Matching the rotor to the application helps maximize productivity while maintaining sample quality and operational safety.

Proper Rotor Maintenance

Routine inspection and maintenance are essential for maintaining centrifuge performance.

Recommended practices include:

Inspect rotors regularly for signs of wear or corrosion.
Clean rotors immediately after use using appropriate laboratory cleaning solutions.
Dry thoroughly before storage.
Avoid exceeding maximum speed or load limits.
Follow manufacturer recommendations for inspection and replacement intervals.

Proper maintenance helps extend rotor lifespan while ensuring safe and reliable operation.

Conclusion

Although often overlooked, the rotor plays a decisive role in centrifuge performance. Different rotor designs are optimized for different laboratory applications, from routine clinical testing to advanced research and large-scale industrial processing.

Understanding the characteristics of swing-out, fixed-angle, composite fiber, continuous flow, and zonal rotors enables laboratories to select the most suitable configuration for their specific needs. Combined with proper maintenance and correct operating practices, the right rotor can significantly improve separation quality, laboratory efficiency, and long-term equipment reliability.
