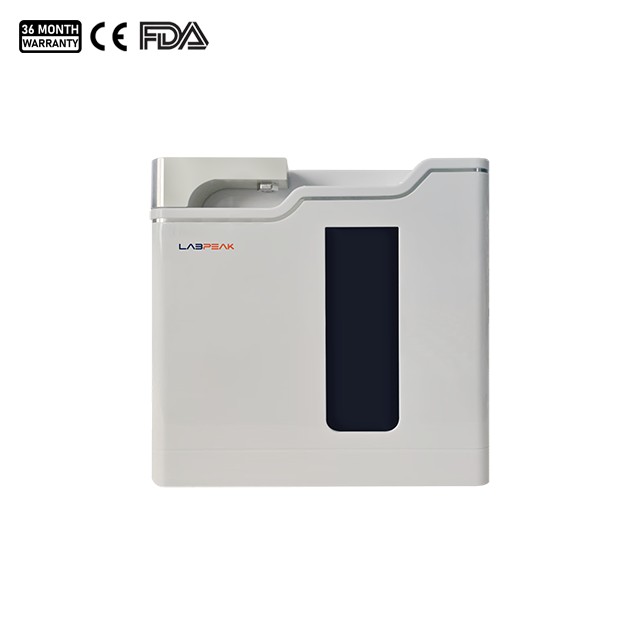

Deionized Water Purifier

The deionized water purifier is designed to provide tens of litres of deionised water to the laboratory every day.

  • Model: WPL-PD10E; WPL-PD20E; WPL-PD30E
  • Water Production Capacity (L/H): 10, 20, 30
  • Feed Water Request Tap water: TDS < 200 ppm
  • Water pressure: 0.1–0.4 Mpa, Water temperature: 5–45 ℃
  • Flow Rate: 1.5–2 L/min (with pressure barrel)

Share the product


Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Category:

Pre-treatment unit of ultra-pure water system; supply water for biochemical analyzers, electroplating, painting, battery charging, chip washing, microbial culture media, chemical & biochemical reagent preparation, buffer making, photographic film processing, stability test chambers, meteorological test equipment, hydrogen generators, and salt spray test chambers.

Deionized Water Purifier Feature:

  1. Low-voltage safety design, compliant with environmental regulations, lower overall energy consumption, and more energy-efficient operation.
  2. Intelligent control system: It provides real-time online water quality monitoring, making the water quality status clear at a glance.
  3. Multi-directional water inlet design of the unit allows for flexible installation layouts and adaptability to different laboratory spaces.
  4. Dual independent water outlets simultaneously produce pure water and ultrapure water to meet the needs of various water usage.
  5. Compact and lightweight body, ABS curved shell, small and space-saving, flexible placement.
  6. Standard configuration includes an 11-inch U-shaped high-efficiency filter cartridge with a well-designed flow channel, ensuring stable and long-lasting purification performance.
  7. Standard configuration includes a convenient TDS tester.
  8. Supports optional pressure water storage tanks of various sizes, highly expandable.

Deionized Water Purifier Specifications:

Model WPL-PD10E WPL-PD20E WPL-PD30E
Water Production Capacity (L/H) 10 20 30
Feed Water Request Tap water: TDS < 200 ppm, Water pressure: 0.1–0.4 Mpa, Water temperature: 5–45 ℃
Flow Rate 1.5–2 L/min (with pressure barrel)
RO Water Parameter The desalination rate reaches up to 95-99% (when using new RO membranes)
DI Water Parameter (ASTM Type I Grade Water)
Resistivity (25℃) 10–16 MΩ·cm @ 25 ℃
Conductivity <0.1 μS/cm
Heavy Metal Ion <0.1 ppb
Power Supply 110–240 V, 50–60 Hz, 48–72 W
External Size (W×D×H) 180×370×380 mm
Shipping Size (W×D×H) 450×450×930 mm
N.W/G.W 10/27 kg

Advantages of Deionized Water Purifier:

  1. Electricity rate of 0.1 μS/cm (25°C) ensures high purity of water, which is suitable for a variety of precision experiments.
  2. It can provide 10-30 litres of pure water per hour to meet the demand of large capacity water in the laboratory.
  3. Adopts high efficiency purification column to ensure the purity and stability of water quality.
  4. Compact design saves laboratory space.

Applications of Deionized Water Purifier:

  1. Provides ultrapure water for various molecular biology experiments.
  2. Suitable for all kinds of analytical chemistry experiments.
  3. Provide high purity water in electronic manufacturing processes to ensure product quality and process requirements.
  4. Suitable for other experiments and processes that require high purity water, such as pharmaceutical and food testing.

WHY Labpeak

  1. 24 Months Limited Warranty
  2. CE & FDA Standards
  3. 1-2 Days Handling and 7-30 Days Shipping

FAQ

How is deionized water purified?

In the deionization process, water is passed through a tank or cartridge containing resin beads with positive and negative charges. These beads attract and capture ions of the opposite charge, effectively removing them from the water. As the water flows through the system, the ions are left behind on the resin beads. This technique is known as ion exchange.

What’s the difference between RO and DI water purification?

RO (Reverse Osmosis) water purification uses a semipermeable membrane to remove impurities from water by applying pressure to force water molecules through the membrane, leaving contaminants behind. DI (Deionization) water purification uses ion-exchange resins to remove ions from water, producing highly pure water by exchanging ions with hydrogen and hydroxide ions.
