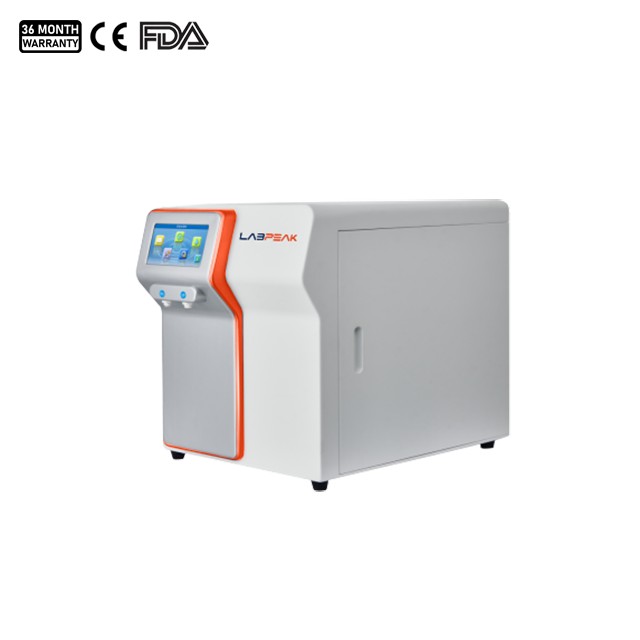

Intelligent Ultra Water Purifier is equipped with an intelligent control system and can be operated via a touchscreen interface. It is primarily used in laboratories with extremely high water quality requirements. Its applications include atomic absorption/emission spectroscopy, mass spectrometry, total organic carbon (TOC) detection, environmental monitoring, bio-chip development, and trace organic matter analysis.
Ultra Water Purifier Feature:
- 7-inch color smart touchscreen, real-time monitoring of all statuses, supports quick settings, forced rinsing, and bidirectional water inlet, offering intuitive and efficient operation.
- 3 channel online water quality monitoring system simultaneously displays the water quality and temperature of raw/RO/UPwater, with automatic early warning for exceeding standards.
- Real-time intelligent consumable life management optimizes operation and maintenance rhythm and avoids the risk of consumable failure.
- Rotating magnetic door and full-color label recognition system make filters and pipelines easily visible, allowing for quick and easy replacement and simplifying maintenance.
- Modular step-by-step purification process combined with large-capacity purification columns effectively extends consumable life, ensures continuous and stable ultrapure water supply.
- Fully-automatic RO membrane anti-scaling flushing system, combined with an integrated membrane module design and built-in sleep circulation flushing.
- Data black box and USB export function, supports historical data traceability and query. Combined with quantitative water intake and terminal micro-filtration to meet the compliance requirements of high-end experiments.
- Robust and integrated design, environmentally friendly and corrosion-resistant materials, water-electricity separation structure, suitable for harsh laboratory environments.
Ultra Water Purifier Specifications:
| Model |
WPL-PU10H |
WPL-PU15H |
WPL-PU20H |
WPL-PU30H |
WPL-PU45H |
WPL-PU60H |
| Water Production Capacity (L/H) |
10 |
15 |
20 |
30 |
45 |
60 |
| Feed Water Request |
Tap water: conductivity < 400 μs, 5–45 ℃, 0.02–0.25 Mpa, pH 3–10 |
| Flow Rate |
1.5–2 L/min (with pressure barrel) |
| RO Water Parameter |
| TDS |
RO water TDS (total solid solubility, ppm) ≤ influent TDS×1% (desalination rate ≥ 99%) |
| Soluble Organic Matter Retention Rate |
>99%(MW>300 Dalton) |
| Ion Rejection Rate |
>99% (when using a new RO membrane) |
| Organic Matter Rejection Rate |
>99%, when MW>200 Dalton |
| Inorganic ion Rejection Rate |
98–99% (when using a new RO membrane) |
| Particles and Bacterial Rejection |
>99%, when MW>200 Dalton |
| UP Water Parameter (ASTM Type I Grade Water) |
| Conductivity |
0.055 μs/cm @ 25℃ (< 0.1 μs/cm) |
| Resistivity |
>18.25MΩ.cm (25℃) |
| Heavy Metal Ion |
<0.01 ppb |
| Total Organic Carbon (TOC) |
<5 ppb |
| Bacteria |
<0.1 CFU/mL |
| Particulate Matter (> 0.1 microns) |
<1/mL |
| Pyrogen (endotoxin) |
N/A |
| DNases |
N/A |
| RNases |
N/A |
| Other Parameter |
| Maximum Water Production of Reverse Osmosis |
2.0 liters per minute (open pressure tank) |
| Work Stress Monitoring |
0–1 Mpa, 0–150 PSI |
| Digital Water Quality Monitoring |
Online monitoring of resistivity, conductivity, and water temperature |
| Power Supply |
100–240 V, 50–60 Hz, 120 W |
| External Size (W×D×H) |
420×595×550 mm |
| Shipping Size (W×D×H) |
655×540×690 mm |
| N.W./G.W. |
25/40 kg |
Advantages of Ultra Water Purifier:
- Pure water storage selection of 30L aseptic barrel, can be dynamically displayed and intelligent control of the water level.
- Aseptic barrel built-in dual-wavelength UV lamps, can effectively reduce the TOC content of water.
- Support to view the operation and alarm data at any time.
- Ultra-pure water circulation system can be freely selected automatically and manually, to maintain a low level of bacterial contamination of the system.
- System settings are password protected to prevent unauthorised changes and use.
- Equipped with primary water filtration system to increase the service life of the machine.
- Water shortage, water full alarm, source water, RO reverse osmosis water, DI deionised water/UP ultrapure water exceeds the alarm.
Applications of Ultra Water Purifier:
- WP-ULSH Series Life Science Type: Experiment fields such as electrophoresis, endotoxin analysis, cell immunity chemistry, nucleic acid and protein separation monoclonal antibody research.
- WP-UTOH Series Trace Organic Type: Graphite furnace atomic absorption spectrometry(GFAAS), gas chromatography and mass spectrum combination(GC-MS), high performance liquid chromatography (HPLC), inductive coupling plasma mass spectrum (ICP-MS), ion mass spectrum(IC), TOC analysis,solid-phase extraction(SPE)
- WP-UMBH Series Molecular Biology Type: Cultivation of mammal tissue cell, analysis of microorganism, research of molecular biology and cultivation of plant tissue cell
- WP-UBH Series Basic Type: Atomic absorption spectrum(AAS), atomic fluorescence normal chemistry, inductive coupling plasma spectrograph (ICP-AES)
