- Model : FFU-LP600; FFU-LP1200; FFU-LP1200Pro
- Air Velocity : 0.45 m/s±20%
- Filter : 1pcs Pre-filter, 1pc H14 HEPA filter
- Efficiency : ≥99.995% efficiency at 0.3 μm

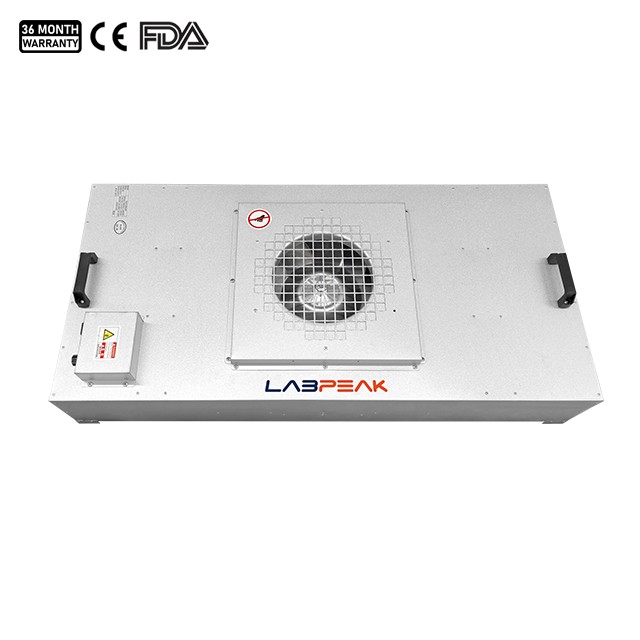

FFU (Fan Filter Unit)
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Feature:
- Separate FFU housing and HEPA filter design for quick installation and replacement.
- Microprocessor-based control ensures stable and energy-efficient operation.
- High-efficiency centrifugal fan with low noise, minimal vibration, maintenance-free performance, and stepless speed control; service life up to 100,000 hours.
- Can operate independently or be combined in series to form clean assembly lines up to Class 100.
Specification:
| Model | FFU-LP600 | FFU-LP1200 | FFU-LP1200Pro |
| External Size(W×D×H) (mm) | 575×575×250 | 1175×575×250 | 1175×1175×250 |
| Air Velocity | 0.45m/s±20% | ||
| Air Volume (m³/h) | 600~800 | 800~120 | 1800~2200 |
| Filter and Efficiency | 1pcs Pre-filter, 1pc H14 HEPA filter, ≥99.995% efficiency at 0.3μm | ||
| HEPA Filter Size (W×D×H)(mm) | 570×570×70 | 1170×570×70 | 1170×1170×70 |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | ||
| Sound Emission | ≤60 dB | ≤65 dB | |
| Shell Material | Aluminium coated zinc plate, anti-corrosion and light weight | ||
| Consumption (W) | 100 | 120 | 245 |
| Power Supply | AC 220 V±10%, 50/60 HZ; 110 V±10%, 60 Hz | ||
| Standard Accessory | Pre-filter×1, HEPA filter×1, Blower. | ||
| N.W. (kg) | 16 | 25 | 35 |
| G.W. (kg) | 25 | 35 | 55 |
| Shipping Size (W×D×H) (mm) | 800×800×500 | 1335×800×500 | 1335×1335×540 |
| Shipping Volume (m³) | 0.32 | 0.54 | 0.96 |
