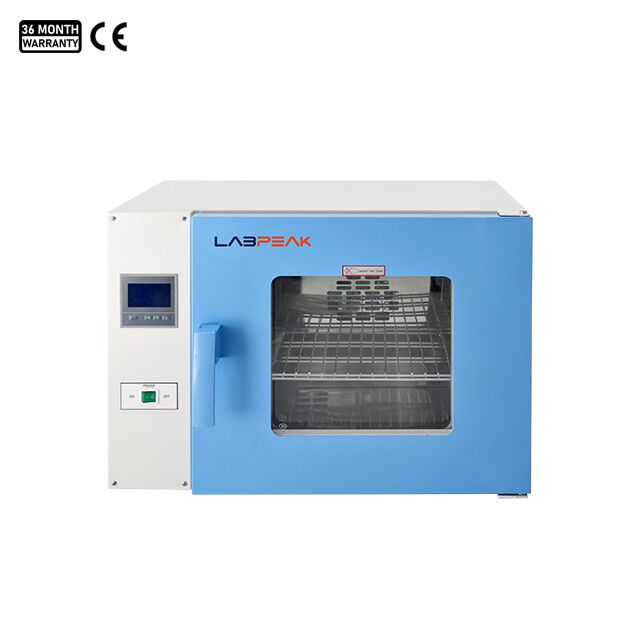

Hot Air Sterilizer, AE Series

Warning

/www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php

341

Hot Air Sterilizer Feature:

External Material: Made of cold-rolled steel with a powder-coated surface.
Inner Material: Constructed from SUS stainless steel.
Airflow Design: Rear air inlet and outlet configuration.
Control System: Equipped with an LCD PID temperature controller for accurate regulation, supporting both continuous and timed operation (0–9999 minutes).
Heating Element: Stainless steel tubular heating ring.
Chamber Design: Inner chamber features rounded corners for easy cleaning.
Shelving: Comes with pull-out shelves with adjustable spacing.
Door Structure: No internal glass door; outer door includes a viewing window.
Optional Features:
Independent over-temperature protection device
LCD temperature controller upgrade
LCD controller with micro dot matrix printer or RS485 communication interface

Hot Air Sterilizer Specifications:

Model		STL-PH25AE	STL-PH50AE	STL-PH80AE	STL-PH100AE	STL-PH180AE
Capacity (L)		25	50	80	105	180
Circulation		Forced air convection
Temperature	Range	RT + 10-250 ℃
	Fluctuation	±1
	Control Accuracy	0.1℃
	Uniformity	≤ Max operating temperature ±2.5%
Shelves		2
Safety Device		Over temperature alarm, Temperature probe damage alarm, Timing alarm
Electricity	Power supply	220/110 V, 50/60 HZ
Electricity	Consumption (W)	650	1000	1500	1600	2450
Size (WxDxH)	Internal (mm)	298×290×274	419×332×348	450×397×450	550×348×550	602×498×602
Size (WxDxH)	External (mm)	600×554×455	728×595×532	750×680×635	850×620×735	900×775×785
Shipping Size (WxDxH)(mm)		670×610×600	790×660×670	840×750×770	930×670×870	960×830×910
G.W. (kg)		37	50	62	78	89
