Vertical Freeze Dryer

Model: FDL-P18AS; FDL-P18AP; FDL-P18AT; FDL-P18APT; FDL-P18BS; FDL-P18BP; FDL-P18BT; FDL-P18BPT;
Freeze Drying Area (㎡): 0.18~0.27 / 0.18~0.27 / 0.18~0.27 / 0.18~0.27 / 0.09 / 0.09 / 0.09 / 0.09
Tray Size (ΦxH)(mm): Φ240×20
Condenser Temperature (℃): A: -60 / B: -80
Condenser Size (DiameterxH)(mm): Φ300×420
Vacuum Degree (no-loading) (Pa): ≤5

Share the product

Vertical Freeze Dryer Feature:

7 inches colorful touch panel can display the product sample’s temperature, condenser temperature and vacuum etc in digital and curve.
Touch panel with the design conforms to ergonomics and operate more comfortably.
Compact bench-top design with a small footprint.
USB data export for convenient user information management
Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing.

Reliability:

High performance compressor, cascade system, high cooling efficiency and fast cooling speed.
Condenser and operation panel are made by stainless steel.
Drying chamber is transparent which is visual and safe.

Optional:

Optional for gas interface: it can inject inert gas.
Optional for condenser electrical heating defrost function.
Optional for rack heating which is help to test in production.

Vertical Freeze Dryer Specification:

Model		FDL-P18AS	FDL-P18AP	FDL-P18AT	FDL-P18APT
		FDL-P18BS	FDL-P18BP	FDL-P18BT	FDL-P18BPT

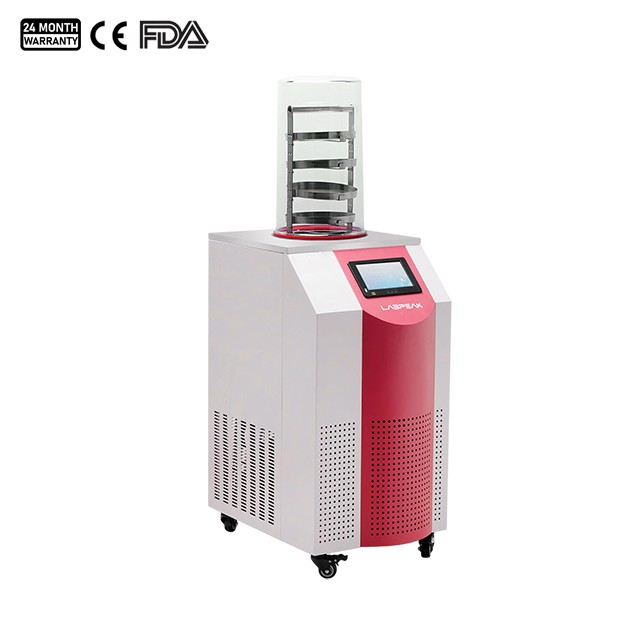

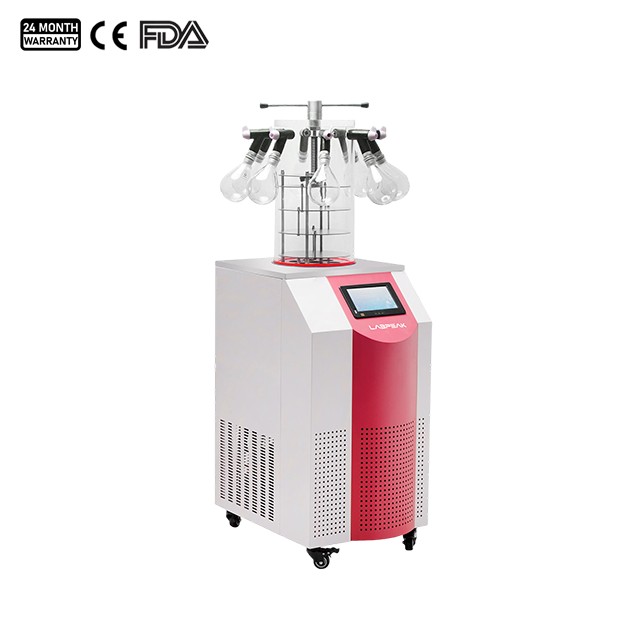

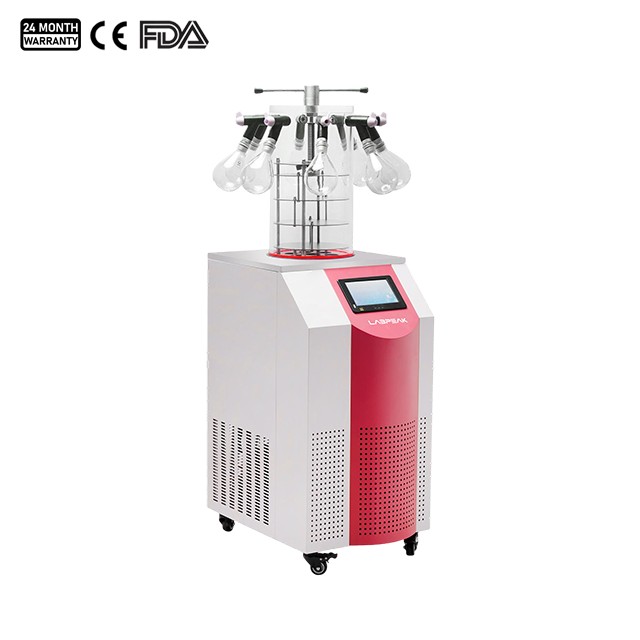

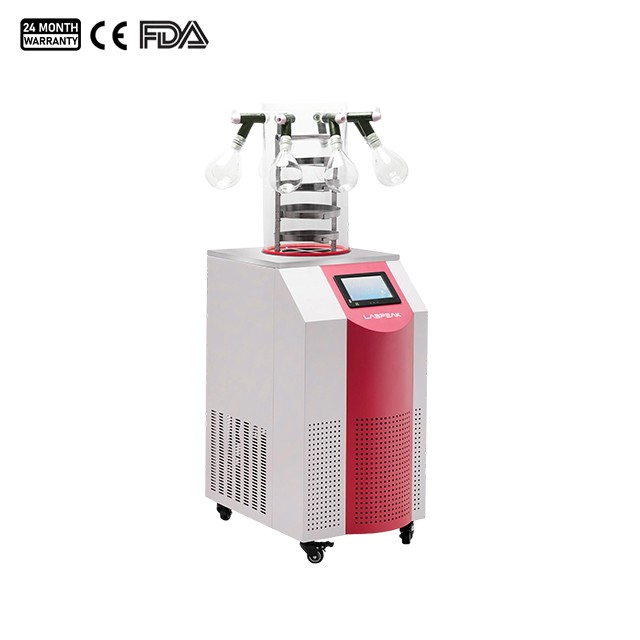

Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area (m²)		0.18~0.27	0.18~0.27	0.09	0.09
Tray (Qty)		4/6(Optional)pcs	4/6(Optional)pcs	3pcs	3pcs
Tray Size (DiameterxH)(mm)		Φ240×20	Φ200×20	Φ200×20	Φ200×20
Height Between Trays (mm)		81/51	81/51	71(average)	71(average)
Condenser Temperature (°C)		0.75	0.75	0.75	0.75
Condenser Capacity (L)		28	28	28	28
Condenser Size (DiameterxH)(mm)		Φ300×420	Φ300×420	Φ300×420	Φ300×420
Vacuum Degree (no-loading)(Pa)		≤5	≤5	≤5	≤5
Ice Condenser Capacity (kg/24h)		6	6	6	6
Loading Capacity/ Shelf (mL)		450	450	300	300
Total Loading Capacity (mL)		1800~2700	1800~2700	1350	1350
Drying Chamber Size (Standard)		Circle: Φ300mm; Height: Φ450mm
Total Qty. Of Vial Φ22		360	270	270	270
Total Qty. Of Vial Φ16		740	555	555	555
Total Qty. Of Vial Φ12		1320	990	990	990
Refrigerant		CFC-free
Standard Accessories		Vacuum pump 4L/s, 14.4m³/h, material tray, material rack, PC cover(for all modes); Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs (only for model P/PT)
Optional Function & Accessories		Electric defrost function, nitrogen gas filling valve, oil mist filter (for all models) 800mL wide-mouth flask (only for model P/PT)
Consumption		1.2kW(-60℃)/1.7kW(-80℃)
Electricity		AC220V/50Hz
External Size (WxDxH)(mm)		560x710x940/1390		560x710x940/1450
Shipping Size	Main Body	790x630x1180mm
(WxDxH)	Drying Chamber	410x410x640mm
(WxDxH)	Vacuum Pump	220x580x370mm
Gross Weight		150kg(-60℃)/170kg(-80℃)

Optional:

Optional for gas interface: it can inject inert gas.
Optional for condenser electrical heating defrost function.
Optional for rack heating which is help to test in production.

Stopper chamber	Standard stopper with 8 port manifolds	Standard chamber with 8 manifolds
Standard chamber	Stainless steel with 8 port manifolds	Valve and freeze drying bottle
Lsolation valve	24 EA drying shelf	Stainless steel drying chamber
