Vertical Freeze Dryer Feature:

7 inches colorful touch panel can display the product sample’s temperature, condenser temperature and vacuum etc in digital and curve.
Touch panel with the design conforms to ergonomics and operates more comfortably.
Compact bench-top design with a small footprint.
USB data export for convenient user information management
Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing.

Reliability:

High performance compressor, cascade system, high cooling efficiency and fast cooling speed.
Condenser and operation panel are made by stainless steel.
Freeze dryer’s drying chamber is transparent, which is visual and safe.

Optional:

Optional for gas interface: It can inject inert gas.
Optional for condenser electrical heating defrost function.
Optional for rack heating, which is help to test in production.

Vertical Freeze Dryer Specification:

Model		FDL-P12S	FDL-P12P	FDL-P12T	FDL-P12PT

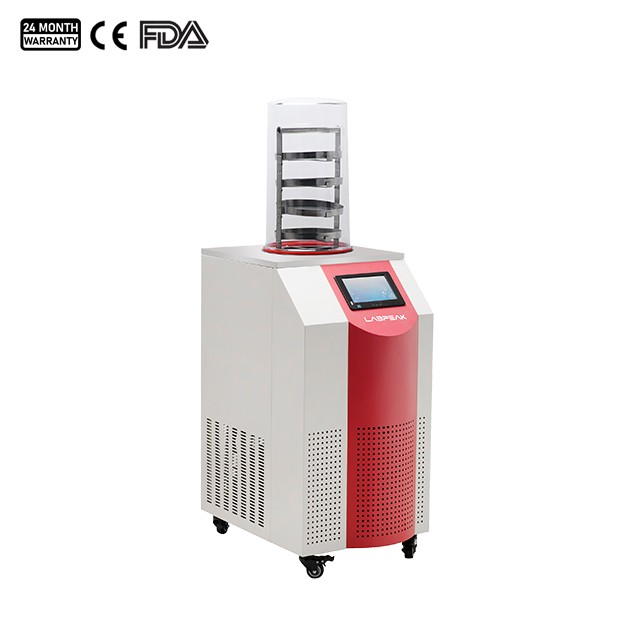

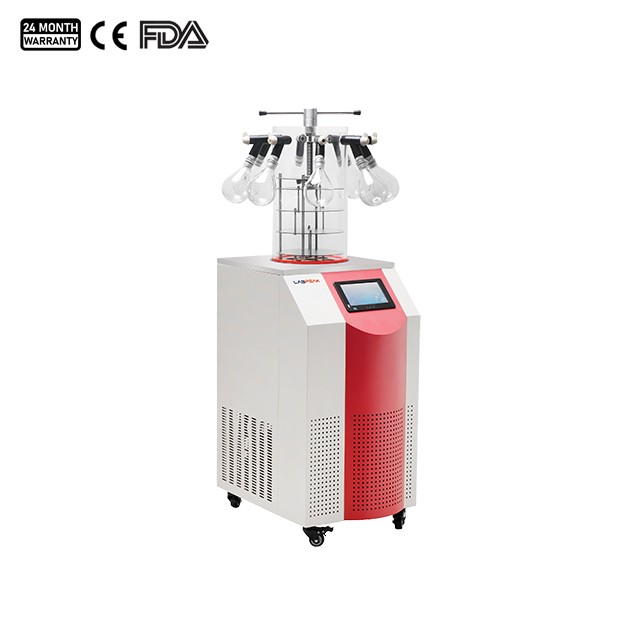

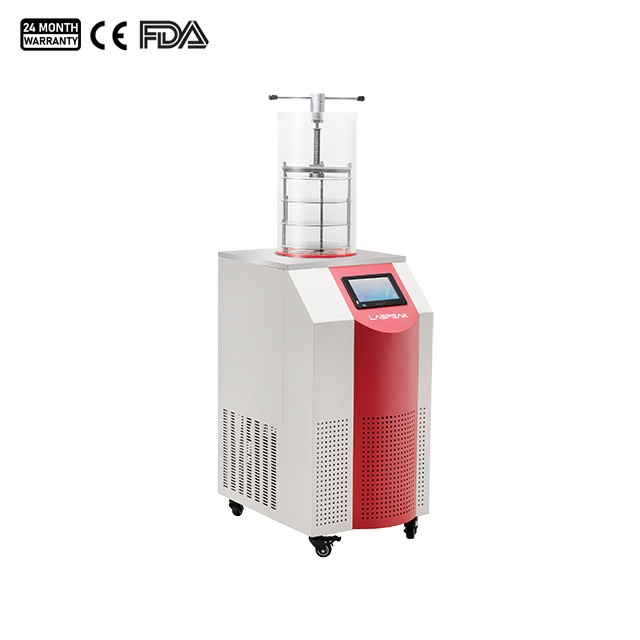

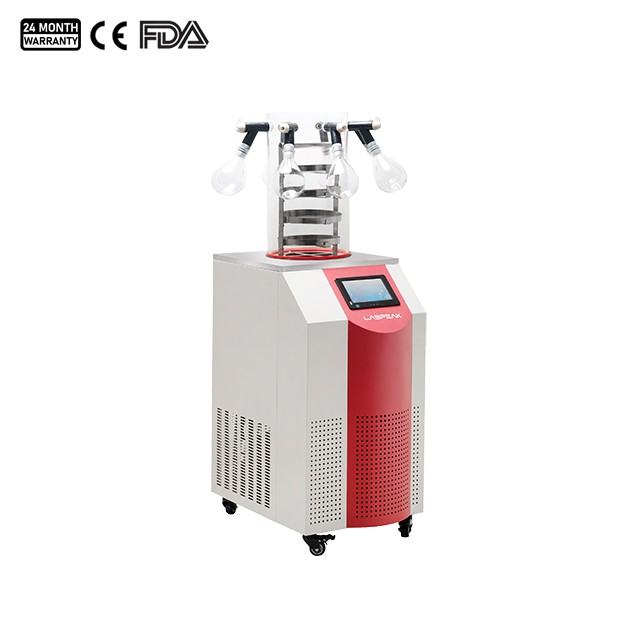

Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area (㎡)		0.12~0.18	0.12~0.18	0.09	0.09
Tray (Qty)		4/6(Optional)pcs	4/6(Optional)pcs	3pcs	3pcs
Tray Size (DiameterxH)(mm)		Φ200×20	Φ200×20	Φ200×20	Φ200×20
Height Between Trays (mm)		76/50	76/50	70(average)	70(average)
Condenser Temperature (℃)		0.75	0.75	0.75	0.75
Condenser Capacity (L)		9.5	9.5	9.5	9.5
Condenser Size (DiameterxH)(mm)		Φ217×250	Φ217×250	Φ217×250	Φ217×250
Vacuum Degree (No-loading) (Pa)		≤5	≤5	≤5	≤5
Ice Condenser Capacity (kg/24h)		4	4	4	4
Loading Capacity/Shelf (mL)		300	300	300	300
Total Loading Capacity (mL)		1200~1800	1200~1800	900	900
Drying Chamber Size (Standard)		Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
Total Qty. of Vial Φ22		260	260	195	195
Total Qty. of Vial Φ16		480	480	360	360
Total Qty. of Vial Φ12		920	920	690	690
Refrigerant		CFC-free
Standard Accessories		Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover(for all modes)
Standard Accessories		Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs(only for model 12P/PT)
Optional Function & Accessories		Electric defrost function, nitrogen gas filling valve, oil mist filter (for all models)
Optional Function & Accessories		800mL wide-mouth flask (only for model 12P/PT)
Consumption		0.95kW(-60℃)/1.5kW(-80℃)
Electricity		AC220V, 50Hz (standard); other electricity type can be customized
External Size(WxDxH)(mm)		480x610x905/1355		480x610x905/1415
Shipping Size (WxDxH)	Main Body	730x600x1180mm
	Drying Chamber	410x410x640mm
	Vacuum Pump	220x580x370mm
Gross Weight		135 kg (-60°C)/155 kg (-80°C)

中文

Stopper chamber	Standard stopper with 8 port manifolds	Standard chamber with 8 manifolds
Standard chamber	Stainless steel with 8 port manifolds	Valve and freeze drying bottle
Lsolation valve	24 EA drying shelf	Stainless steel drying chamber
