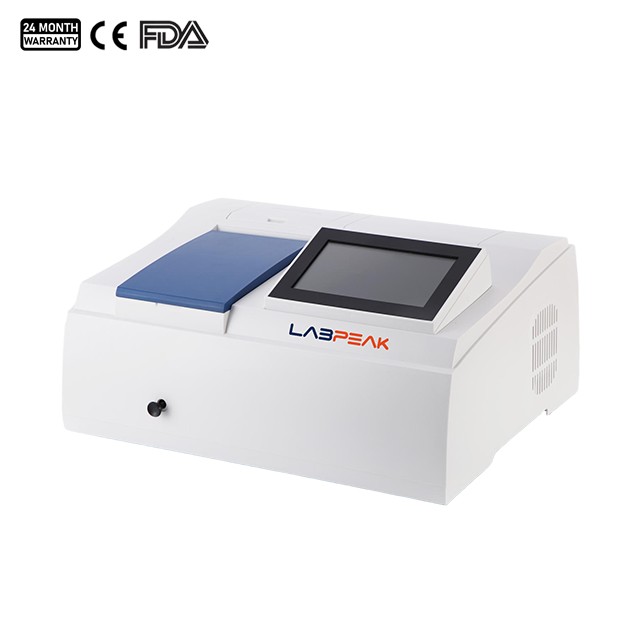

Visible Spectrophotometer, Single Beam

Visible Spectrophotometer, Single Beam

Models: SPL-PV2; SPL-PV2S
Photometry: Single Beam
Focal Length: 160 mm
Grating: 1200 lines/mm
Detector: Silicon Photocell
Spectrum Bandwidth: 2.0 nm

Share the product

Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341

Category: Visible Spectrophotometer

Details

Visible Spectrophotometer Feature:

1.7″ color touchscreen with clear display and intuitive operation
Built-in thermal printer for instant result output (SPL-PV2S only)
USB interface with optional UVWIN8 software for data processing and storage
Automatic wavelength setting for fast, accurate operation
Supports scanning, kinetics, regression, direct concentration readout, and peak detection (SPL-PV2S only)
Power-loss protection with data, calibration, and parameter memory

Visible Spectrophotometer Specification:

Model	SPL-PV2S	SPL-PV2
Photometry	Single Beam
Monochromator Type	Czerny-Turner
Focal Length	160 mm
Grating	1200 lines/mm
Detector	Silicon Photocell
Spectrum Bandwidth	2 nm
Wavelength Setting	7-inch color touch-screen
Wavelength Range	325-1100 nm
Wavelength Accuracy	±1 nm
Wavelength Repeatability	≤0.5 nm
Scanning Speed	Fast-Medium-Slow
Stray Light	≤0.1% T (at 360 nm NaNo2)
Photometric Range	0.0-200.0% T;
	-0.301-4.000 A;
	0.000-9999 C;
Photometric Accuracy	±0.5% T;
	±0.004 Abs (0-0.5 A);
	±0.008 Abs (0.5-1 A);
Photometric Repeatability	≤0.2% T;
	0.002 Abs (0-0.5 A);
	0.004 Abs (0.5-1 A);
Noise	100%(T) noise≤0.2%(T);
Noise	0%(T) noise≤0.1%(T);
Power	AC 220±22 V, 50±1 Hz, 100 W
Standard Accessories	Operation manual 1pc;
	Glass cuvette 10mm 4pcs;
	Power cable 1pc;
	Fuse 2pcs;
	Cuvette holder 10mm 1pc;
Optional Accessories	UV WIN8 station pro software;
	Cuvette holder 50; 100 mm;
	Cuvette 20; 30; 50; 100 mm;
External Size (W×D×H)	480×370×240 mm
Shipping Size (W×D×H)	650×525×400 mm
N.W/G.W. (kg)	11.8 / 16.3	12/16.5
