- Models: SPL-PVG722; SPL-PVGI721; SPL-PVG721
- Wavelength Range: 325-1000nm, 340-1000nm
- Wavelength Accuracy: ±2nm
- Photometric Accuracy: ±0.5%T
- Size(W×D×H)(mm): 400x300x200

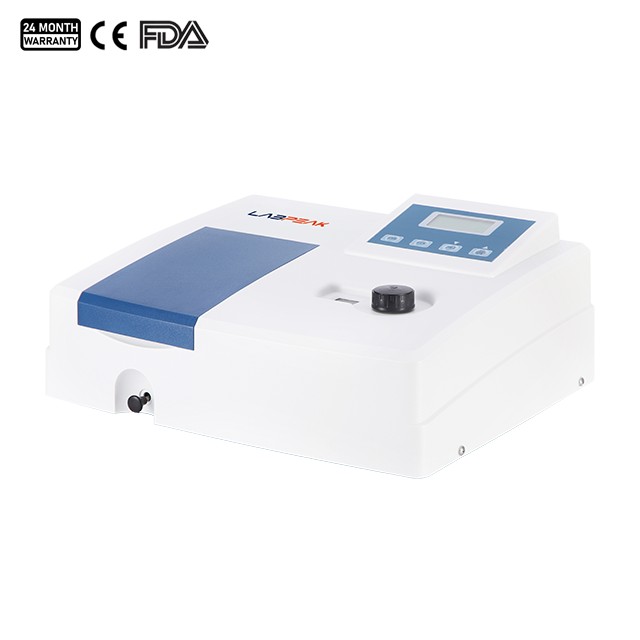

Visible Spectrophotometer, Spectrum Bandwidth 5nm
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.labpeak.com/wp-includes/class-wp-hook.php on line 341
Visible Spectrophotometer Feature:
- Sample chamber accommodates cuvettes from 5–100 mm
- Accurate automatic transmittance/absorbance (T/A) conversion
- RS232 interface for data communication
- Direct concentration display with adjustable factor
- Auto zeroing and full-scale calibration
- Includes standard software (SPL-PVG721)
- Optional dedicated printer (SPL-PVGI721)
Visible Spectrophotometer Specification:
| Model | SPL-PVG722 | SPL-PVGI721 | SPL-PVG721 |
| Photometry | Single Beam | ||
| Monochromator Type | Czerny-Turner | ||
| Detector | Silicon Photocell | ||
| Wavelength Setting | Manual Turn Knob | ||
| Wavelength Range | 325-1000nm | 340-1000nm | |
| Wavelength Accuracy | ±2nm | ||
| Wavelength Repeatability | ≤1nm | ||
| Spectrum Bandwidth | 5nm | ||
| Stray Light | ≤0.5%T (at 360nm NaNo2) | ||
| Photometric Range | 0-100.0%T | ||
| 0-1.999A | |||
| 0-1999C | |||
| Photometric Accuracy | ±0.5%T | ||
| Photometric Repeatability | ≤0.2%T | ||
| Noise | 100% (T) noise ≤0.3% (T), 0% (T) noise ≤0.2% (T) | ||
| Drifting | ±0.5 %T/3min | ||
| Cuvette Holder Size | 50mm | 100mm | 50mm |
| Power | AC220V±22V; 50Hz±1Hz, 50W | ||
| Size(W×D×H)(mm) | 400x300x200 | ||
| Shipping Size(W×D×H)(mm) | 560x500x300 | ||
| N.W./G.W. (kg) | 13/15 | ||
