- Model: VSCL-PRV1; VSCL-PHA1; VSCL-PHB1; VSCL-PRV2; VSCL-PHA2; VSCL-PHB2
- Rotational Speed (rpm): 0.3–100 rpm (37 selectable speeds), 0.1–200 rpm (58 selectable speeds)
- Accuracy: ±1.0% (Newtonian Fluids)
- Repeatability: ±0.2% (Newtonian Fluids)
- Resolution: 0.1% of Full Scale

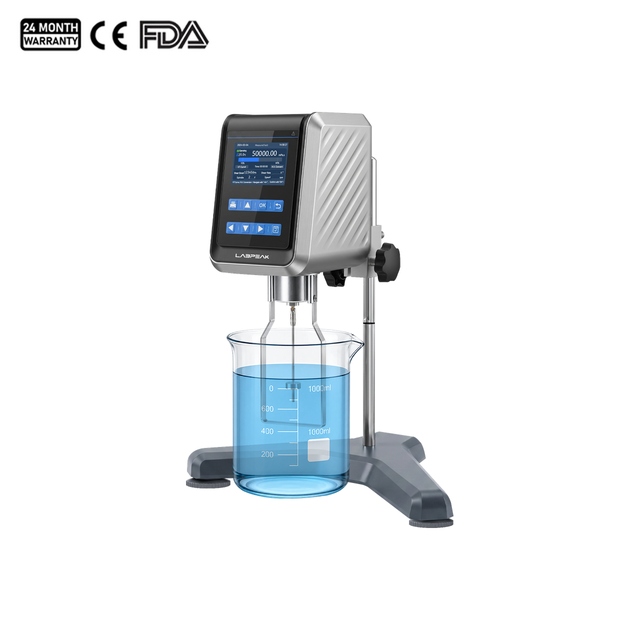

High-Viscosity Viscometer
Application:
High-Viscosity Viscometer is used for accurate detection of medium to high-viscosity fluids and are suitable for various industries such as chemical, coating, ink, food, pharmaceutical, and new materials.
High-Viscosity Viscometer Feature:
- 3.5″ High-resolution color touchscreen, the intuitive interface allows for easy operation without complex training.
- High repeatability of up to ±0.2% ensures highly consistent and reliable test results every time.
- Supports real-time dynamic plotting of viscosity-temperature curves, visually presenting the thermorheological behavior of samples at different temperatures.
- Innovative automatic scanning function recommends the optimal spindle and speed combination with a single click, significantly improving testing efficiency.
- Supports local data storage, direct report printing, and quick export via USB.
- Connects to dedicated software via RS232 interface to unlock remote control, real-time data acquisition, and in-depth historical record management.
High-Viscosity Viscometer Specification:
| Model | VSCL-PRV1 | VSCL-PHA1 | VSCL-PHB1 | VSCL-PRV2 | VSCL-PHA2 | VSCL-PHB2 |
| Display | 3.5″ Full-Color IPS Screen | |||||
| Viscosity Range (mPa·s) | 6.4–1.3×10⁷ | 12.8–2.6×10⁷ | 51.2–1.04×10⁸ | 3.2–4×10⁷ | 6.4–8×10⁷ | 25.6-3.2×10⁸ |
| Rotational Speed (rpm) | 0.3–100 rpm (37 selectable speeds) | 0.1–200 rpm (58 selectable speeds) | ||||
| Accuracy | ±1.0% (Newtonian Fluids) | |||||
| Repeatability | ±0.2% (Newtonian Fluids) | |||||
| Resolution | 0.1% of Full Scale | |||||
| Standard Spindle | Spindle Set R2, R3, R4, R5, R6, R7 | |||||
| Optional Spindle | No.0 Spindle, Small Sample Spindle Set (#21/#27/#28/#29) | |||||
| Measuring Mode | Quick / Timed / Auto-Scan | |||||
| Temperature Sensor | Standard | |||||
| Data Storage | 50 | |||||
| Interface | USB + RS232 | |||||
| Function | 1. Routine Measurement; | |||||
| 2. Unit Conversion; | ||||||
| 3. Data Logging; | ||||||
| 4. Printing; | ||||||
| 5. Viscosity Curve; | ||||||
| Power Supply | AC 100–240V, 50/60 Hz | |||||
| External Size (W×D×H) | 370×275×400 mm | |||||
| Shipping Size (W×D×H) | 450×370×225 mm | |||||
| N.W./G.W. | 3.8/6 kg | |||||
| Operating Environment | 0–40°C, 20%–80% RH | |||||
