- Model: VSCL-P5SL; VSCL-P8SL; VSCL-P9SL; VSCL-P5SN; VSCL-P8SN; VSCL-P9SN; VSCL-P1NL; VSCL-P2NL; VSCL-P3NL; VSCL-P5SU; VSCL-P8SU; VSCL-P9SU
- Display 3.5″ Full-Color IPS Screen
- Accuracy ±2% (Newtonian Fluids) ±1% (Newtonian Fluids)
- Repeatability ±1% (Newtonian Fluids) ±0.5% (Newtonian Fluids)

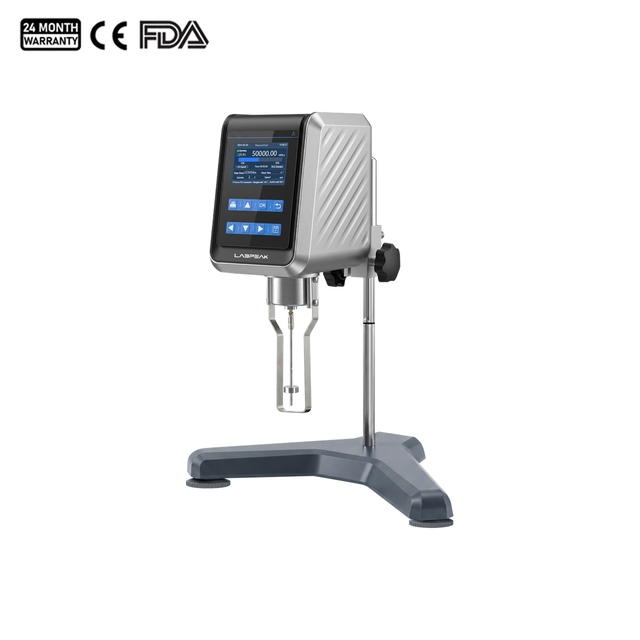

Viscometer
Application:
Meets the requirements for accurate viscosity measurement of Newtonian fluids and apparent viscosity testing of non-Newtonian fluids.
Whether for laboratory research or industrial batch quality inspection, its high sensitivity and stable, reliable performance make it a powerful tool for your daily viscosity analysis.
Viscometer Feature:
1. Full-color IPS LCD screen with millisecond-level response touch interaction for clear and intuitive operation.
2. Self-developed constant frame algorithm, repeatability error ≤ ±0.5%, measurement accuracy ≤ ±1%.
3. Self-developed planetary measurement structure, measurement efficiency increased by 300%, significantly shortening single test time.
4. Imported PT1000 sensor chip for more precise temperature control.
5. RS232 + USB dual communication interfaces for seamless workflow integration.
6. Upgraded hardness and optimized wear-resistant process ensure excellent stability even during long-term operation.
Selection Guide:
| Series | Positioning | Suitable Sample | Key Function | Recommended Application |
| VSCL-PSL | Basic viscosity testing | Routine Newtonian liquids & generalnon-Newtonianfluids | Routine testing, Unit conversion, Optional printing | Routine laboratory testing, Educational labs, Basic quality control (QC) |
| VSCL-PSN | Routine testing with output | Medium-to high-viscosity samples requiring temperature monitoring & data recordig | Quick / Timed / Auto-Scan modes, Standard temperature probe, Data logging, USB & RS232 interfaces | Laboratories requiring data storage and output capabilities |
| VSCL-PNL | Advanced viscosity testing | Routine to high-viscosity samples with higher requirements for data management | Viscosity sampling, Data logging, Viscosity conversion, Printing function, USB & RS232 interfaces | R&D laboratories, Quality control (QC) departments, Process viscosity control |
| VSCL-PSU | High-viscosity fluid analysis | Fluid Analysis High-viscosity samples, Complex non-Newtonian fluids, Formulation samples | Quick / Timed / Auto-Scan modes, Real-time viscosity curves, Data logging, Temperature probe, USB & RS232 interfaces | R&D, Formulation development, Advanced laboratory analysis |
Viscometer Specification:
| VSCL-PSL Series | VSCL-PSN Series | VSCL-PNL Series | VSCL-PSU Series | |||||||||
| Model | VSCL-P5SL | VSCL-P8SL | VSCL-P9SL | VSCL-P5SN | VSCL-P8SN | VSCL-P9SN | VSCL-P1NL | VSCL-P2NL | VSCL-P3NL | VSCL-P5SU | VSCL-P8SU | VSCL-P9SU |
| Display | 3.5″ Full-Color IPS Screen | |||||||||||
| Viscosity Range (mPa·s) | 1–100,000 | 1–2,000,000 | 1–6,000,000 | 1–100,000 | 1–2,000,000 | 1–6,000,000 | 1–100,000 | 1–2,000,000 | 1–6,000,000 | 1–100,000 | 1–2,000,000 | 1-6,000,000 |
| Rotational Speed (rpm) | 6/12/30/60 | 0.3/0.6/1.5/3 /6/12/30/60 | 0.1/0.3/0.6/1.5 /3/6/12/30/60 | 6/12/30/60 | 0.3/0.6/1.5/ 3/6/12/30/60 | 0.1/0.3/0.6/1.5/ 3/6/12/30/60 | 6/12/30/60 | 0.3/0.6/1.5/ 3/6/12/30/60 | 0.1/0.3/0.6/1.5/
3/6/12/30/60 |
6/12/30/60 | 0.3/0.6/1.5/3/6/12/30/60 | 0.1/0.3/0.6/1.5/3 /6/12/30/60 |
| Accuracy | ±2% (Newtonian Fluids) | ±1% (Newtonian Fluids) | ±1% (Newtonian Fluids) | ±1% (Newtonian Fluids) | ||||||||
| Repeatability | ±1% (Newtonian Fluids) | ±1% (Newtonian Fluids) | ±1% (Newtonian Fluids) | ±0.5% (Newtonian Fluids) | ||||||||
| Resolution | 0.01 mPa·s | 0.01 mPa·s | 0.01 mPa·s | 0.01 mPa·s | ||||||||
| Standard Spindle | Spindle Set L1, L2, L3, L4 | Spindle Set L1, L2, L3, L4 | Spindle Set L1, L2, L3, L4 | Spindle Set L1, L2, L3, L4 | ||||||||
| Optional Spindle | No.0 Spindle (1–100 mPa·s) | No.0 Spindle (1–100 mPa·s) | No.0 Spindle (1–100 mPa·s) | No.0 Spindle (1–100 mPa·s) | ||||||||
| Measuring Mode | Quick | Quick / Timed / Auto-Scan | Quick / Timed / Auto-Scan | Quick / Timed / Auto-Scan | ||||||||
| Temperature Sensor | Optional | Standard | Standard | Standard | ||||||||
| Data Storage | / | 50 | 50 | 50 | ||||||||
| Interface | Printer (Optional) | USB + RS232 | USB + RS232 | USB + RS232 | ||||||||
| Function | 1. Routine Measurement; 2. Unit Conversion; |
1. Routine Measurement; 2. Unit Conversion; 3. Data Logging; 4. Printing; |
1. Routine Measurement; 2. Unit Conversion; 3. Data Logging; 4. Printing; |
1. Routine Measurement; 2. Unit Conversion; 3. Data Logging; 4. Printing; 5. Viscosity Curve; |
||||||||
| Power Supply | 100–240V, 50/60Hz | |||||||||||
| External Size (W×D×H) | 370×275×400 mm | |||||||||||
| Shipping Size (W×D×H) | 450×370×225 mm | |||||||||||
| N.W./G.W. | 3.8/6 kg | |||||||||||
| Operating Environment | 0–40°C, 20%–80% RH | |||||||||||
